Mamiya DSX - Page 25

Tal
Tweezer-———j |. |
as
IX
il
0.15e00.25
TL14575
Fig. 6
ze.

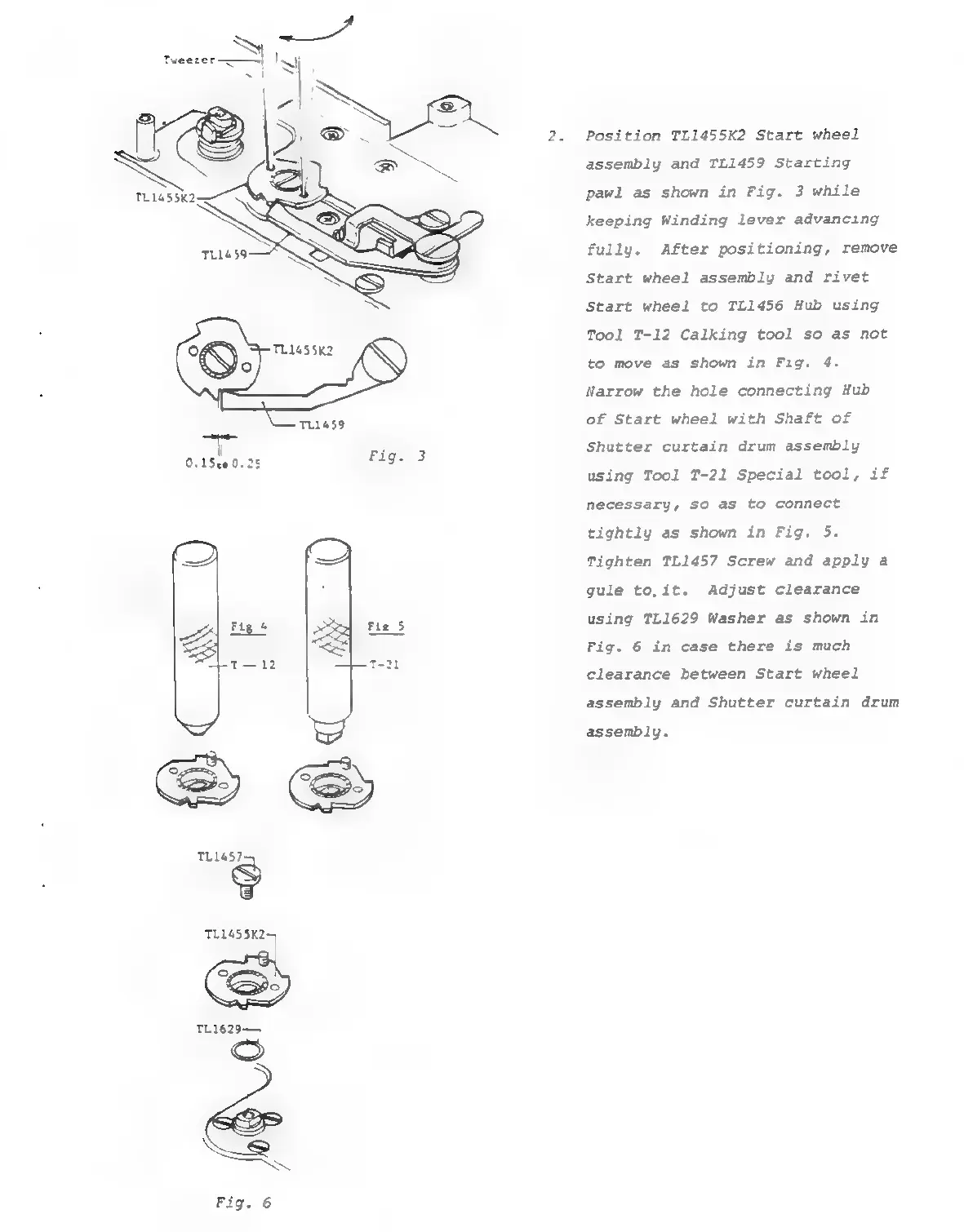

Position TL1455K2 Start wheel
assembly and TL1459 Starting
pawl as shown in Fig. 3 while
keeping Winding lever advancing
fully. After positioning, remove
Start wheel assembly and rivet
Start wheel to TL1456 Hub using
Tool T-12 Calking tool so as not
to move as shown in Fig. 4.
Narrow the hole connecting Hub
of Start wheel with Shaft of
Shutter curtain drum assembly
using Tool T-21 Special tool, if
necessary, so as to connect
tightly as shown in Fig. 5.
Tighten TL1457 Screw and apply a
gule to,it. Adjust clearance
using TL1629 Washer as shown in
Fig. 6 in case there is much
clearance between Start wheel
assembly and Shutter curtain drum
assembly.
