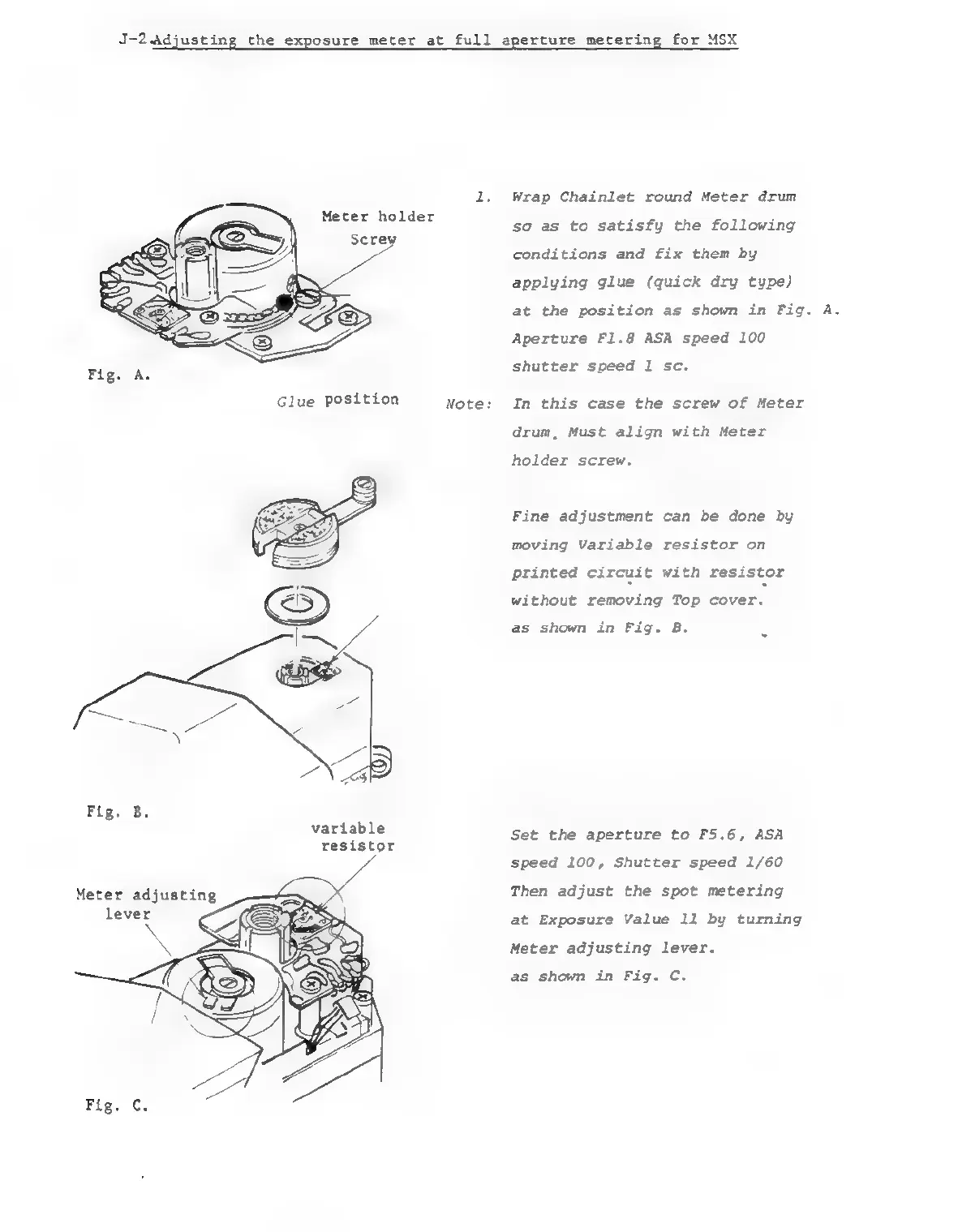

J-2 Adjustin,
the exposure meter at full aperture metering for MSX
Fig. B.
lever
Meter adjusting \
}
FZ Ss gd
Meter holder
Screw
variable
resistor
—\ a
>
Note:
Wrap Chainlet round Meter drum
so as to satisfy the following
conditions and fix them by
applying glue (quick dry type)
at the position as shown in Fig.
Aperture F1.8 ASA speed 100
shutter speed 1 sc.
In this case the screw of Meter
drum, Must align with Meter
holder screw.
Fine adjustment can be done by
moving Variable resistor on
printed circuit with resistor
without removing Top cover.
as shown in Fig. B.
Set the aperture to F5.6, ASA
speed 100, Shutter speed 1/60
Then adjust the spot metering
at Exposure Value 11 by turning
Meter adjusting lever.
as shown in Fig. C.
