Mamiya RB67 Pro-SD Operation Diagram
Attaching a lens with the shutter
released or the mirror raised
When a lens is removed from the body, the
mirror is set (lowered) and the lens shutter
cocked. Conversely, when attaching a lens,
the same conditions should prevail (mirror set
and shutter cocked). However, should a lens
be attached with either the mirror raised or
shutter released, or both, the camera can be
reset by following the procedures outlined
below.
1. If the mirror is raised (regardless of whether
the lens shutter is cocked or released), simply
depress the Cocking Lever to reset the cam-
era.
2. If the mirror is set and lens shutter released
(closed), remove the Dark Slide from the Film
Holder and depress the Shutter Release But-
ton (the film will not be exposed). Next,
depress the Cocking Lever
to reset the cam-
era.

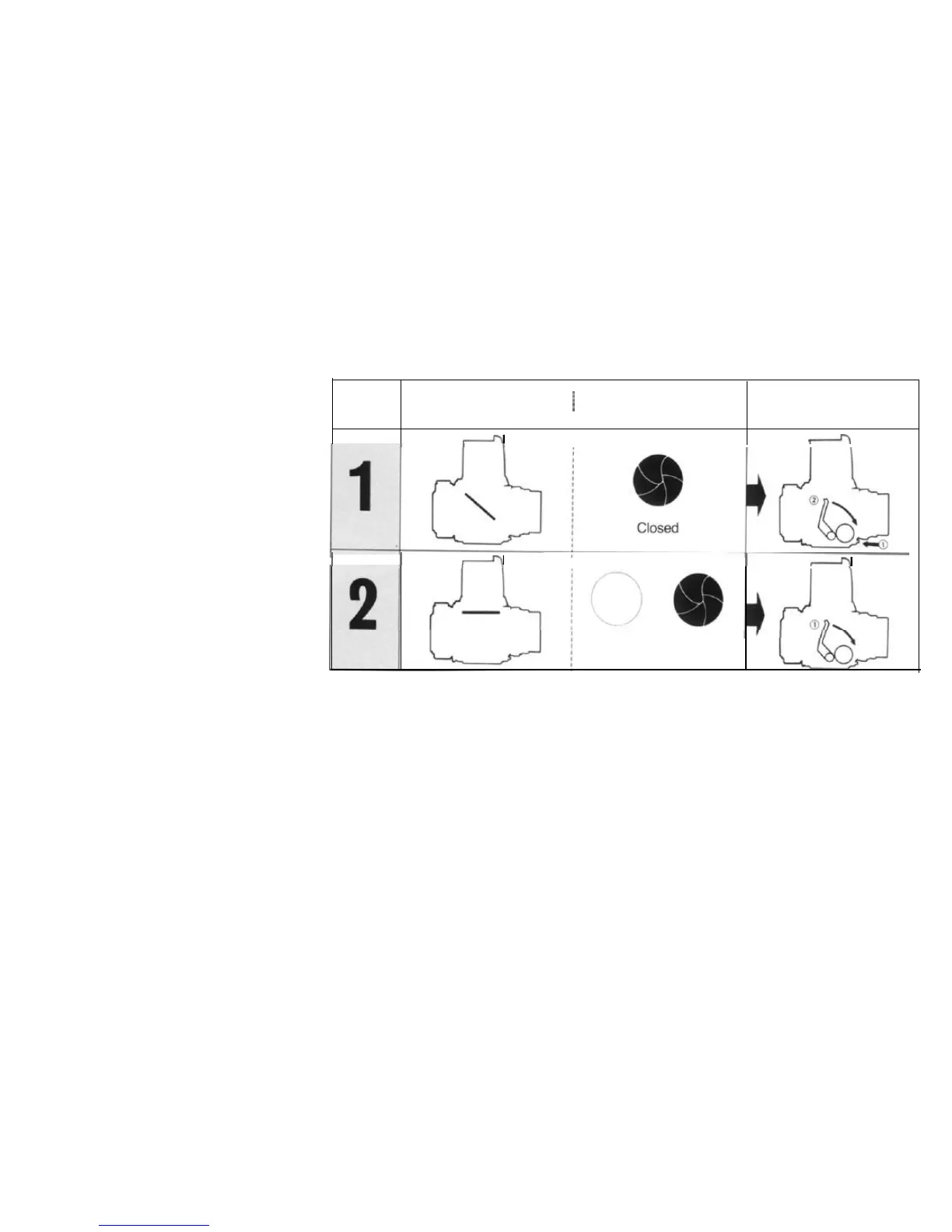

Mirror condition
/
Shutter blade condition
Operation
-
4
I
I
-
I
-
Opened or Closed
