Transmitters
122
Checking the exhaust gas temperature transmitter by measuring the voltage
0
5
10
15
20
25
30
35
0 50 100 150 200 250 300 350 400 450 500 550 600
mV
_C

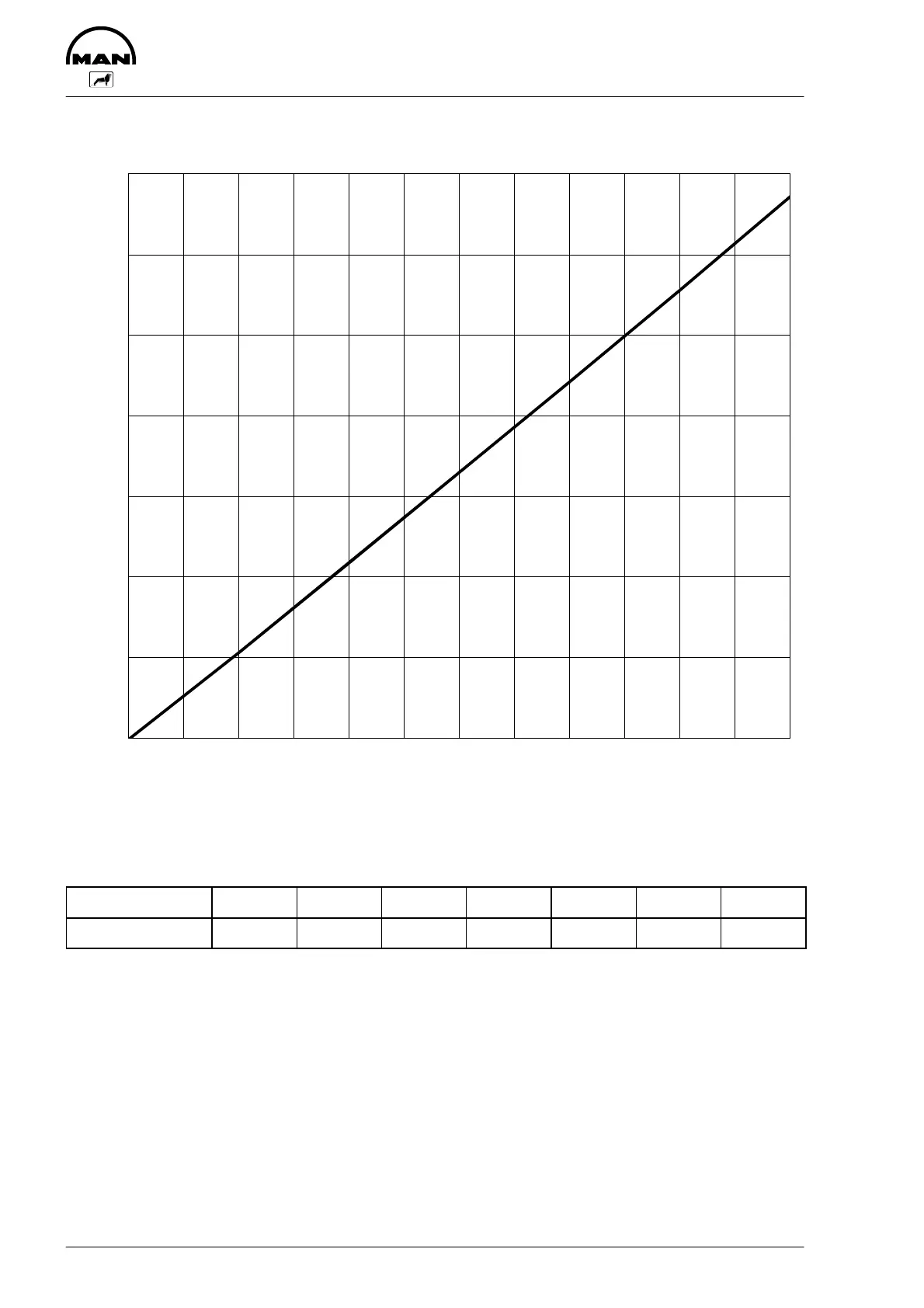

If the exhaust gas temperature transmitter is to be checked, the exhaust gas temperature must be measu-
red with a second, independent instrument. Disconnect the gauge from the transmitter. Measure the vol-
tage and compare it with the calibrated curve (_F = 1.8_ C + 32).
Temperature _C 0 100 200 300 400 500 600
Voltage mV 0 5.37 10.95 16.56 22.16 17.85 33.67
