Installation
39
Carefully read the Assembly Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.
5.5 Installing Engine in a Cogeneration Power Station
NOTE!
Before placing the engine in the plant with the aid of the installation drawing, check whether
the interface dimensions of the lines (coolant, exhaust, etc.) to the connections at the
engine fit.
WARNING!
Protective equipment is installed on the engine for safety reasons to prevent the
touching of hot or rotating parts (contact protection of exhaust manifold (hot!)) and
on the front side of the engine (rotating crankshaft!)
For this reason:
S This protective equipment must not be removed!
5.5.1 Bolting Engine to Base Frame

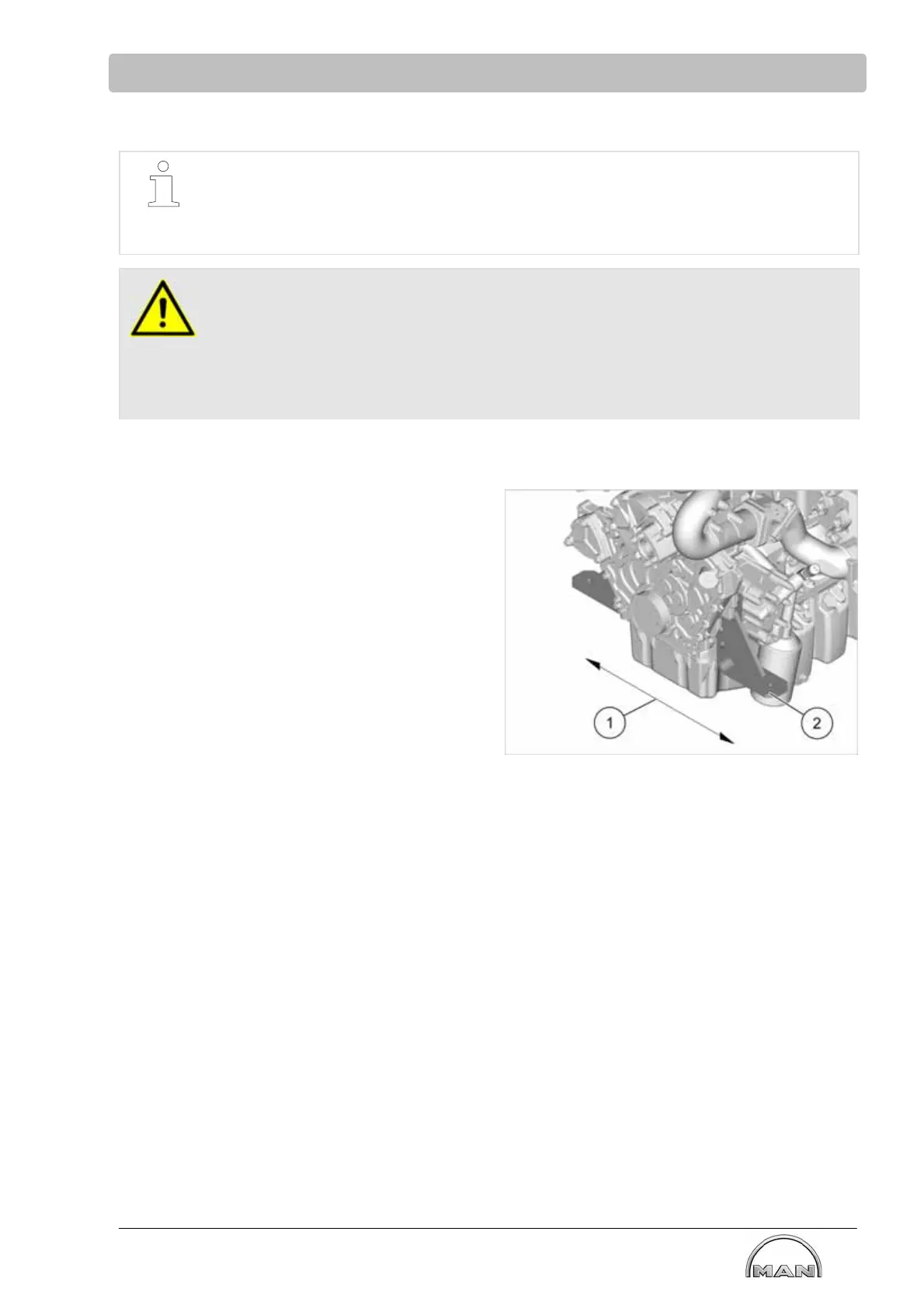

The installation drawing gives information on the
location and drilling pattern (1) of the engine
mounts. Mounting of the generator is to be made
by the plant manufacturer.
1. Place engine and generator on base frame
(using resilient mounts where applicable).
2 Bolt engine mounts and generator mounts to
the base frame. The bolt diameter (2) is
specified in the installation drawing.
