5.6 Installing Cooling System

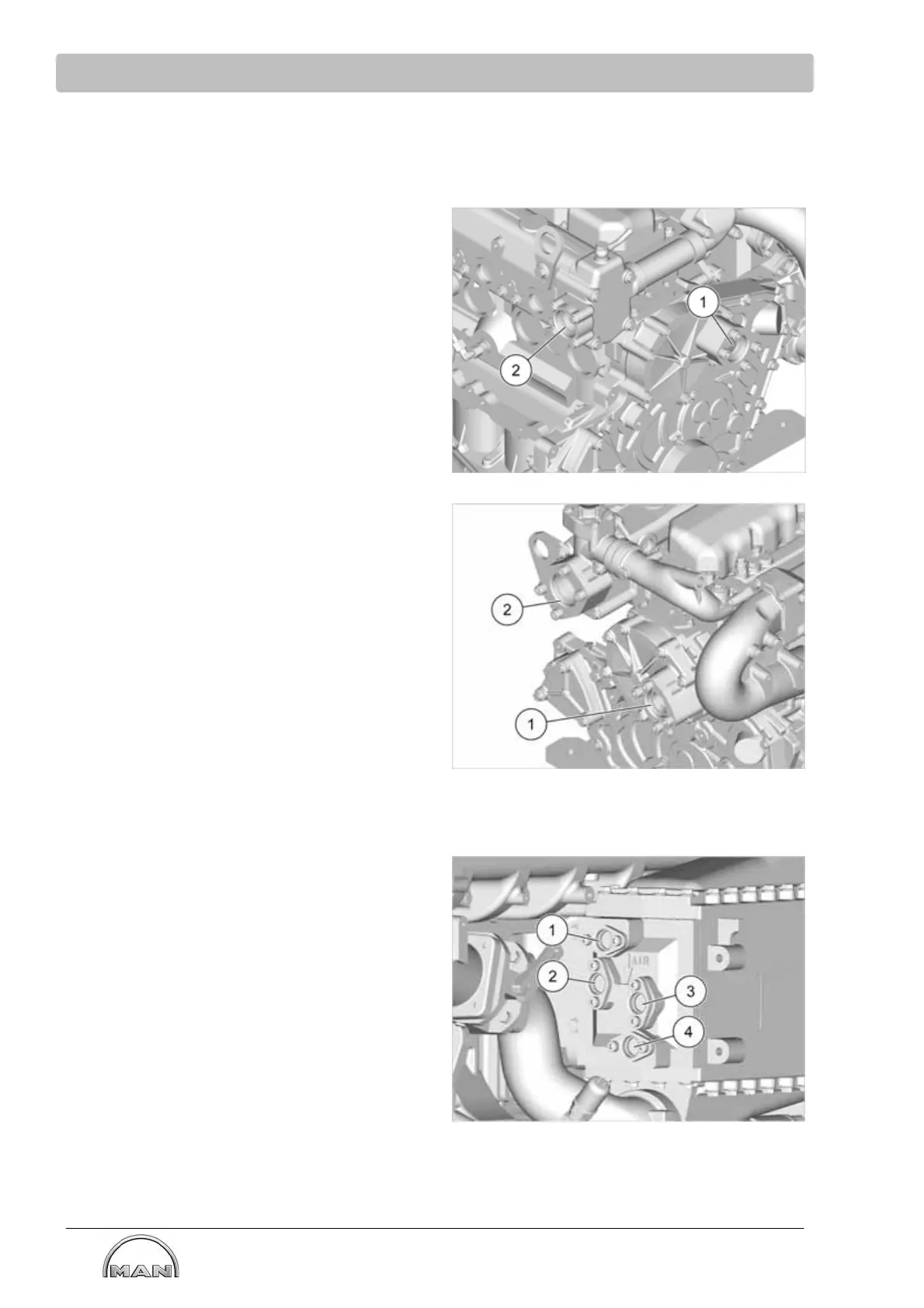

5.6.1 Connecting Coolant Lines for Engine Cooling
The installation drawing specifies the
implementation of the coolant connections.
E0834 LE302
1. Connect coolant inlet (1)
2 Connect coolant outlet (2)
E0836 LE202
1. Connect coolant inlet (1)
2 Connect coolant outlet (2)
5.6.2 Connecting Coolant Lines for Mixture Cooling
The installation drawing specifies the
implementation of the coolant connections.
1. Connect coolant inlet of high temperature
stage (2)
2. Connect coolant outlet of high temperature
stage (1)
3. Connect coolant inlet of low temperature
stage (4)
4. Connect coolant outlet of low temperature
stage (3)
