Installation
43
Carefully read the Assembly Instructions before starting any work!
This is especially valid for the chapter on General Safety Instructions
and the safety instructions in each of the chapters.

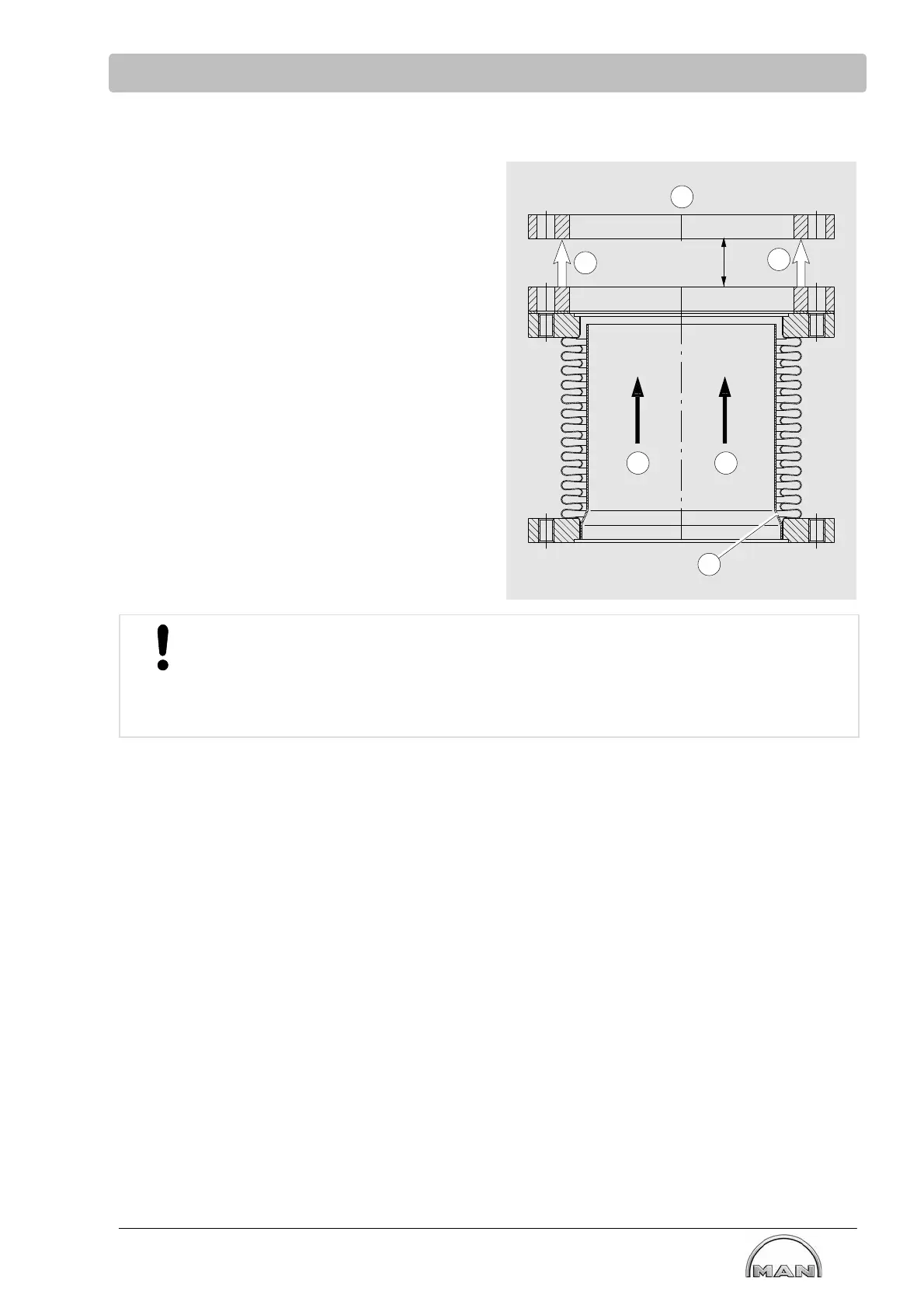

5.8.2 Installing Exhaust Pipe Bellows
Install the exhaust pipe bellows as vertical as
possible to support the rest of the exhaust line.
The position of the guide pipe (4) determines the
flow direction of the exhaust.
Install exhaust pipe bellows under tensile prestress
(2). A tensile prestress means that before the
bellows are bolted, the distance X between the
flange of the bellows and the counter flange of the
rest of the exhaust pipe (1) should measure 10-15
mm.
3 3
2
2
1
x
4
IMPORTANT!
Damage of the exhaust pipe bellows caused by incorrect installation
For this reason:
S Observe the flow direction (3) of the exhaust through the bellows!
S Install the bellows in a vertical position!
