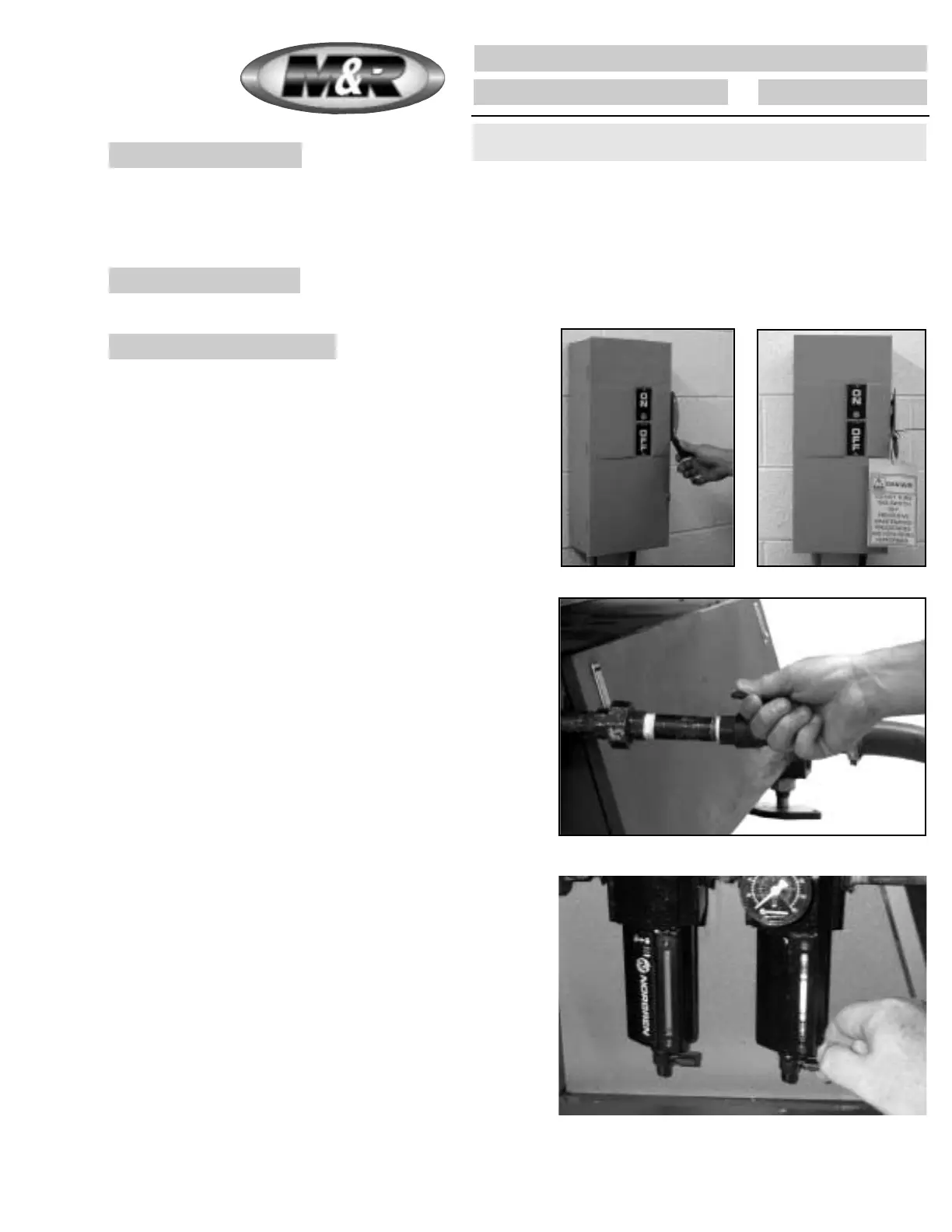

PREVENTIVE MAINTENANCE PROCEDURE

CHALLENGER Series II Bulletin No. IX9

Maintenance Point

Frequency Interval

Procedure Information

Drain accumulated water and moisture from your compressor receiver tank and the press air manifold located on the

bottom of the indexer chassis.

Monthly

Tools required:1 - 7/16” Box end 12 point wrench

1 - 3/8” open end wrench

1. Disconnect, lock out and tag the electrical and pneumatic

power from the equipment.

2. Disconnect the compressed air supply from the equip-

ment by closing the manual shut-off valve. The manual shut-

off valve is closed when the handle is positioned across the

air supply pipe/hose. (See illustration at right)

3. Bleed off any compressed air which may remain in the

system by opening the small pet-cock valve (turn handle

counterclockwise to open valve) at the bottom of the mois-

ture trap assembly. Allow any compressed air to completely

evacuate the system before closing (turn handle clockwise to

close) the pet-cock valve.

081200MS

The frequency of the following preventive maintenance procedure is

based on a 8 hour daily production shift or 40 hour work week.
