E 300 OPERATOR INTERFACE -
The Operator Interface control panel used in the
manufacture of the M&R Challenger Series II Textile
Screen Printing System incorporates an L.C.D.
(Liquid Crystal Diode) type alpha/numeric display for
providing information regarding operational,
programming and system status messages in real
time. The Operator Interface control panel is divided

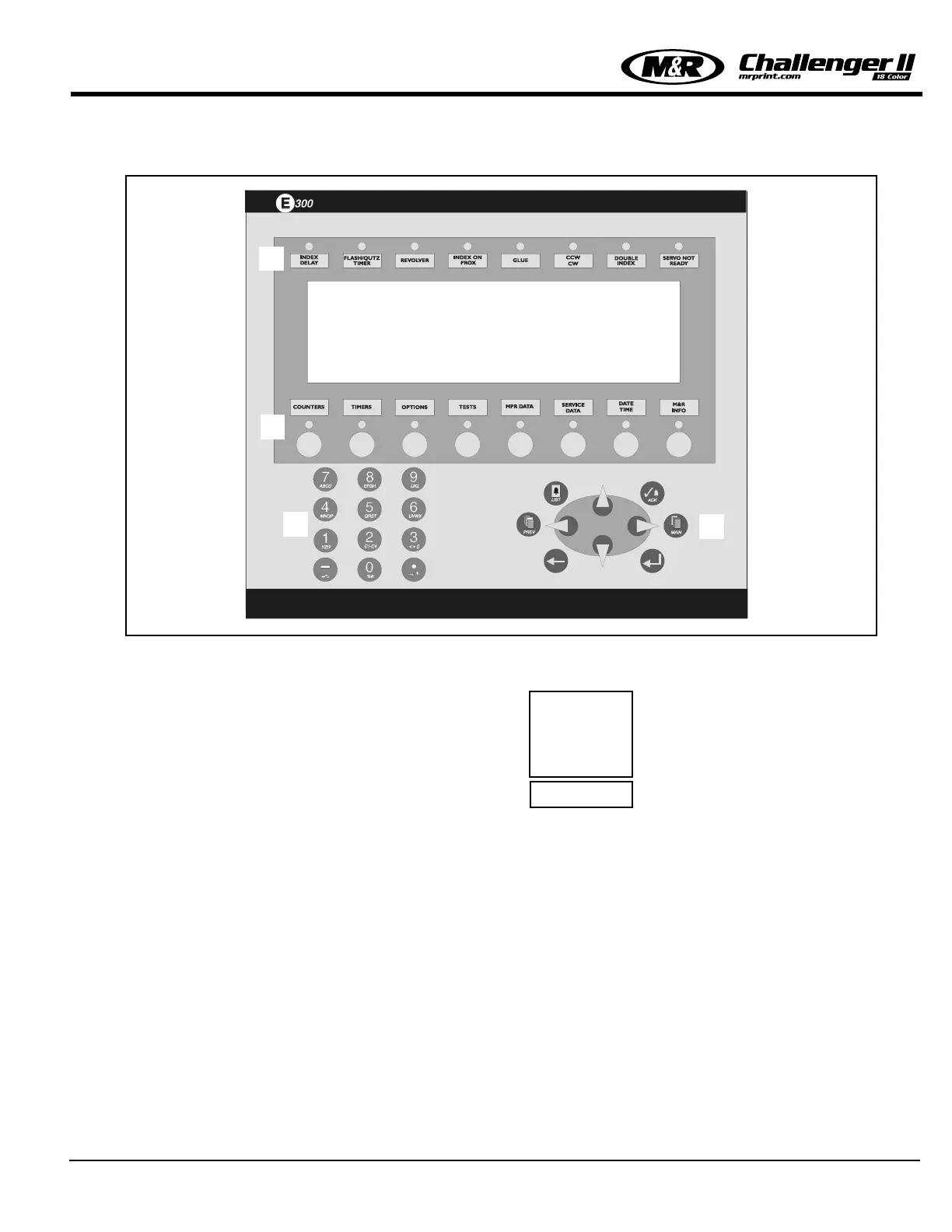

into 5 different control areas as follows. (See Figure
1 above)
a. Along the top width of the control are status L.E.D.
indicators each of which can display either a green
or red indication based on the various operational
parameters listed below each individual indicator.
The operational parameters, listed form left to right
are - INDEX DELAY, FLASH/QUARTZ TIMER,
REVOLVER, INDEX ON PROX, GLUE, CCW/CW
(Counterclockwise & Clockwise), DOUBLE INDEX and
SERVO NOT READY.
NOTE: If your press has been
ordered with the “Revolver”
print sequencing program,
then the “QUARTZ PRE-
HEAT” L.E.D. indicator will be
replaced with “REVOLVER”.
b. Directly below the L.E.D. indicators is the L.C.D.
display window. Information regarding operation,
programming and system status are displayed here.
c. Directly below the L.C.D. display window are the
individual Status and Program control buttons with
L.E.D. indicators. These control buttons are used to
program the on-board PLC for various require-
ments, and to access system status, useful for trou-
ble shooting procedures. Listed from left to right they
are - COUNTERS, TIMERS, OPTIONS, TESTS,
MPR DATA, SERVICE DATA, DATE/TIME and M&R
INFO.
