E 300 Operator Interface
M&R Printing Equipment, Inc. - Glen Ellyn, Illinois
42
d. Located at the bottom left of the control is the
alpha numeric keypad used to input information for
various programming parameters.
e. To the lower right of the control panel is the pro-
gramming function buttons. Starting at the 12
O’clock position and moving clockwise they are -
ARROW UP, ACKNOWLEDGE, ARROW RIGHT,
MAIN, ENTER, ARROW DOWN, BACK SPACE,
ARROW LEFT, PREVIEW and LIST.
The following information provides a detailed
description of all controls and indicators on the
Operator Interface. (Refer to Figure 2 above)
L.E.D. STATUS INDICATOR LIGHTS -
INDEX DELAY -
This indicator light displays a green L.E.D. when the
system is operating with the “Index Delay” com-
mand. A red L.E.D. will be displayed when the sys-
tem is operating in the “Revolver” print sequencing
program.
FLASH/QUARTZ TIMER -
When the “Flash Timer” command is selected, this
L.E.D. will display a green indication.
REVOLVER/QUARTZ PREHEAT -
This L.E.D. will display a green indication when the
“Quartz Preheat” time interval is activated, or when
the system is operating in the Revolver sequencing
mode.
INDEX ON PROX -
This L.E.D. will display a green indication when the
“Index ON” proximity switch which reads the
carousel index cam followers is activated.
GLUE -
This indicator will display a green L.E.D. when ever
the optional M&R Annamister spray guns are activat-
ed.
CCW/CW -
This L.E.D. will display a green indication when the
indexer rotation is selected for counterclockwise

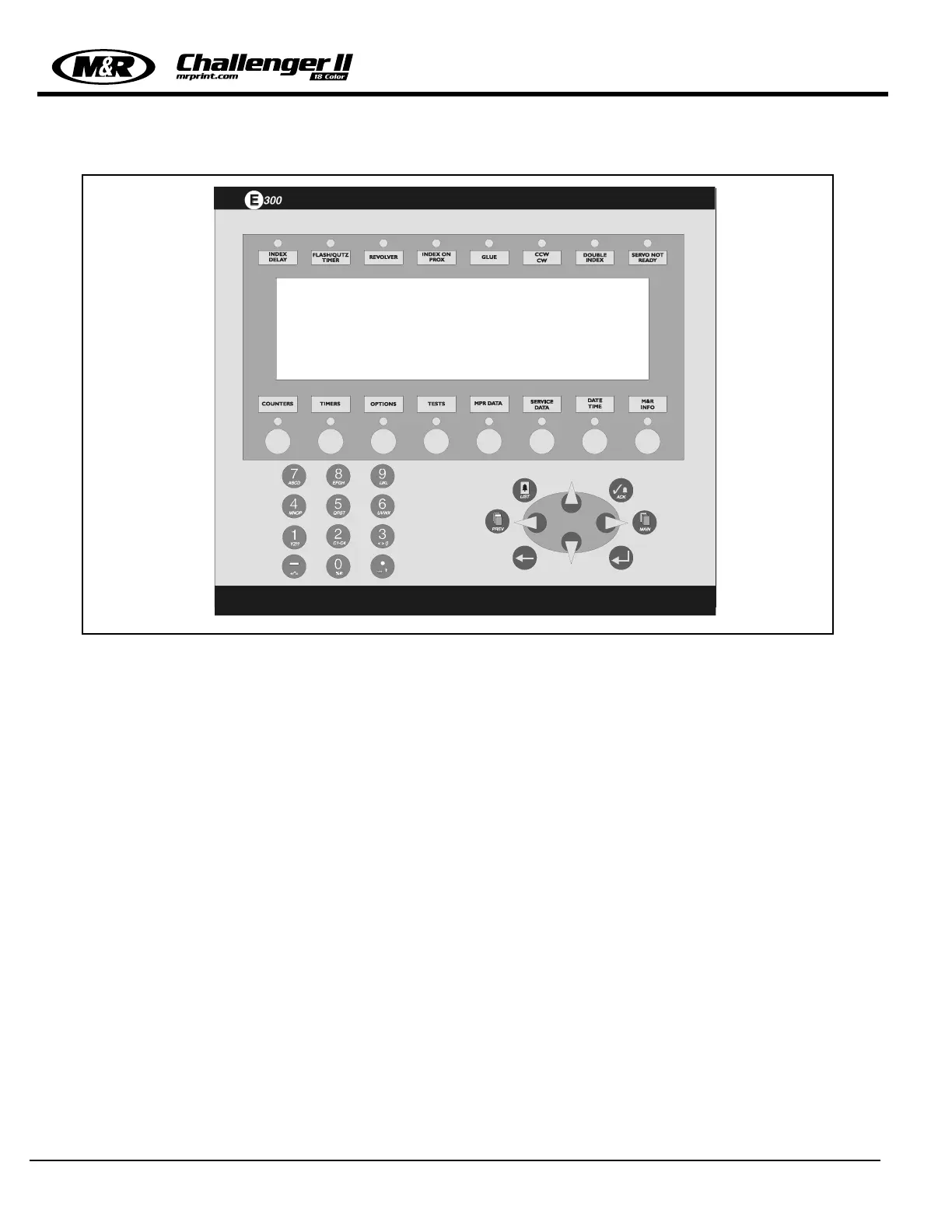

Figure 2
