M&R Printing Equipment, Inc. - Glen Ellyn, Illinois
111

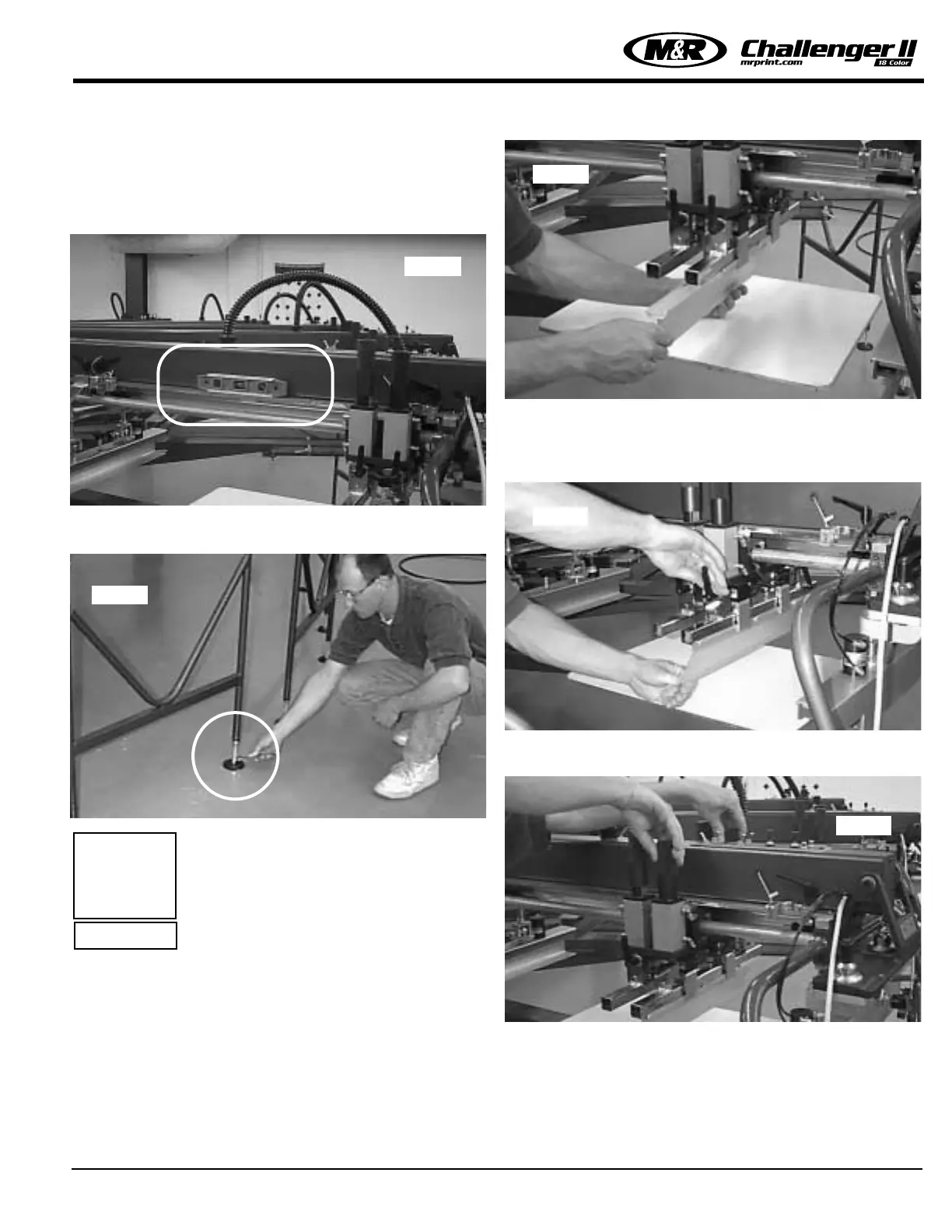

LEVELING THE PALLETS:
1. Make sure the print station being used to level the pallets
is level by placing a small magnetic level (Torpedo Level) on
the chrome plated plate (See Fig. 1).
Adjust the leveling pads on the head support to level the
head if necessary. (See Fig. 2)
NOTE: After the press has been installed by
a factory trained technician, there is no fur-
ther need to adjust the print head supports.
2. Mount the flood bar on the mounting bar flood position.
(Mounting Bar with the extended chopper cylinders) (See
Fig. 3 top right)
3. Adjust the flood bar for zero angle . Loosen the two ratch-
et type knobs on both sides of the mounting bar. After
adjusting, tighten the knobs. (See Fig. 4)
4. Turn the flood pressure knobs clock-wise, to adjust flood
bar all the way up. (See Fig. 5)
5. Pull the print carriage all the way towards the front of the
print head and disconnect the 3/8" air line located on the
front of the head (Tol-O-Matic Cylinder Fitting). Use a brass
fitting union with plug, to plug the 3/8" air line (M&R Part
#2003060-fitting union and Part # 2003042-plug).
Leveling the Pallets
i
IMPORTANT!
Fig. 3
Fig. 4
Fig. 5
Fig. 1
Fig. 2
