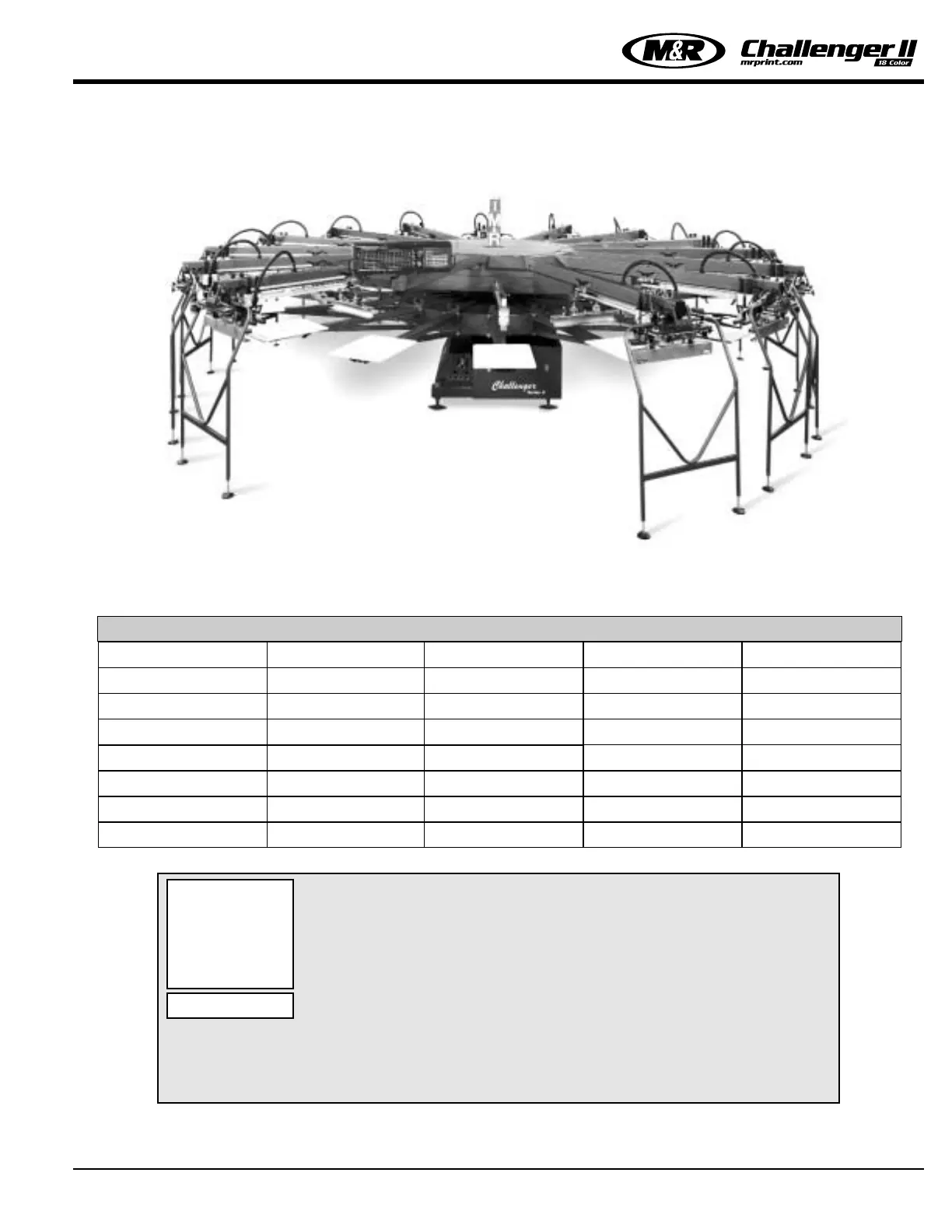

SPECIFICATIONS CHALLENGER Series II (Pneumatic Models)
M&R Printing Equipment, Inc. - Glen Ellyn, Illinois
5
MODEL No.
12 COLOR 14 COLOR
Maximum Image Size
20” x 28” (50 x 70 cm) 20” x 28” (50 x 70 cm)
Maximum Frame O.D.
26” x 43” (66 x 109 cm) 26” x 43” (66 x 109 cm)
Total Set-Up Diameter
18’ (5.49 m) 19’ 6” (5.94 m)
Compressed Air Req.
100 P.S.I. @ 60scfm 100 P.S.I. @ 72 scfm
Electrical Requirements
208/240 v, 3 ph, 17 Amps 208/240 v, 3 ph, 17 Amps
Shipping Weight
7500 lbs. (3402 kg) 8000 lbs. (3629 kg)
Standard Pallet Size
16” x 22” (40.6 x 55.8 cm) 16” x 22” (40.6 x 55.8 cm)
The electrical specifications indicated are based on mathematical calculations which
assume ideal conditions exist for electrical supply line values, material used in the
installation of electrical service and site preparation. Although every effort has been
made to provide accurate electrical specifications, M&R Printing Equipment, Inc., does
not assume any liability for damages, whether consequential or incidental, that may
result from the use of the indicated electrical specifications. M&R Printing Equipment,
Inc.,encourages the use of a licensed Electrician for the installation of electrical service
to this equipment. The equipment when installed must be electrically grounded in
accordance with local codes, or in the absence of local codes, with the National
Electrical Code ANSI/NFPA 70- Latest Edition.
M&R Printing Equipment, Inc. reserves the right to alter specifications in the manufac-
ture of its products.
Specifications
i
IMPORTANT!
16 COLOR
20” x 28” (50 x 70 cm)
26” x 43” (66 x 109 cm)
21’ (6.40 m)
100 P.S.I. @ 72 scfm
208/240 v, 3 ph, 17 Amps
8500 lbs. (3856 kg)
16” x 22” (40.6 x 55.8 cm)
18 COLOR
20” x 28” (50 x 70 cm)
26” x 43” (66 x 109 cm)
22.5’ (6.9 m)
100 P.S.I. @ 72 scfm
208/240 v, 3 ph, 17 Amps
9000 lbs. (4083 kg)
16” x 22” (40.6 x 55.8 cm)
