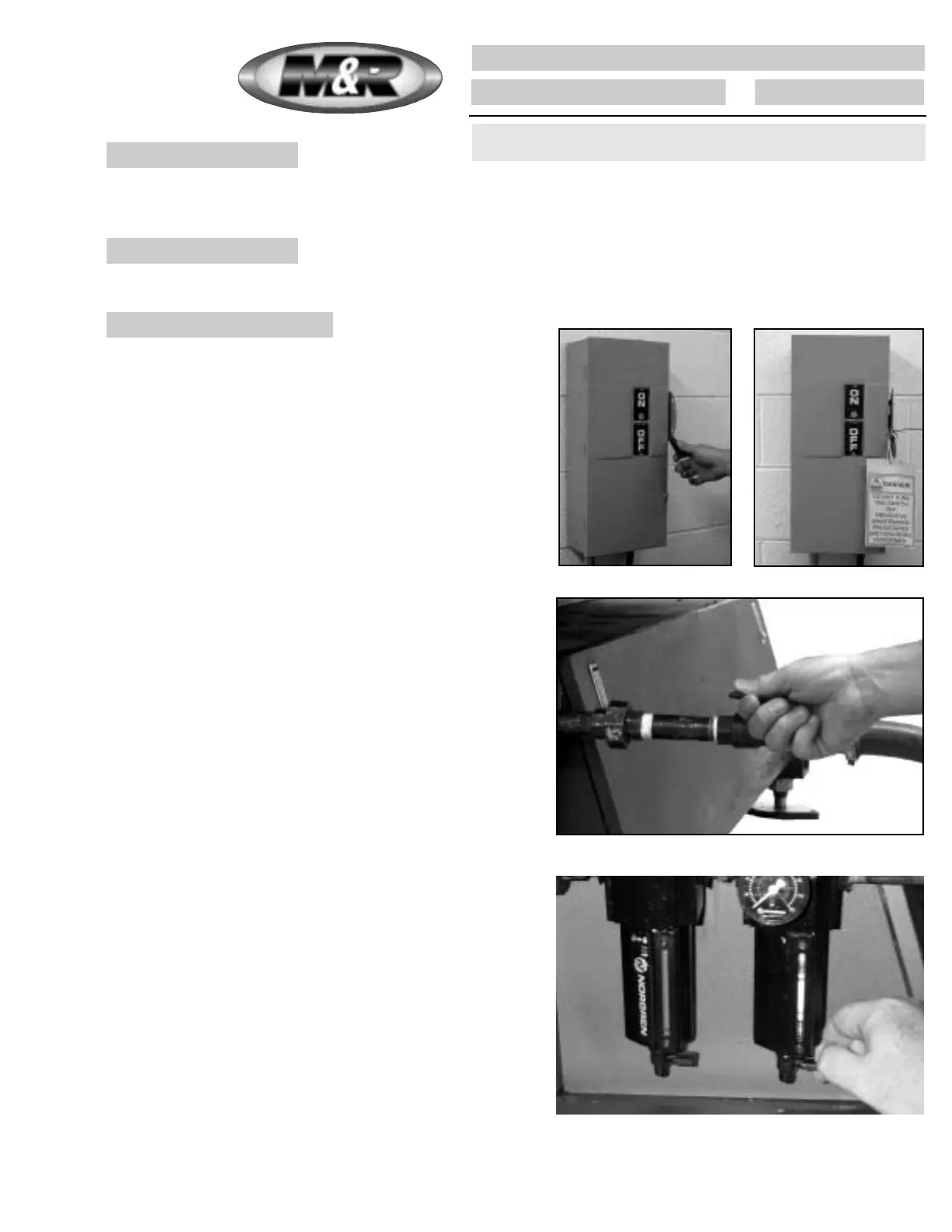

PREVENTIVE MAINTENANCE PROCEDURE

CHALLENGER Series II Bulletin No. PH1

Maintenance Point

Frequency Interval

Procedure Information

Check and clean away as needed any lint, ink or spray adhesive which may have accumulated on the print carriage

assembly.

Every Day

Tools required: None

Disconnect, lock out and tag the electrical and pneumatic

power from the equipment.

081200MS

Disconnect the compressed air supply from the equipment

by closing the manual shut-off valve. The manual shut-off

valve is closed when the handle is positioned across the air

supply pipe/hose. (See illustration at right)

NOTE: The manual shut-off valve is not supplied with the

equipment. The manual shut-off valve must be installed

by the end user.

Bleed off any compressed air which may remain in the sys-

tem by opening the small pet-cock valve (turn handle coun-

terclockwise to open valve) at the bottom of the moisture

trap assembly. Allow any compressed air to completely

evacuate the system before closing (turn handle clockwise to

close) the pet-cock valve. Close the pet-cock valve once the

needle on the air gauge reads zero.

The frequency of the following preventive maintenance procedure is

based on a 8 hour daily production shift or 40 hour work week.
