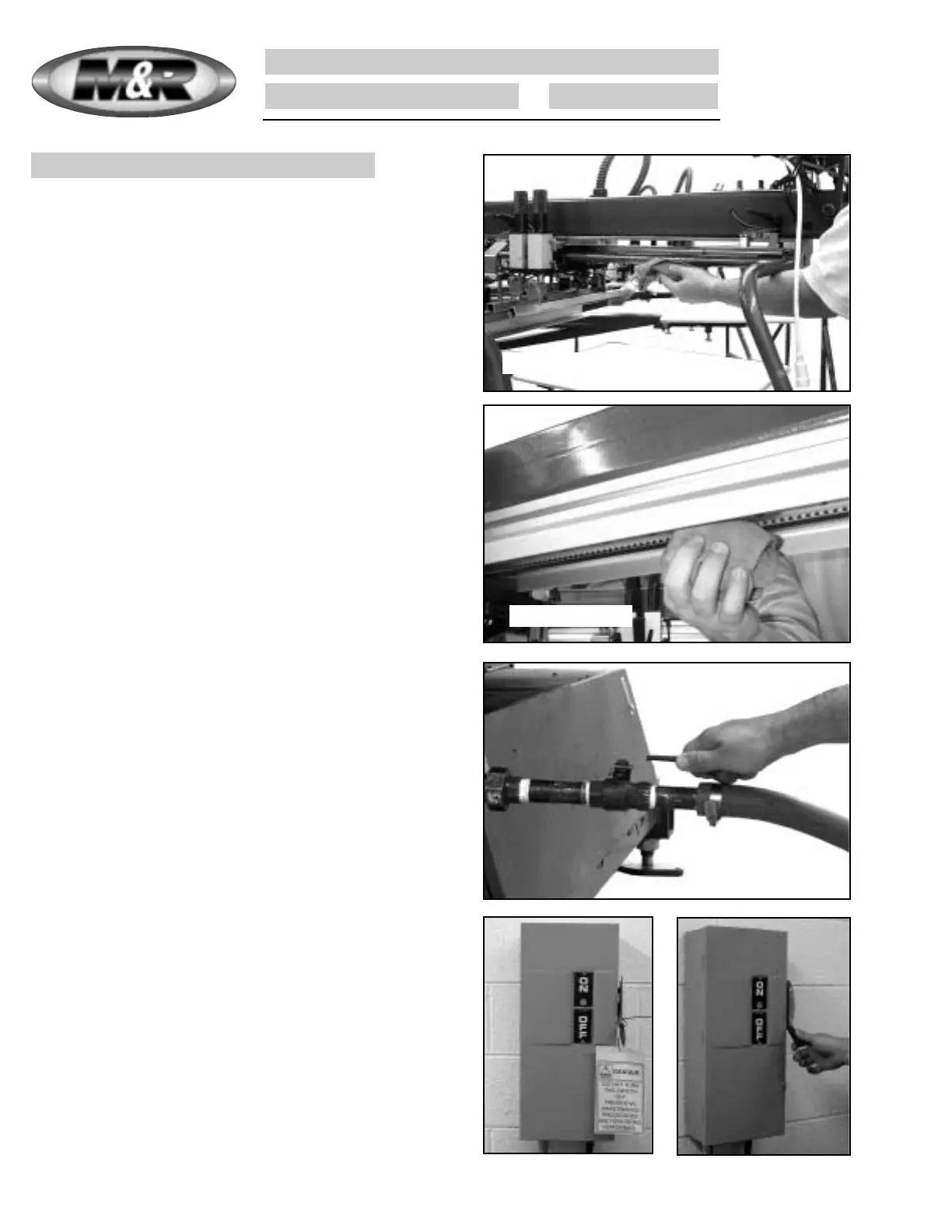

PREVENTIVE MAINTENANCE PROCEDURE

CHALLENGER Series II Bulletin No. PH1

Procedure Information (Cont.)

Open manual shut-off valve for compressed air supply to the

equipment. The manual shut-off valve is open when the han-

dle is aligned with the incoming compressed air supply line

pipe or hose. (See illustration at right)

Remove lock-out tag from electrical disconnect and turn dis-

connect switch back “ON” to supply electrical power to the

equipment. (See illustration at right)

Using a clean cloth moistened with 10 wt. non-detergent oil,

clean away any accumulation of ink, lint, dirt or spray adhe-

sive from the print carriage guide shafts, chopper linkage

assembly, adjustment knobs, squeegee/flood bar angle

brackets and miscellaneous hardware. (Refer to the illustra-

tions of pneumatic and AC print stations at right)

After cleaning, lubricate all assemblies as required.

081200MS

AC Print Station

Pneumatic Print Station
