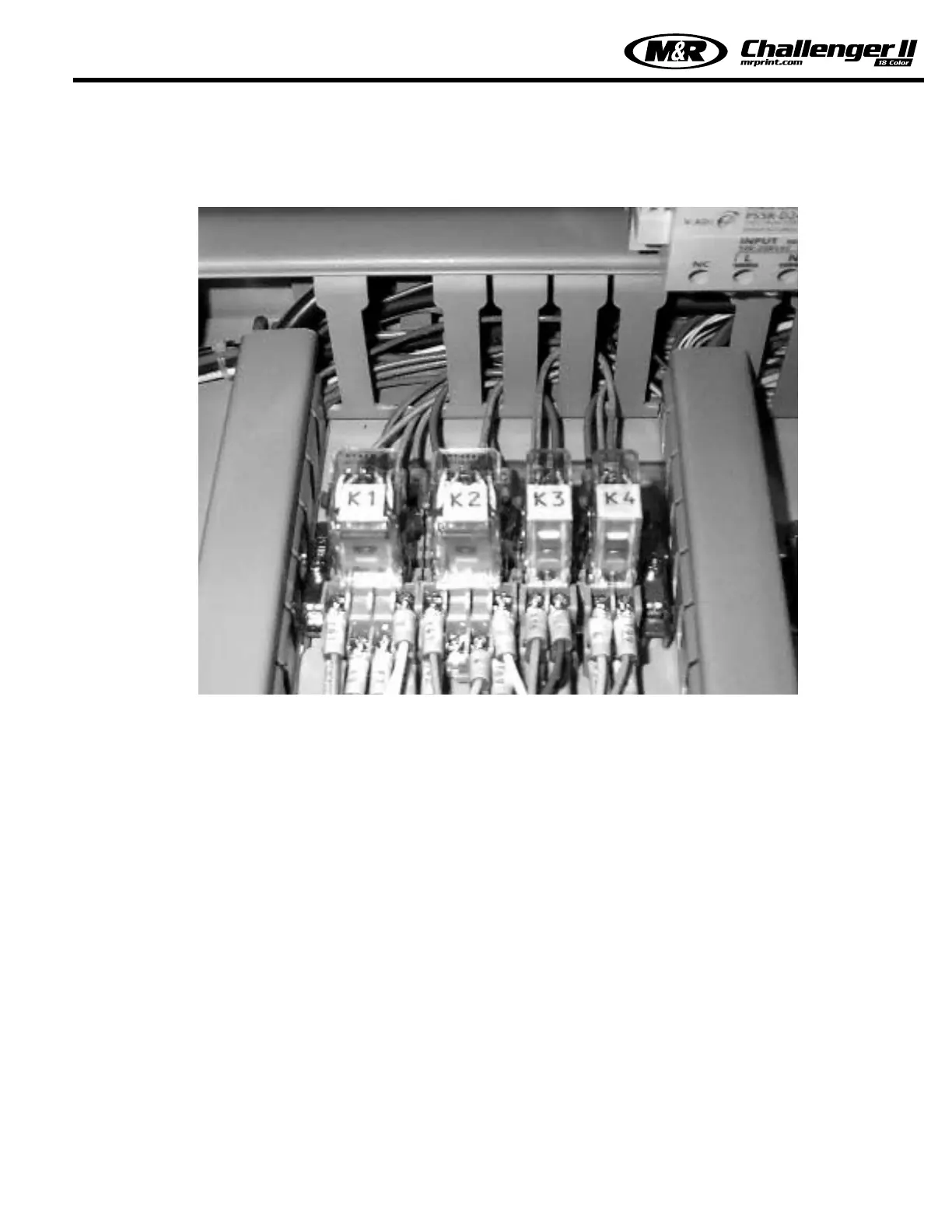

Idec Relay Identification
K1 (Quartz Lamps Relay 4 Pole 120 volts AC) - This relay is used to
signal the optional Quartz Lamp Flash Cure Units to cycle up to the
pre-selected output power setting for flashing of garments.
Idec Relay Location & Function
K2 (Emergency Relay 4 Pole 120 volts AC) - This relay is used to
confirm the closure of the red emergency stop push button located on
the Operator’s control panel. If this relay does not energize, it is an
indication that the red emergency stop push button has been activated
(pushed “IN”).
K3 (Servo Alarm Relay 2 Pole Relay 24 volts DC) - This relay is used
to monitor the Mitshubishi Servo Amplifier Unit. Should a Servo Alarm
condition occur, this relay will drop out resulting in a shut down of the
index Servo Drive unit.
K4 (Safety Relay 2 Pole Relay 24 volts DC) - This relay is used to
confirm the closure of the yellow safety cord circuit. If this relay does
not energize, it is an indication that one or more yellow safety cords
have not been connected.
119
