M&R CHALLENGER II Series User Manual

M&R Printing Equipment, Inc. - Glen Ellyn, Illinois
14

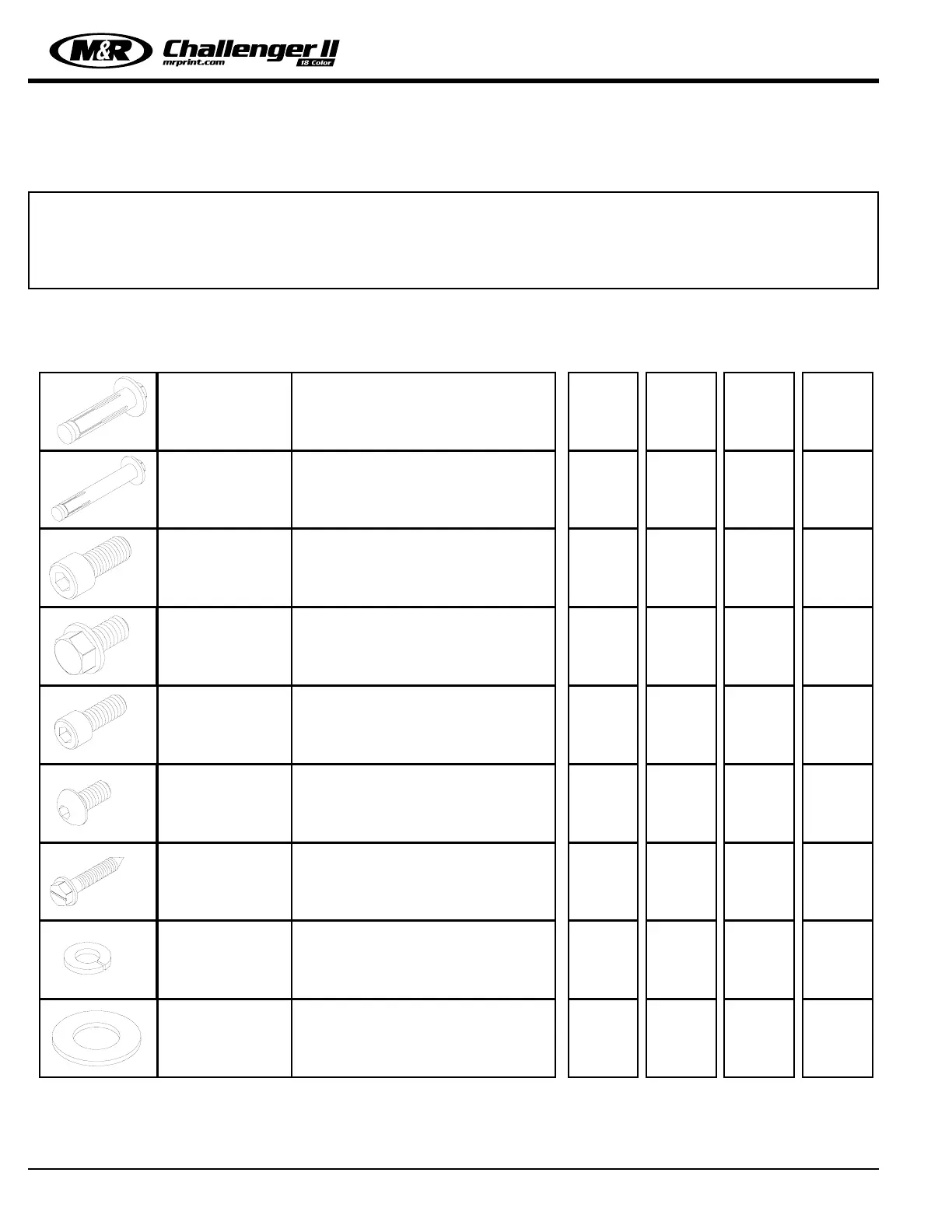

Installation Hardware
The hardware list shown below illustrates and describes all hardware required to assemble your Challenger Series II
screen printing system. The quantity is indicated for each available model size. Although a Factory Trained M&R Service
Representative will perform the original installation of this equipment, this hardware list can prove valuable should the
equipment be relocated or dis-assembled for any reason. If any of the hardware listed below is not included with the
equipment upon delivery, please contact our Customer Service Dept. at 1 (800) 736-6431 for assistance.
3047001
Sleeve Anchor
1/2” x 2-1/4”
4 4 4
3047000
Sleeve Anchor
5/16” x 2-1/2”
26 30 34
3009013
Socket Cap Screw
1/2” - 13 x 1-1/4”
36 42 48
3003003
Bolt FL Whiz Lok
1/2”-13 x 1” Long
56 64 72
3009047
Socket Cap Screw
1/4” - 20 x 1/2” Long
48 56 64
3001013
Button Socket Cap
10-24 x 1/2” Long
42 51 60
3055003
Self Drill (Sheet Metal Screw)
8 x 3/4”
12 14 16
3022001
Lock Washer
1/4”
48 56 64
3021000
SAE Washer 1/2”
Zinc Plated
36 42 48
Illustration
Part No. Description
12
Color
14
Color
16
Color
4
38
54
80
72
69
18
72
54
18
Color
