MEANING

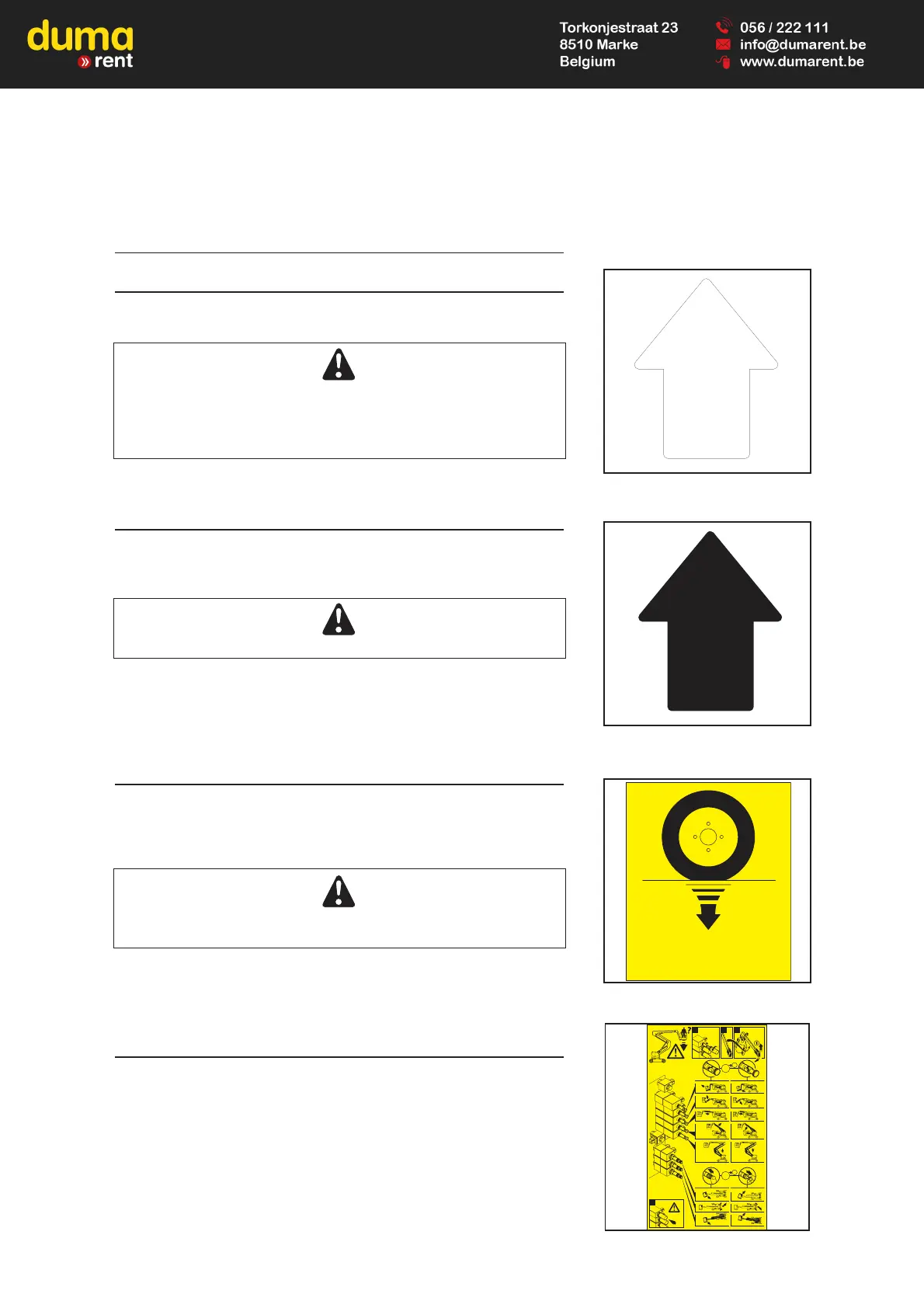

1. WHITE ARROW
This indicates the direction of travelling when moving forwards.
When the turret assembly, the arms assembly and the basket make a 180°
rotation with respect to the chassis, the travelling controls are reversed.
Identify the forward direction by looking at the arrows on the chassis and on
the basket control console.
2. BLACK ARROW
This indicates the direction of travelling when reversing.
Same: white arrow
NB: As on the basket console and the chassis, the white arrows indicate
forward travelling and the black arrows reverse travelling.
3. LOAD PER WHEEL
This indicates the maximum load on one wheel and the load the wheel will
exert on the ground (see 2 - DESCRIPTION: CHARACTERISTICS for the
piercing value).
Before using the platform, identify the type of ground and find out its ability to
resist being pierced.
NB: The weight must be visible on the platform.
4. MANUAL CONTROL PROCEDURE
This describes the procedure for: lowering or turning the basket, turning the
turret and directing the wheels using the pump and the manual controls.
PROCEDURE :
Thumbnail 1 : Unscrew and remove the protective cover over the indexed
controls.
Thumbnail 2 : Pick up the lever.
Thumbnail 3 : Position the lever on the manual pump.
