1 - 21
Association of the two operations
2 + 1 :
Depending on the movements desired:
2 - Push in and lock the wheel (left-hand bubble) OR pull out and lock the wheel (right-hand bubble) + 1 - Pump.
This enables you to perform:
Top left column downwards, Top right column downwards,
The five movements below: The five movements below:
- Raise the basket and the pendular arm - Lower the basket and the pendular arm
- Raise the pendular arm (the basket stays horizontal) - Lower the pendular arm (the basket stays horizontal)
- Extend the telescope - Retract the telescope
- Raise the upper arm - Lower the upper arm
- Raise the intermediate arms - Lower the intermediate arms
Association of the two operations
3 + 1 :
Depending on the movements desired:
3 - Push the wheel in and hold it in this position (left-hand bubble) OR pull the wheel out and hold it in this position
(right-hand bubble) + 1 - Pump.
This enables you to perform:
Top left column downwards, Top right column downwards,
The three movements below: The three movements below:
- Basket rotation right - Basket rotation left
- Point wheels left - Point wheels right
- Turret rotation right - Turret rotation left
Thumbnail 4: Screw on the protective cover for the indexed controls.

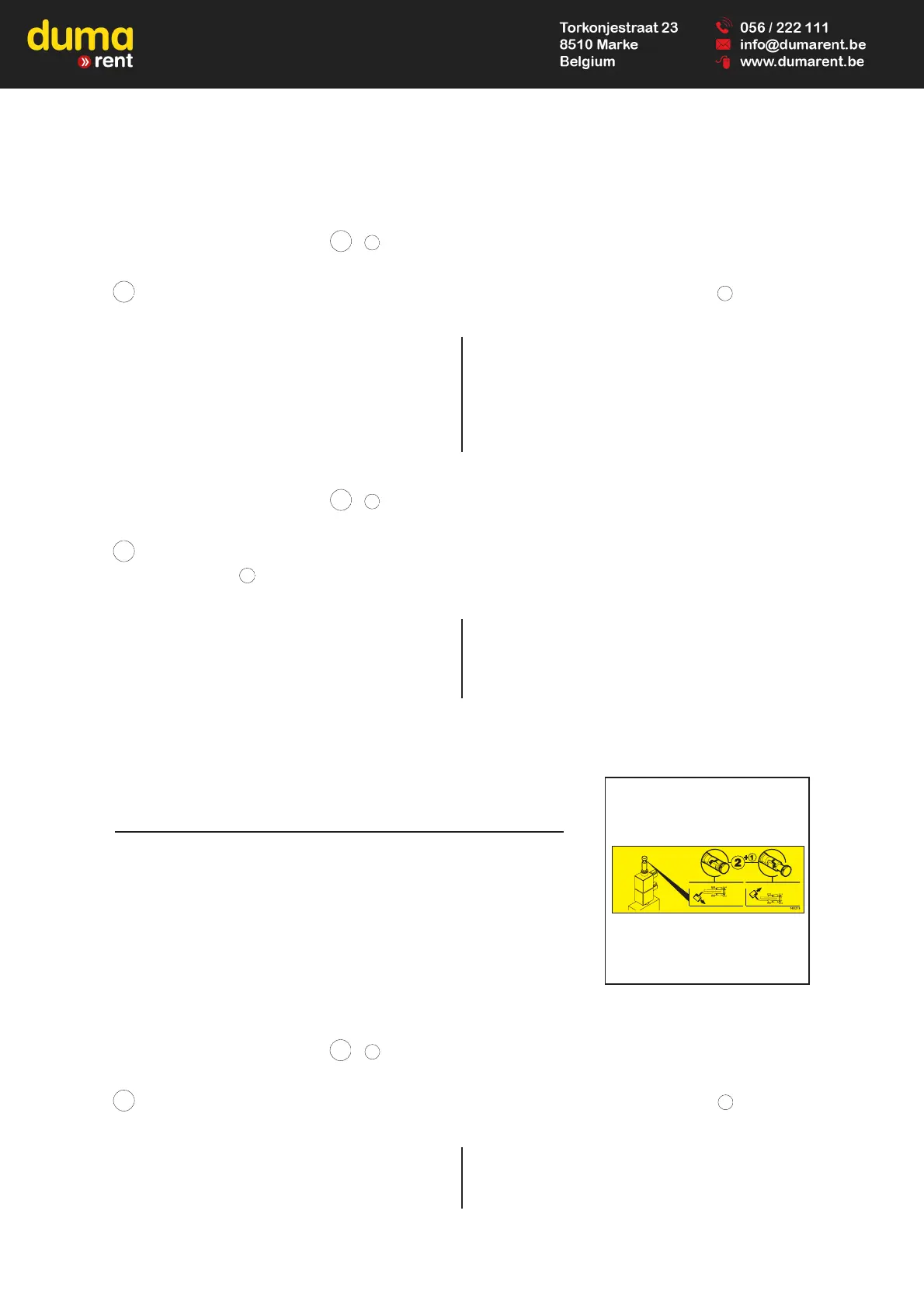

5. MANUAL CONTROL PROCEDURE FOR ROTATING
JIB (3D PLATFORMS)
This describes the procedure for turning the pendular arm / basket assembly.
PROCEDURE (see sticker N° 4):
Thumbnail 1 : Unscrew and remove the protective cover over the indexed
controls.
Thumbnail 2 : Pick up the lever.
Thumbnail 3 : Position the lever on the manual pump.
Association of the two operations
2 + 1 :
Depending on the movements desired:
2 - Push in and lock the wheel (left-hand bubble) OR pull out and lock the wheel (right-hand bubble) + 1 - Pump.
This enables you to perform:
Left-hand column, Right-hand column,
The movements below: The movements below:
- Rotation of the basket assembly - Rotation of the basket assembly
and pendular arm to the right and pendular arm to the left
