DAILY MAINTENANCE
CHECK General inspection
t
IMPORTANT
t
Consult the maintenance personnel if there is doubt about the condition of the platform.
NOTE: The turntable covers must be opened to carry out the general inspection of the platform. They must be closed
once finished.
The operator must perform a visual inspection of the platform:
- Check that the operator's manual is clean and complete.
- Check the stickers and make sure they are all present, clean and legible,
e2-DESCRIPTION: STICKERS.
- Check for leaks: Battery fluid, hydraulic oil, lubricants, etc.
- Check the condition of the structure: No dents, damage, cracked welding, corrosion, excessive mechanical play, wear, etc.
- Check the condition of the basket: Structure, floor, safety rail, harness attachment points, etc.
- Check the condition of the hydraulic components: Pumps, distributors, valves, motors, cylinders, hoses, etc.
- Check the condition of the mechanical components: Wheels, tires, tie rods, crown gear, axles, etc.
- Check the condition of the electrical components: Control panels, control handles, switches, buttons, indicator lamps,
battery, fuses, cables, harnesses, flashing lights, etc.
- Check the condition of covers, handles, locks, plugs, etc.
- Check if any parts are missing or loose: Screws, nuts, pins, etc.
- Check that no parts are missing or have had unauthorized modifications.
- Check the general cleanliness of the platform: Basket floor, turntable compartments, etc.

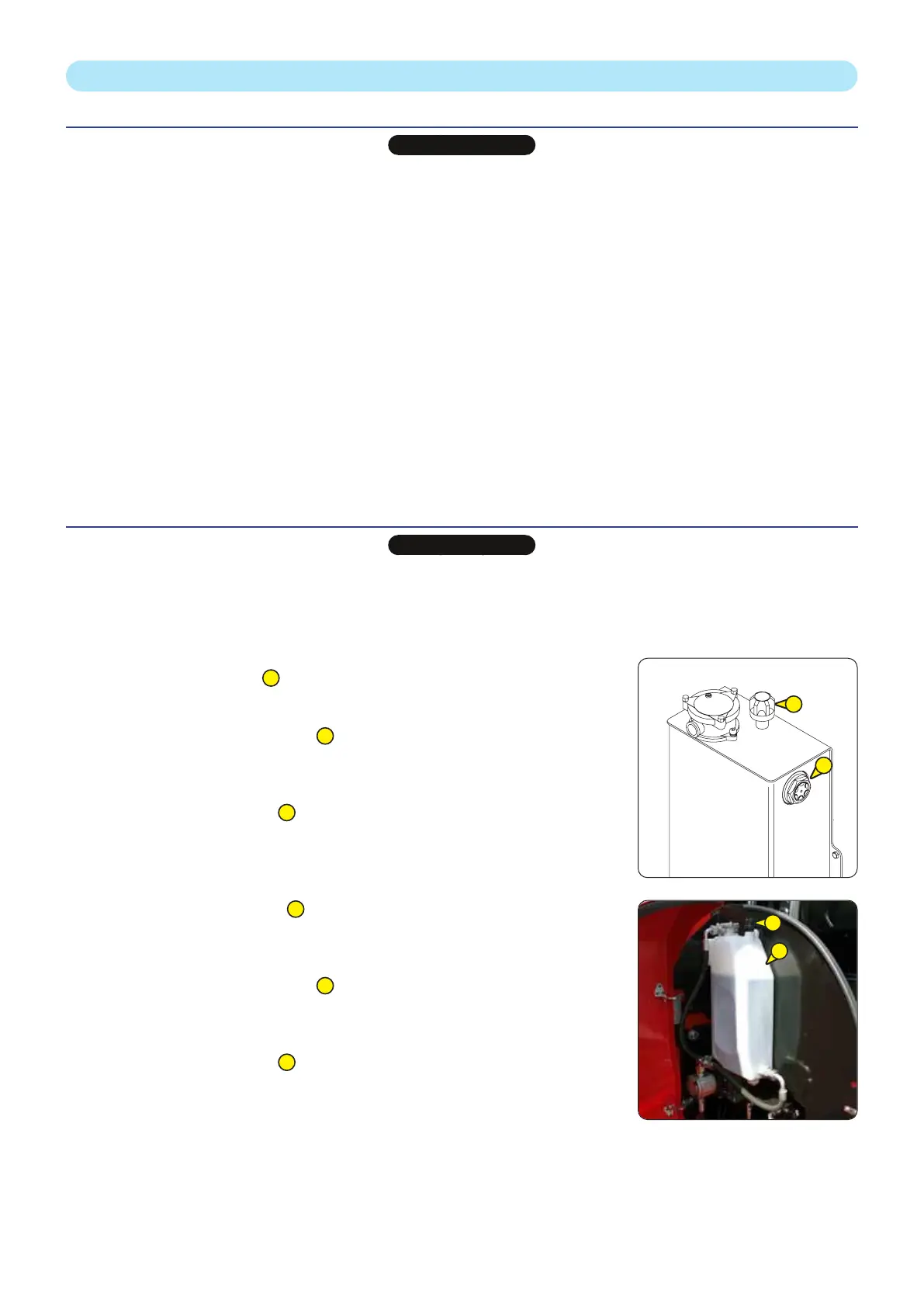

CHECK Hydraulic oil level
t
IMPORTANT
t
The platform must be in transport position with the jib lowered completely.
There can be a difference in level of 10 mm to 20 mm between hot and cold oil. It is recommended the level is checked again when the hydraulic oil is hot.
Clean the oil can before adding oil to the hydraulic oil tank.
Use a clean funnel to add oil to the hydraulic oil tank.
- Open the left-hand turntable cover.
FIRST VERSION
- Locate the level indicator
1
. The level is correct when the oil reaches the red dot
on the level indicator.
- If the level is low:
• Remove the cap from the tank
2
.
• Add hydraulic oil until the correct level is reached, eLUBRICANTS.
• Refit the tank cap.
- If the level is correct:
• Ensure that the tank cap
2
is correctly closed.
SECOND VERSION
- Clean the outside of the tank
1
with a clean cloth.
- Check the level of hydraulic oil in the transparent tank. The level is correct when
the oil is between the MIN and MAX marks.
- If the level is low:
• Remove the cap from the tank
2
.
• Add hydraulic oil until the correct level is reached, eLUBRICANTS.
• Refit the tank cap.
- If the level is correct:
• Ensure that the tank cap
2
is correctly closed.
- Close the left-hand turntable cover.
1
2
1
2
3 - 12
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
