Manitou 170 AETJ L User Manual

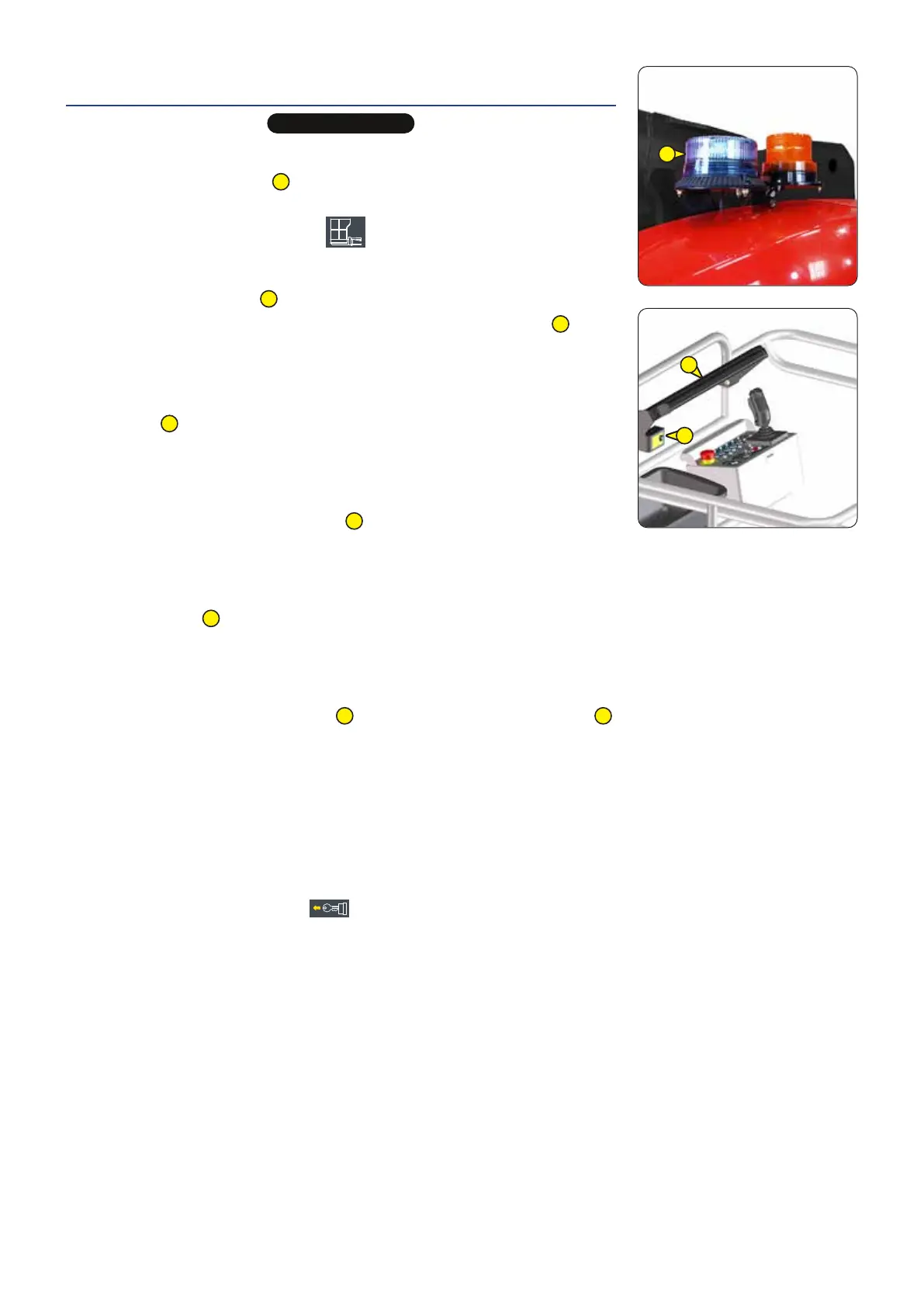

CHECK Secondary protection system SPS- first version "SafeManSystem"
(OPTION)
t
IMPORTANT
t
Select a test area on a firm, level surface that is free of any obstacles.
Shut the platform down if a malfunction is detected.
NOTE: The flashing light SPS
1
can be blue or red depending on the country.
- Turn the battery cut-off to the ON position.
- Turn the ignition switch to position
.
Result:
• The audible alarm should sound once.
• The flashing light SPS
1
should flash several times and stop.
NOTE: If the audible alarm sounds intermittently and the flashing light SPS
1
flashes
rapidly: The platform can function normally but the option is deactivated.
Refer to maintenance personnel.
- Get into the basket.
- Turn the basket to the right or left. At the same time, press and release the safety
edge SPS
2
.
Result:
• The basket rotation should stop.
• The horn should sound intermittently and the flashing light SPS should flash.
• It should not be possible to activate the functions.
- Press and release the reset button SPS
3
.
Result:
• The horn should stop sounding and the flashing light SPS should stop flashing.
• It should be possible to activate the functions.
- Turn the basket to the right or left. At the same time, press and hold down the
safety edge SPS
2
.
Result:
• The basket rotation should stop.
• The horn should sound intermittently and the flashing light SPS should flash.
• It should not be possible to activate the functions.
- Press and release the reset button SPS
3
without releasing the safety edge SPS
2
.
Result:
• The horn and the flashing light SPS should continue to operate.
• It should be possible to activate the functions.
- Release the safety edge SPS.
Result:
• The horn should stop sounding and the flashing light SPS should stop flashing.
- Place the platform in transport position. Put the turntable, the basket and the jib
(150AETJ3D (150AETJC3D)) in neutral position. Lower the jib completely.
- Get out of the basket.
- Turn the ignition switch to position
. Turn the battery cut-off to the OFF position.
3 - 20
1
3
2
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
