Manitou 170 AETJ L User Manual

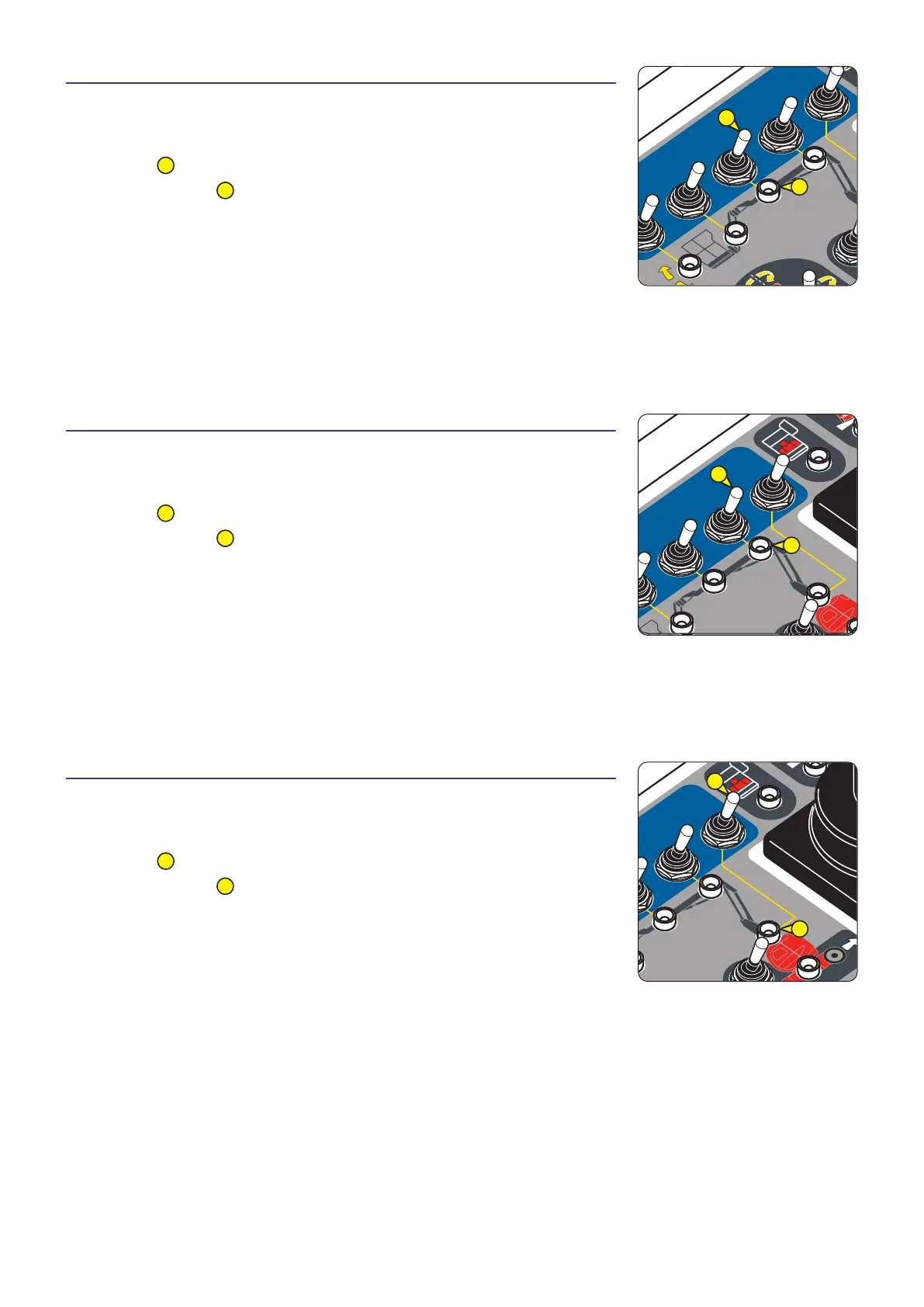

27 - TELESCOPIC ARM ACTIVATION SWITCH AND INDICATOR LAMP
Illustration = second version.
The control handle and the trigger on the control handle must be released before
activating the function.
- Push the
27A
switch forward and release it to activate the function.
Result: The light
27B
comes on. The function is activated when the lamp is on.
NOTE: It goes out if the control handle is not activated in the next 8 seconds.
- Press and hold down the trigger of the control handle.
EXTEND THE TELESCOPIC ARM
- Push and hold the control handle back.
- Release it or release the trigger to stop.
RETRACT THE TELESCOPIC ARM
- Push and hold the control handle forward.
- Release it or release the trigger to stop.
28 - MAIN ARM ACTIVATION SWITCH AND INDICATOR LAMP
Illustration = second version.
The control handle and the trigger on the control handle must be released before
activating the function.
- Push the
28A
switch forward and release it to activate the function.
Result: The light
28B
comes on. The function is activated when the lamp is on.
NOTE: It goes out if the control handle is not activated in the next 8 seconds.
- Press and hold down the trigger of the control handle.
RAISE THE MAIN ARM
- Push and hold the control handle forward.
- Release it or release the trigger to stop.
LOWER THE MAIN ARM
- Push and hold the control handle back.
- Release it or release the trigger to stop.
29 - SECONDARY ARM ACTIVATION SWITCH AND INDICATOR LAMP
Illustration = second version.
The control handle and the trigger on the control handle must be released before
activating the function.
- Push the
29A
switch forward and release it to activate the function.
Result: The light
29B
comes on. The function is activated when the lamp is on.
NOTE: It goes out if the control handle is not activated in the next 8 seconds.
- Press and hold down the trigger of the control handle.
RAISE THE SECONDARY ARM
- Push and hold the control handle forward.
- Release it or release the trigger to stop.
LOWER THE SECONDARY ARM
- Push and hold the control handle back.
- Release it or release the trigger to stop.
32A
32B
28B
28A
29A
29B
2 - 42
27A
27B
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
