OCCASIONAL MAINTENANCE
REPLACE Wheels
t
IMPORTANT
t
ee2- DESCRIPTION: SPECIFICATIONS and the applicable stickers for information about the total weight of the platform and wheel load.
When lifting the platform with a hydraulic or mechanical jack:
Always use a suitable jack for lifting the platform.
Make sure that the 2 wheels on the opposite side to the lift are chocked.
Position the jack near the wheel to be removed.
Always use suitable jack stands to secure the raised platform.
t
IMPORTANT
t
Weight of a wheel (600X190) = 53kg.
Weight of a wheel (27X10X12) = 95kg.
- Loosen the wheel nuts slightly.
- Raise the platform.
- Remove the wheel nuts and the wheel.
- Put the new wheel in place.
- Refit the wheel nuts and tighten them slightly with a spanner.
- Lower the platform to the ground.
- Tighten the wheel nuts, eWEEKLY MAINTENANCE.

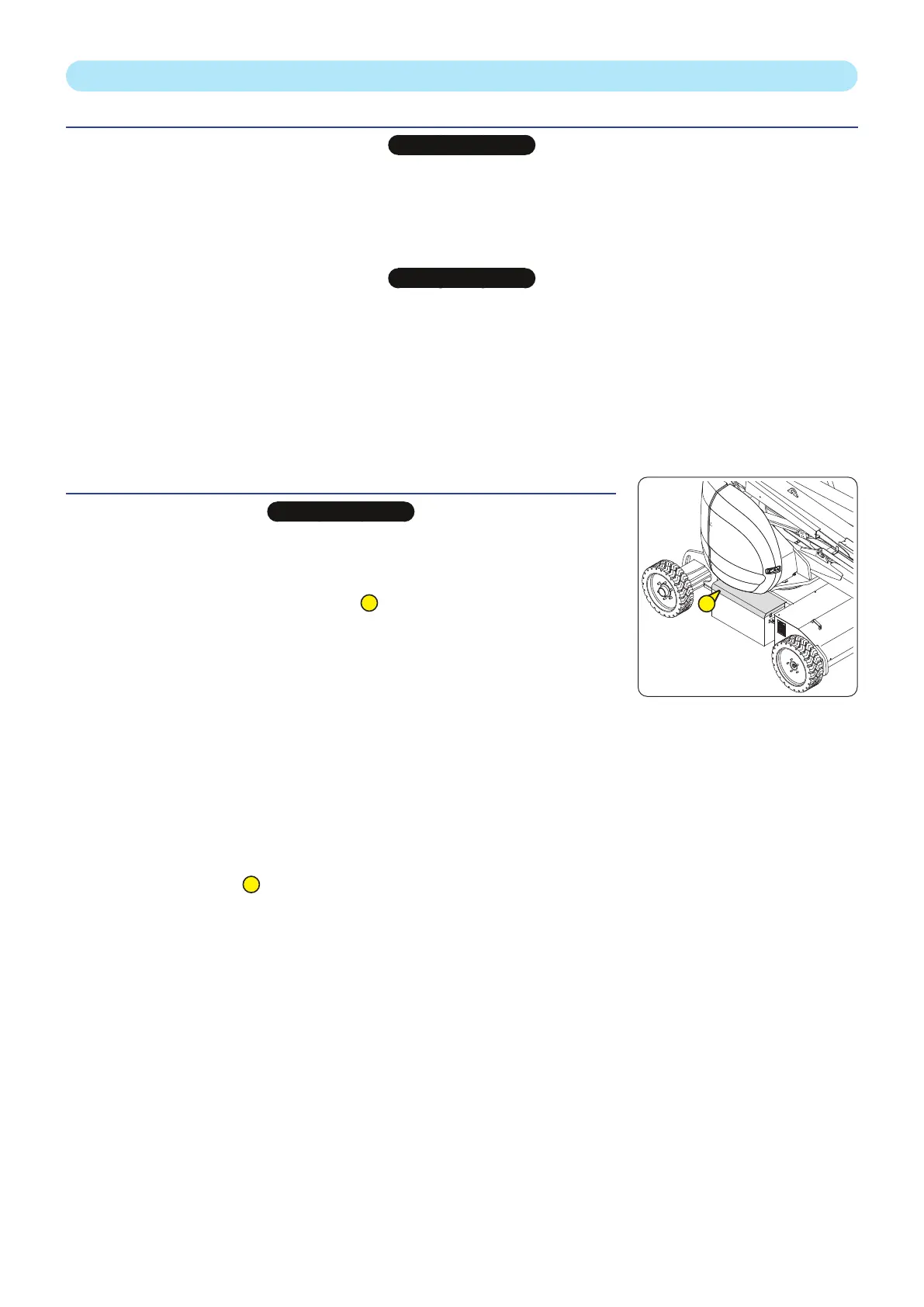

REPLACE Batteries
t
IMPORTANT
t
Always use an appropriate pallet truck or lift truck to remove and replace batteries.
Keep the batteries flat when removing and replacing them.
Weight of a battery = 265kg.
Ensure that the battery terminals cannot come into contact with metal objects.
- Remove the right and left battery covers
1
.
- Disconnect the right-hand battery:
• Negative (-) terminal first.
• Positive (+) terminal.
- Disconnect the left-hand battery:
• Negative (-) terminal first.
• Positive (+) terminal.
- Remove the batteries.
- Put the new batteries in place.
- Connect the left-hand battery:
• Positive (+) terminal first.
• Negative (-) terminal.
- Disconnect the right-hand battery:
• Positive (+) terminal first.
• Negative (-) terminal.
- Put the battery covers
1
back in place.
1
3 - 42
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
