Manitou 170 AETJ L User Manual

TURN THE JIB (ONLY FOR 150AETJ3D (150AETJC3D))
- Put the switch in the
position.
- Press and hold down the trigger of the control handle.
- Turn the jib to the left:
• Push and hold the control handle to the left.
• Release it or release the trigger to stop.
- Turn the jib to the right:
• Push and hold the control handle to the right.
• Release it or release the trigger to stop.

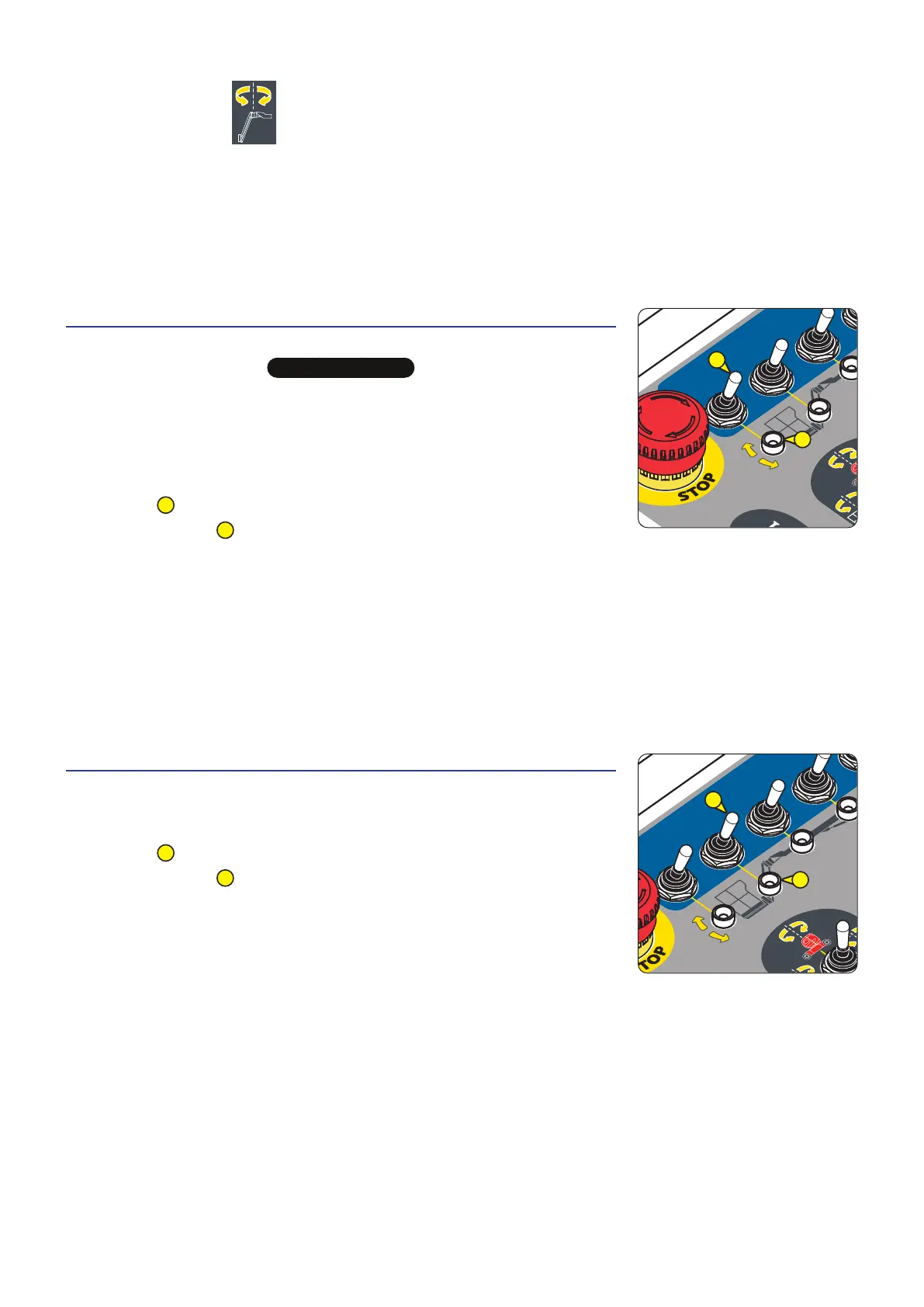

25 - BASKET TILTING ACTIVATION SWITCH AND INDICATOR LAMP
Illustration = second version.
t
IMPORTANT
t
Up to machine no. 949269: These controls are active when the platform is in transport position or working position,
e OPERATING THE PLATFORM: TRANSPORT/WORKING POSITION.
From machine no. 949270: * These controls are only active when the platform is in transport position, e OPERATING
THE PLATFORM: TRANSPORT/WORKING POSITION.
The control handle and the trigger on the control handle must be released before
activating the function.
- Push the
25A
switch forward and release it to activate the function.
Result: The light
25B
comes on. The function is activated when the lamp is on.
NOTE: It goes out if the control handle is not activated in the next 8 seconds.
- Press and hold down the trigger of the control handle.
TILT BASKET UP
- Push and hold the control handle forward.
- Release it or release the trigger to stop.
TILT BASKET DOWN
- Push and hold the control handle back.
- Release it or release the trigger to stop.
26 - JIB ACTIVATION SWITCH AND LIGHT
Illustration = second version.
The control handle and the trigger on the control handle must be released before
activating the function.
- Push the
26A
switch forward and release it to activate the function.
Result: The light
26B
comes on. The function is activated when the lamp is on.
NOTE: It goes out if the control handle is not activated in the next 8 seconds.
- Press and hold down the trigger of the control handle.
RAISE THE JIB
- Push and hold the control handle forward.
- Release it or release the trigger to stop.
LOWER THE JIB
- Push and hold the control handle back.
- Release it or release the trigger to stop.
25A
25B
26A
26B
2 - 41
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
