TOW/WINCH Platform
t
IMPORTANT
t
The platform must be winched or towed in transport position. Winching the platform in working position is prohibited,
e2-DESCRIPTION: OPERATING THE PLATFORM: TRANSPORT/WORKING POSITION.
Always use an appropriate traction bar to tow the platform.
Always use a suitable winch for winching the platform.
Before putting the platform into freewheel:
- The platform must be on a level surface.
- The wheels must be chocked.
When towing or winching the platform:
- The basket must be empty.
- Do not exceed 5km/h
I - FREEWHEEL AND TOW/WINCH THE PLATFORM
- Attach the traction bar or the winch to the anchoring points on the platform chassis,
e2-DESCRIPTION: STICKERS: ANCHORING POINT.
- Switch the platform on.

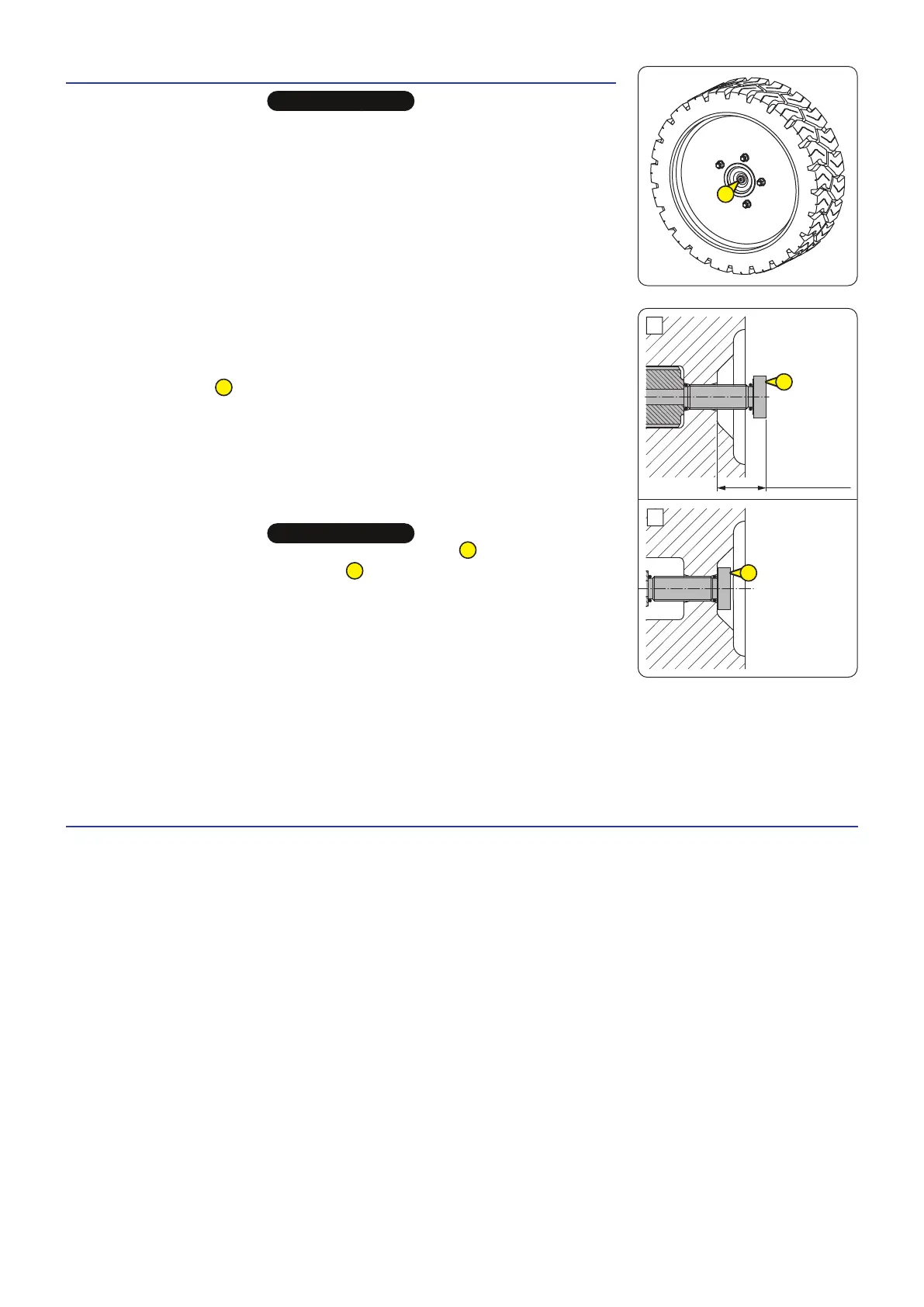

- Locate the screws
A
on the rear wheels, left and right-hand sides.
- Undo the screws by approximately 22mm.
- Make sure the path is free of any obstruction.
- Remove the chocks from the wheels.
- Winch or pull the platform slowly.
- Chock the wheels when the platform is in the desired position.
II- RESET THE BRAKES
t
IMPORTANT
t
It may be necessary to turn the wheels slightly when tightening the screws
A
to reset the brakes.
- Screw by hand and tighten the screws
A
:
• Tightening torque = 150 N.m.
- Detach the traction bar or the winch.
- Remove the chocks from the wheels.
- Turn the platform off.
TRANSPORT Platform
e2-DESCRIPTION: TRANSPORTING THE PLATFORM.
3 - 46
A
22 mm
I
II
A
A
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
