Manitou 170 AETJ L User Manual

- Mark out a wide safety area around the platform.
- Switch the platform on.
- Place the platform in transport position, e2-DESCRIPTION: OPERATING THE PLATFORM: TRANSPORT/WORKING POSITION.
- Put the turntable and basket in neutral position, e2-DESCRIPTION: OPERATING THE PLATFORM: TRANSPORT/WORKING
POSITION.
- Lower the jib completely.
- Lock the turntable, e2-DESCRIPTION: SAFETY COMPONENTS: TURNTABLE LOCKING PIN.
- Turn the platform off. Remove the key.
- Attach a lifting beam to the crane lifting hook.
- Attach lifting slings to the lifting beam and the 4 lifting points on the platform, e2-DESCRIPTION: STICKERS: LIFTING
POINT.
- Slowly lift the crane's lifting hook until the lifting slings are slightly taut.
- If necessary, adjust the lifting slings to prevent damage and keep the platform level.
- Ensure that there is nobody in the safety zone.
- Lift the platform slowly and move it to the arrival zone.
- Slowly lower the platform until the 4 wheels are in contact with the receiving surface.
- Lower the crane's lifting hook until the lifting slings are no longer taut.
- Detach the lifting slings.
3 - 45
170 AETJ L

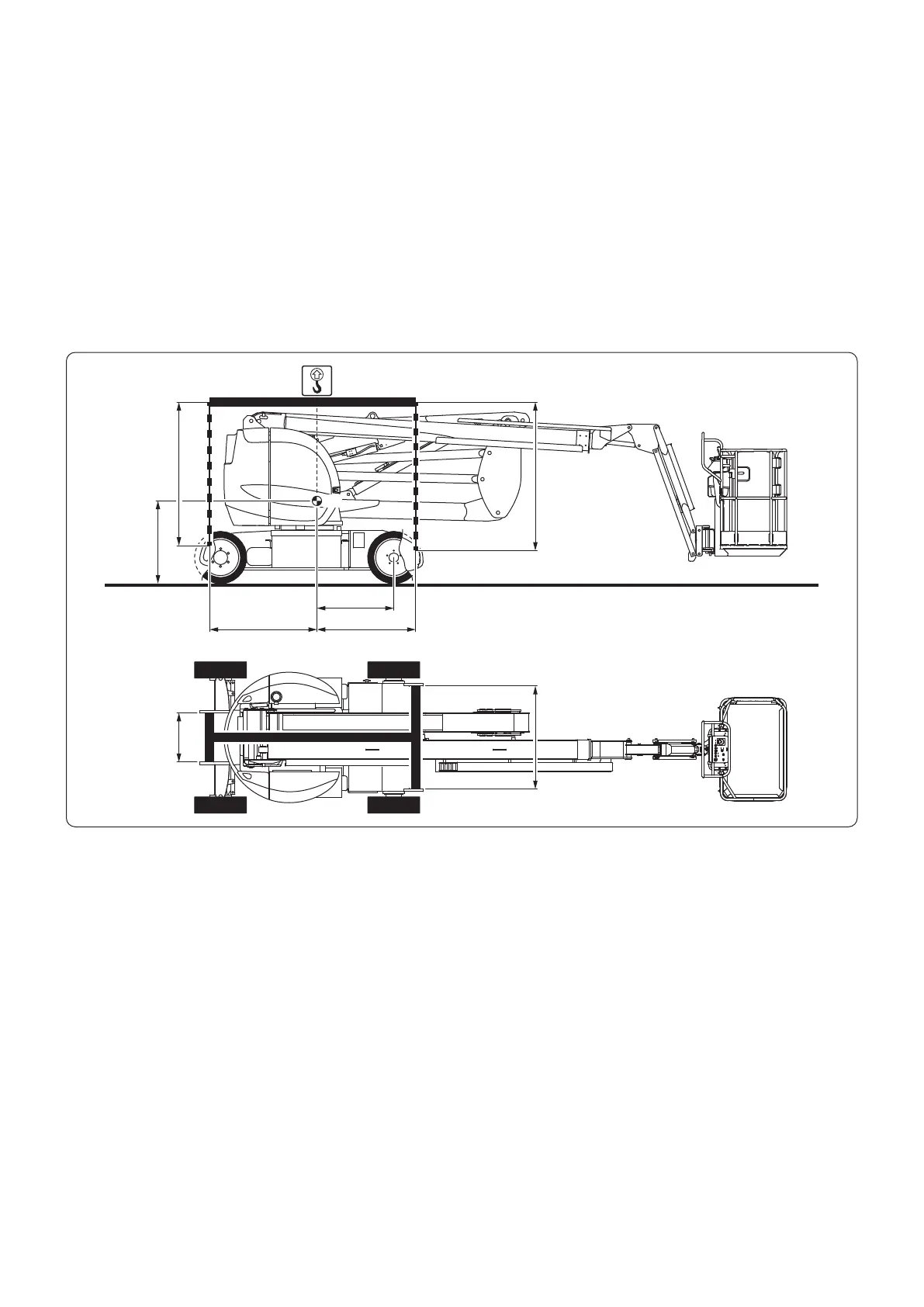

1190 mm
566 mm
2049 kg
2049 kg
1853 kg
1853 kg
1130 mm
1804 mm
877 mm
1249 mm
944 mm
1747 mm
CG
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
