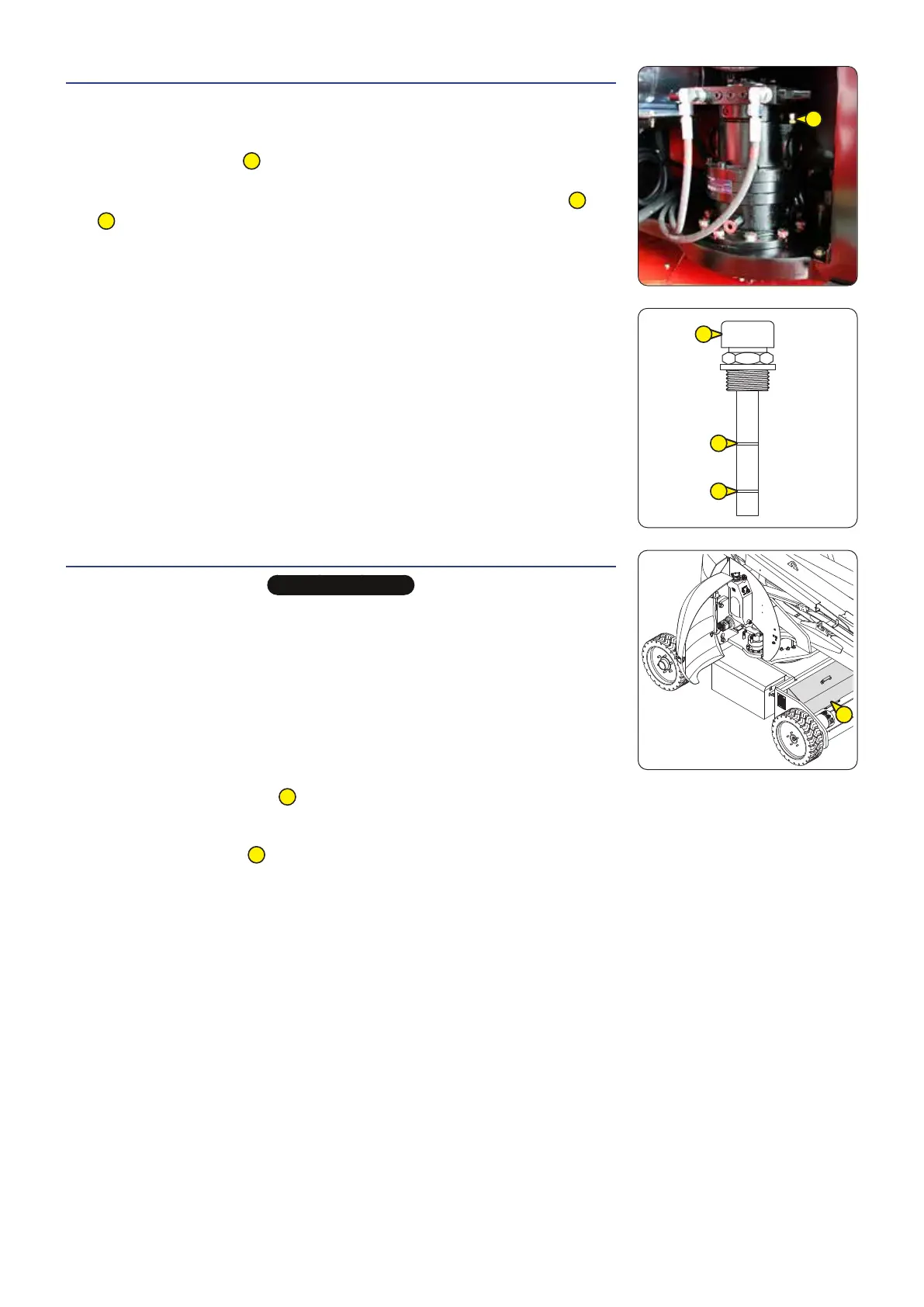

CHECK Hydraulic hoses
t
IMPORTANT
t
Always secure the raised arms using a suitable lifting device.
Always use a piece of paper or cardboard to check there are no hydraulic oil leaks.
Replace any damaged hydraulic hoses.
NOTE: The left turntable cover is open. The turntable cover is removed.
- Switch the platform on.
- Raise the secondary arm as far as possible. Secure the raised arms using a lifting
device.
- Turn the platform off.
- Open the right-hand turntable cover.
- Remove the front and rear chassis covers.
- Remove the electrical cover
1
.
- Check the condition of the hydraulic hoses and that there are no leaks.
- Check the wheel reduction gears for leaks.
- Put the electrical cover
1
back in place.
- Refit the front and rear chassis covers.
- Close the left and right-hand turntable covers.
- Switch the platform on.
- Fully lower the secondary arm.
- Turn the platform off.
- Check the condition of the other hydraulic hoses and check that there are no leaks.
CHECK Turntable motor oil level
NOTE: The turntable cover is removed.
- Open the left-hand turntable cover.
- Check for leaks.
- Remove the filler plug
1
.
- Clean the dipstick on the filler cap with a clean cloth and put it back in place.
- Remove the filler cap. The level is correct when the oil is between the 2
A
and
B
notches.
- If the level is low:
• Add oil until the correct level is reached, eLUBRICANTS.
• Refit the filler cap.
- If the level is correct:
• Refit the filler cap.
3 - 35
1
1
1
A
B
647536 (26/11/2020)
150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
