100H-PERIODIC MAINTENANCE - EVERY 100 HOURS OF SERVICE OR 6 MONTHS
ALSO PERFORM THE DAILY MAINTENANCE AND THE PERIODIC MAINTENANCE AT 50 HOURS OF SERVICE.

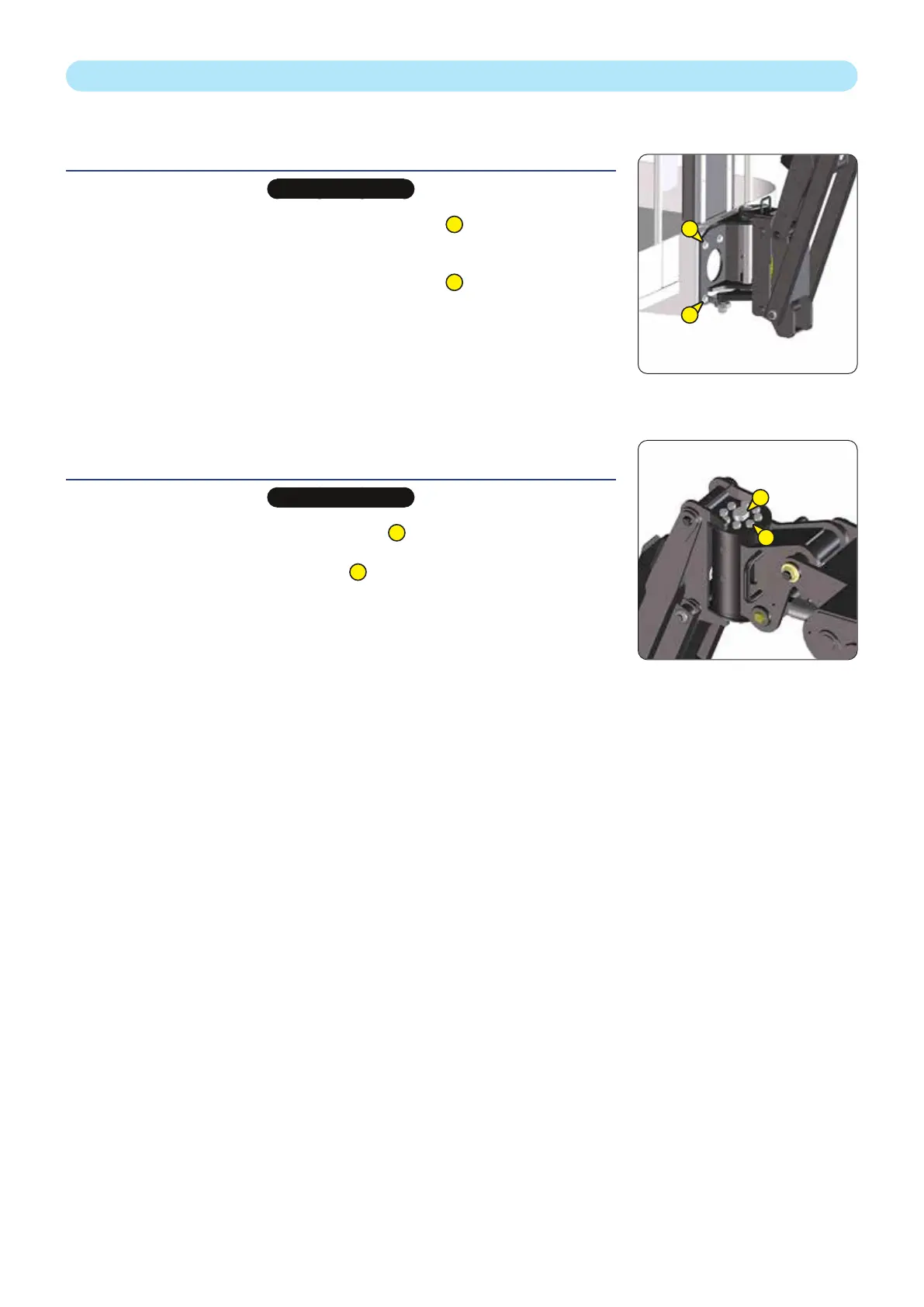

CHECK Basket nut tightening
t
IMPORTANT
t
Failure to follow this instruction may result in the basket falling.
- Check the tightening torques of all the fixing screws
1
on the basket, left and
right-hand sides (quantity=5):
• 69N.m ± 6.5N.m.
- Check the tightening torques of all the fixing screws
2
on the basket, left and
right-hand sides (quantity=2):
• 90N.m ± 9N.m.
CHECK Tightening of the fixing screws on the jib rotation cylinder
(150AETJ3D (150AETJC3D))
t
IMPORTANT
t
Failure to follow this instruction may result in the basket falling.
- Check all the fixing screw tightening torques
1
:
• 80N.m ± 8N.m.
- Check the tightening torque of the pin
2
:
• 80N.m ± 8N.m
3 - 30
2
1
2
1
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
