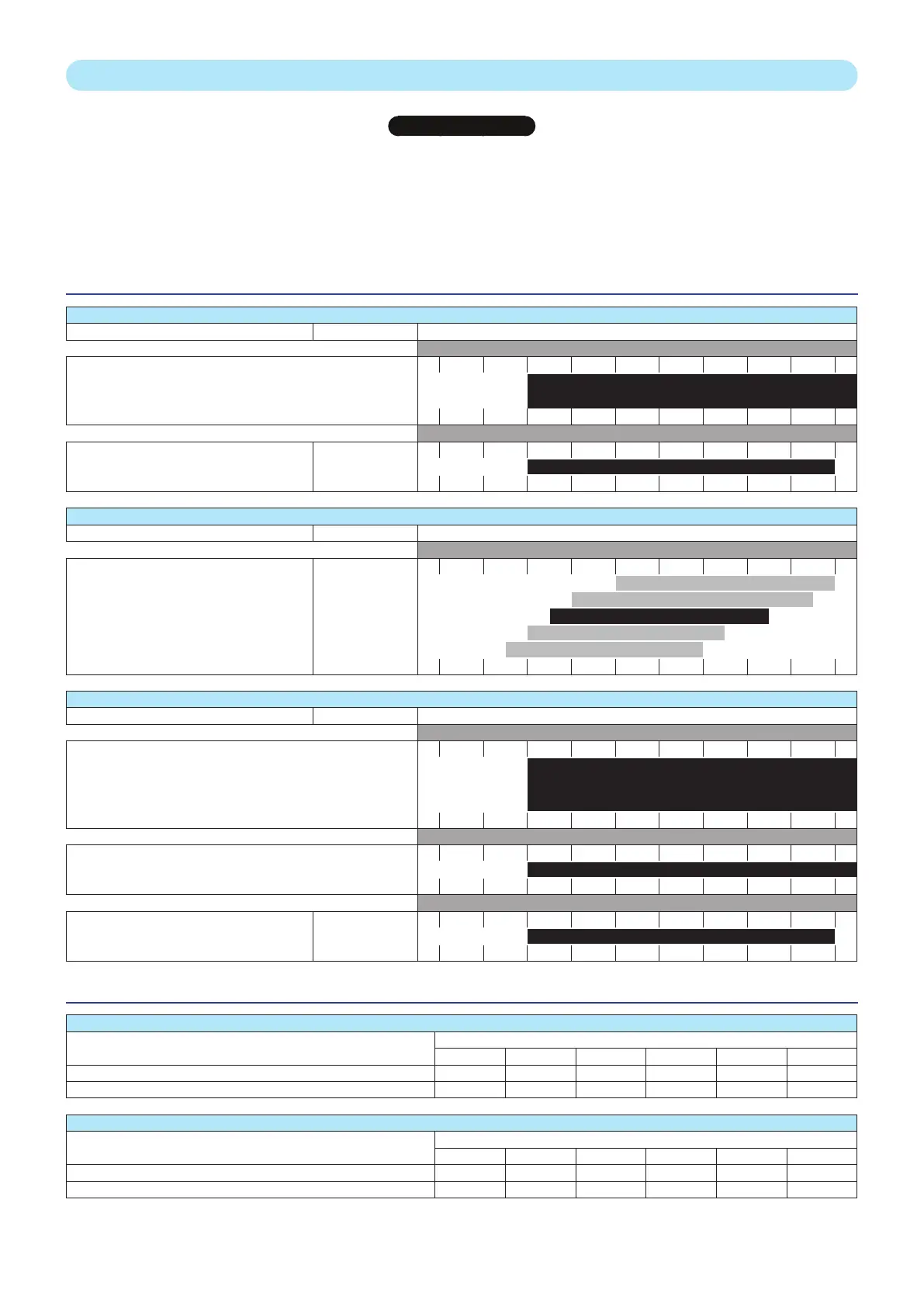

LUBRICANTS
t
IMPORTANT
t
USE THE RECOMMENDED LUBRICANTS:
- For topping up, oils may not be miscible.
- For oil changes, MANITOU oils are perfectly appropriate.
DIAGNOSTIC ANALYSIS OF OILS
If a service or maintenance contract has been set up with the dealer, a diagnostic analysis of the hydraulic oil may be requested
depending on the rate of use.
RECOMMENDATIONS
TRANSMISSION
DESCRIPTION CAPACITY RECOMMENDATION
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
FRONT STEERING PIVOTS
STEERING CYLINDER RING
MANITOU BLACK MULTI-PURPOSE LUBRICANT
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
WHEEL GEAR REDUCER 2 x0.8L MANITOU SAE80W90 MECHANICAL TRANSMISSION OIL
HYDRAULICS
DESCRIPTION CAPACITY RECOMMENDATION
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
HYDRAULIC OIL
First version
Second version
12 L
15 L
ISO VG 100
ISO VG 68
MANITOU HYDRAULIC OIL ISO VG 46
ISO VG 37
ISO VG 32
LIFTING STRUCTURE
DESCRIPTION CAPACITY RECOMMENDATION
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
GENERAL GREASING
CROWN GEAR BEARINGS
TELESCOPE
MANITOU BLACK MULTI-PURPOSE LUBRICANT
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
CROWN GEAR TEETH MANITOU MULTI-PURPOSE EXTREME PRESSURE LUBRICANT
-40°C -30°C -20°C -10°C 0°C 10°C 20°C 30°C 40°C 50°C
TURNTABLE MOTOR 0.85 L MANITOU MECHANICAL TRANSMISSION OIL SAE80W90
PACKAGING
OIL
PRODUCT
PACKAGING - PART NO.
1 LITER 2 LITERS 5 LITERS 20 LITERS 55 LITERS 209 LITERS
- MANITOU ISO VG 46 HYDRAULIC FLUID 545500 582297 546108 546109
- MANITOU SAE80W90 MECHANICAL TRANSMISSION OIL 499237 720184 546330 546221 546220
GREASE
PRODUCT
PACKAGING - PART NO.
400 ML 400 GR 1 KG 5 KG 20 KG 50 KG
- MANITOU MULTI-PURPOSE EXTREME PRESSURE LUBRICANT 947765
- MANITOU BLACK MULTI-PURPOSE LUBRICANT 947766 161590 499235
3 - 10
647536 (26/11/2020) 150 AETJ/AETJ 3D - 150 AETJ C/AETJ C 3D - 170 AETJ L
