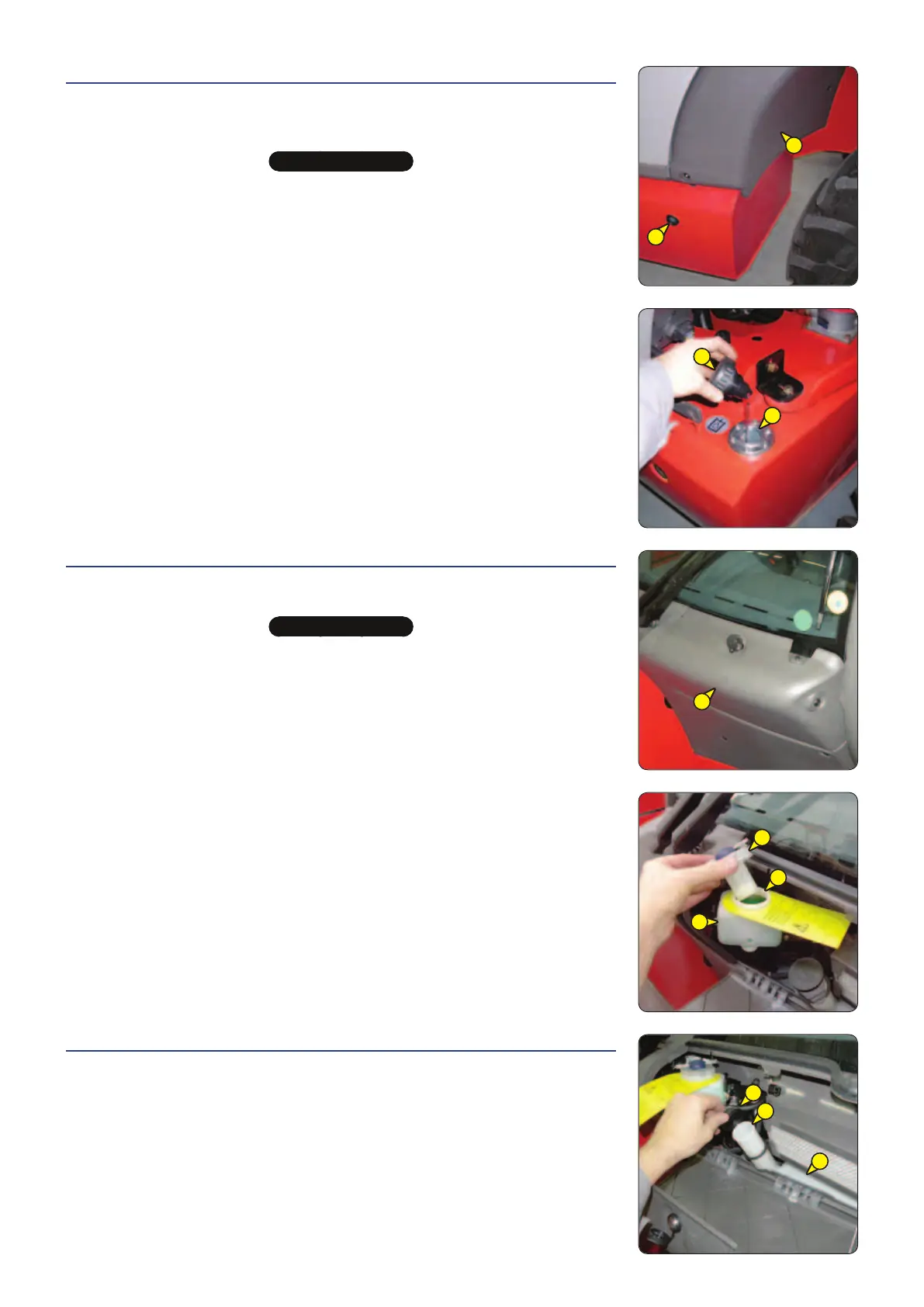

B6 – HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the engine stopped, and the boom retracted
and lowered as far as possible.

IMPORTANT

Use a clean funnel and clean the underside of the oil drum before filling.
- Check dipstick 1, the correct level must stand at the level of the red point.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove the protective casing 2.
- Remove cap 3.
- Add oil through filler port 4.
- Refit the cap.
- Visually check that there is no leakage in the tank and pipes.
- Refit the protective casing.
B7 – BRAKE OIL LEVEL
CHECK
Place the lift truck on level ground.

IMPORTANT

If the brake oil level is abnormal consult your dealer.
- Open the protective casing 1 with the ignition key.
- Check tank 2. The level is correct when it is situated at the MAX level on the tank.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 3.
- Add oil through filler port 4.
- Refit the cap.
- Visually check that there is no leakage in the tank and pipes.
B8 – WINDSCREEN WASHER LIQUID LEVEL
CHECK
- Visually check the level in tank 1.
- If necessary add windscreen washer liquid (see: 3 - MAINTENANCE: LUBRICANTS
AND FUEL).
- Remove cap 2.
- Add windscreen washer liquid through filler port 3.
- Refit the cap.
1
2
3
4
1
2
3
4
1
2
3
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
