Manitou MT 1435 EASY 75D ST3B S1 User Manual

3 - 33
F4 – HYDRAULIC OIL
DRAIN
F5 – BREATHER FOR THE HYDRAULIC OIL TANK
REPLACE
F6 – SUCTION STRAINER FOR HYDRAULIC OIL TANK
CLEAN
F7 – BRAKE ACCUMULATOR UNIT FILTER
REPLACE
Place the lift truck on level ground with the engine stopped, and the boom retracted
and lowered as far as possible.

IMPORTANT

Before any intervention, thoroughly clean the area surrounding
the drain plug and the suction strainer on the hydraulic tank.
Use a clean container and funnel and clean the top of the oil drum before filling.
Dispose of the drain oil in an ecological manner.

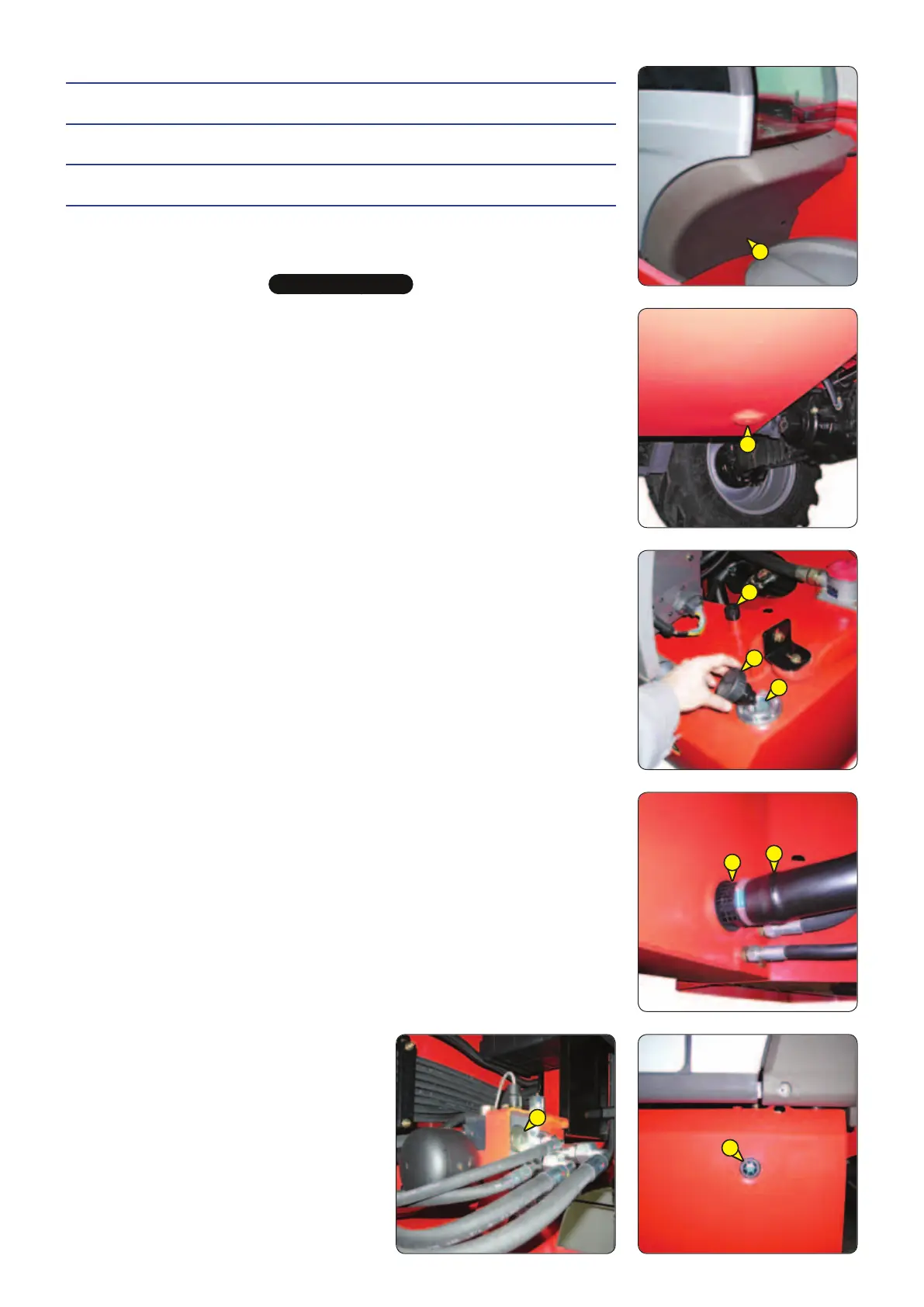

DRAINING THE OIL
- Remove the protective casing 1.
- Place a container under drain plug 2 and unscrew the plug.
- Remove the filling plug 3 to ensure that the oil is drained properly.
REPLACING THE BREATHER
- Unscrew the breather 4 and replace it with a new one (see: 3 - MAINTENANCE:
FILTERS, CARTRIDGES AND BELTS).
CLEANING THE STRAINER
- Disconnect hose 5.
- Remove and clean the suction strainer 6 using a compressed air jet, check its condition
and replace if necessary (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Refit the suction strainer making sure the seal is in the correct position.
REPLACING THE BRAKE ACCUMULATOR UNIT FILTER
- Unscrew plug 7, remove the filter and replace with a new one.
- Refit and tighten plug 7 (tightening torque 70 to 80 N.m).
FILLING UP THE OIL
- Refit and tighten the drain plug 2 (tightening torque 72 to 88 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through filler port 8.
- Observe the oil level on dipstick 9, the oil level should be at the level of the red point.
- Check for any possible leaks at the drain plug.
- Refit the filler plug 3.
HYDRAULIC CIRCUIT DECONTAMINATION
- Let the engine run (accelerator pedal at mid position) for 5 minutes without using
any accessories on the lift truck, then for 5 more minutes while using all the hydraulic
movements (except the steering system and the service brakes).
- Accelerate the engine at full speed for 1 minute, then activate the steering system
and the service brakes.
- This operation makes a pollution abatement of the circuit possible through the
hydraulic return oil filter.
1
2
3
4
8
5
6
7
9
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
