Manitou MT 1435 EASY 75D ST3B S1 User Manual

3 - 37

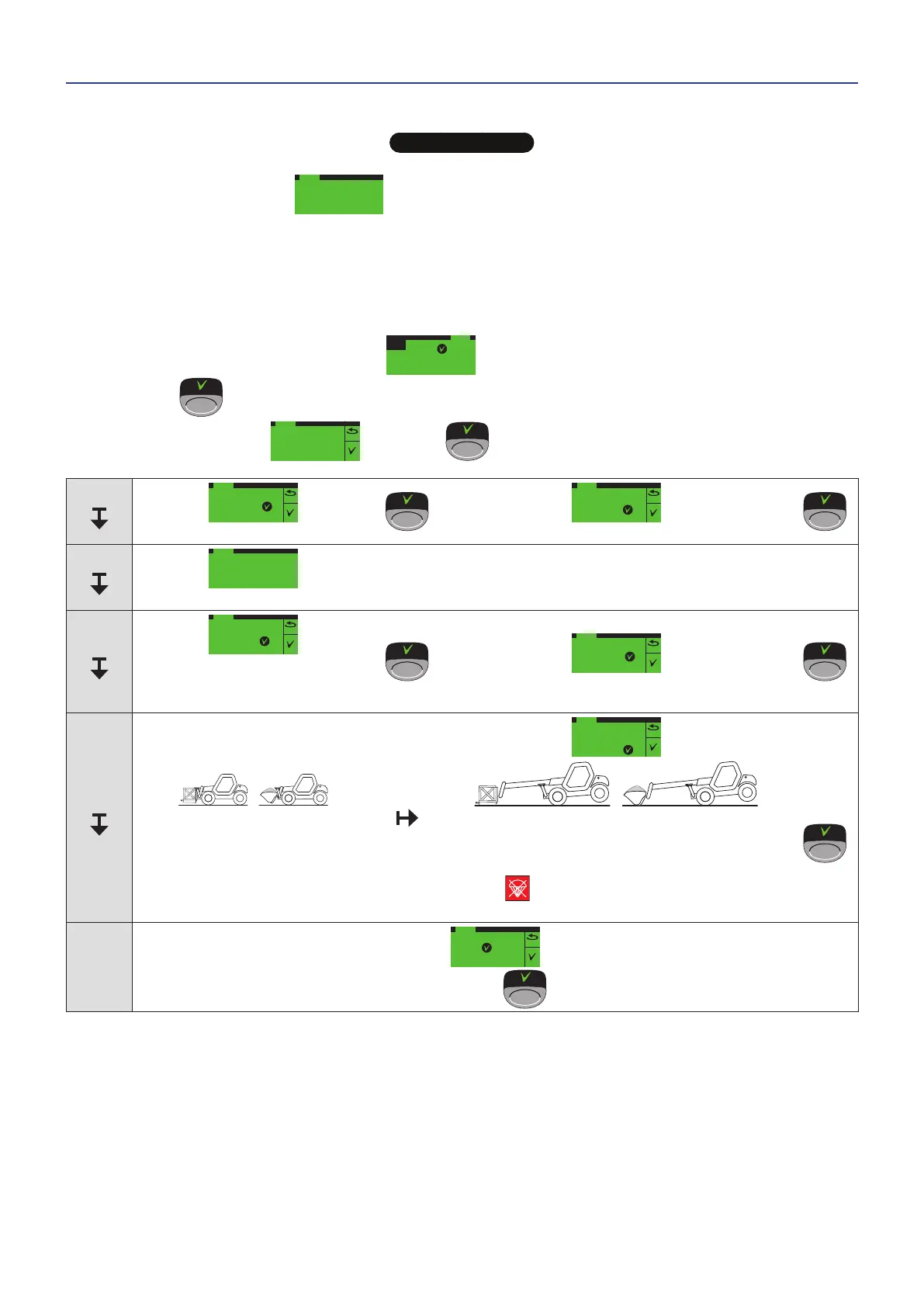

G2 – LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE
RESET
According to the use of the lift truck, the device may require to be periodically reset. This procedure simplifies the operation.

IMPORTANT

Scrupulously follow the boom positioning instructions.
The appearance of the screen
GAUGE
Calibration incomplete or failed
indicates a failure to obey an instruction, a cancellation request or a late response.
If in doubt, contact your dealer.
When the reset is completed, check the operation of the longitudinal stability limiter and warning device (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).
- Provide a fork carrier or a bucket and a load corresponding to at least half the lift truck's rated capacity.
- Preferably perform the reset when the lift truck is still cold (before it is used) or ensure that the temperature of the rear
axle is not more than 50°C.
- Place the lift truck on flat, level ground with the wheels straight.
- Display the GAUGE "reset strain gauge" menu
RESET ADMIN
SECU
GAUGE
ERASE CALIB
Press For
Fast Calibration
Mode
(see: 2 - DESCRIPTION: 6D - SCREEN DISPLAY: MENU SCREEN)
and validate
.
- Enter the CUSTOMER code
CODE
0 0 _ _
and validate .
STAGE 1
GAUGE
Fully extend the stabilizers
then press
1/6
- Fully extend the stabilisers.
GAUGE
Lift the boom to max position,
fully retract the boom
then press
2/6
- Fully raise the boom with the telescopes fully retracted.
STAGE 2
GAUGE
Wait…
Calibration in progress
- Calibration in progress…
STAGE 3
GAUGE
Completly lower the
boom on the frame,
then press
3/6
- Fully lower the boom with the engine running
at full revs and the hydraulic control at the
maximum setting.
GAUGE
Rise stabilizers,
then press
4/6
- Fully raise the stabilisers.
STAGE 4
/
- With the fork carriage or the bucket and a load.
Boom fully retracted in the lowered position,
approximately 20 centimetres from the ground.
GAUGE
Use override switch to
extend the boom until rear
axle is lifted then wait 5s
and press
5/6
/
Keep the load as close to the ground as possible throughout this
operation.
-
Hold down the disable the "aggravating" hydraulic movement cut-off
button
(indicator lamp lit), and telescope the boom until the rear
wheels leave the ground.
Wait 5
seconds and
validate
FINISH
GAUGE
Retract the boom then
press to store
new calibration
6/6
- Perform telescope retraction to restore the situation, then press the button to record the new parameters.
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
