3-24

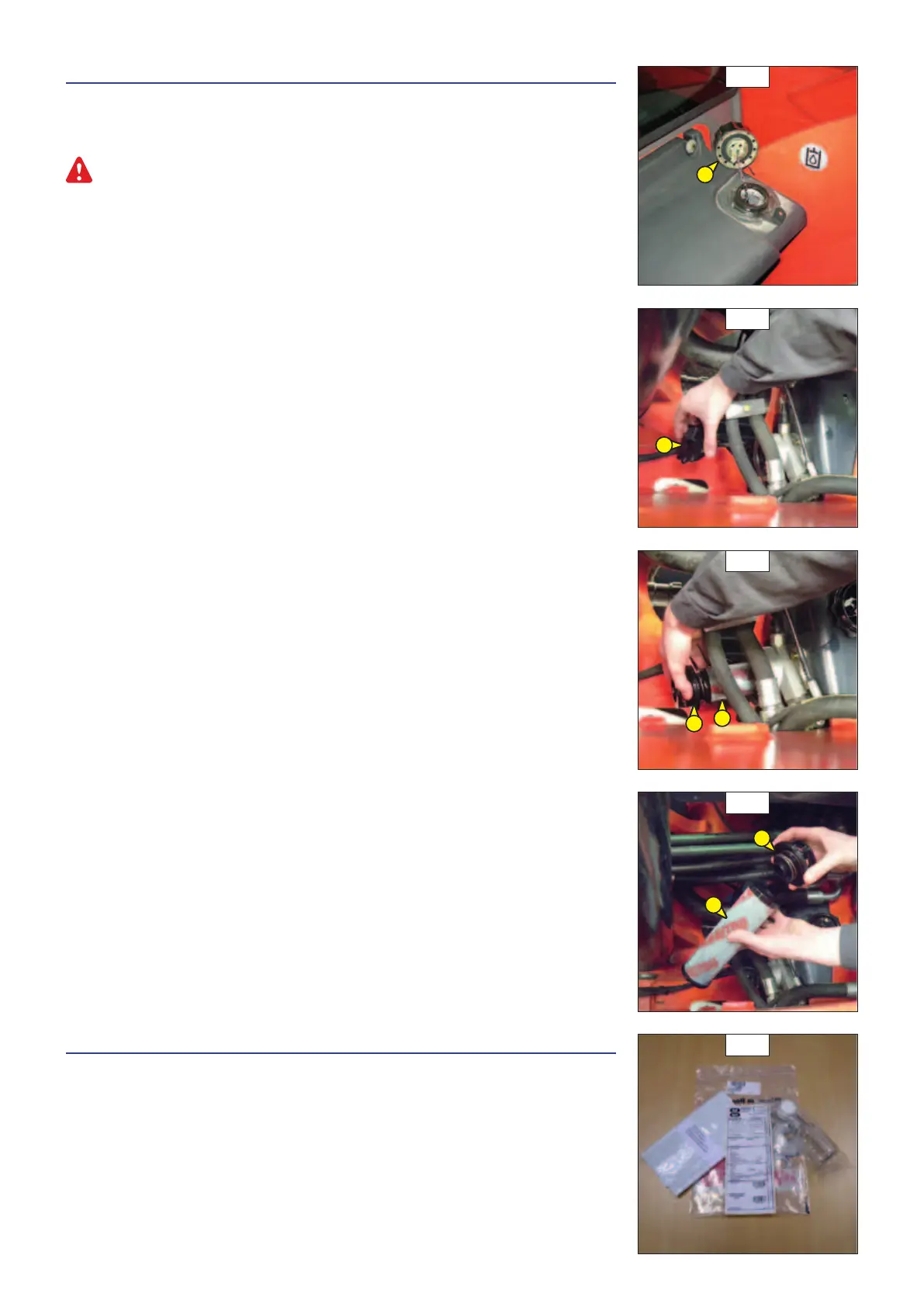

D5 - HYDRAULIC RETURN OIL FILTER CARTRIDGE
CHANGE
Stop the I.C. engine on level ground, with the jib raised and remove the pressure from the
circuits by acting on the hydraulic controls.
Before carrying out any work, thoroughly clean the areas concerned by these maintenance operations.
- Remove plug 1 (fig. D5/1);
- Place a container under hydraulic return oil filter.
- Unscrew cover 2 (fig. D5/2).
- Wait a few seconds for the oil to flow into the container.
- Slowly take out filter cartridge assembly 3 and 4 (fig. D5/3).
- Separate the head 3 from the filter cartridge 4 (fig. D
5/4
) with a twisting motion.
- Refit the head onto a new cartridge (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).
- Refit the assembly in place and retighten cover 2 (fig. D
5/2
).
- Put back cap 1 (fig. D5/1).
D6 - HYDRAULIC OIL
CHECK
- MANITOU recommends analyzing the hydraulic oil after the first 500 hours of lift truck operation.
Following that, MANITOU requests that the oil is analyzed every 500 hours of operation. The
results will determine whether or not the hydraulic oil is changed (contact your dealer).
MANITOU oil analysis kit Part No. 958162.
D5/1
1
D5/2
2
D5/3
3
4
D5/4
3
4
D6
647421 (22/08/2017)
MT-X 625 Série 2-E3 + COMFORT
