D7 - TRANSFER BOX OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped and the transfer
box oil still warm.
Dispose of the drain oil in an ecological manner.
- Remove access panel 1 (fig. D7/1).
- Place a container under drain plug 2 (fig. D7/2) and unscrew the plug.
- Remove level and filling plug 3 (fig. D7/2) in order to ensure that the oil is
drained properly.
- Refit and tighten drain plug 2 (fig. D7/2) (Tightening torque 34 to 49 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through filler
port 3 (fig. D7/2).
- The level is correct when the oil level is flush with the edge of the hole.
- Check for any possible leaks at the drain plug.
- Refit and tighten the level and filling plug 3 (fig. D7/2) (tightening torque 34 to 49 N.m).
D8 - FRONT AXLE DIFFERENTIAL OIL
DRAIN
Place the lift truck on level ground with the I.C. engine stopped and the d oil still warm.
Dispose of the drain oil in an ecological manner.
- Place a container under drain plug 1 (fig. D8) and unscrew the plug.
- Remove level and filling plug 2 (fig. D8) in order to ensure that the oil is drained properly.
- Refit and tighten drain plug 1 (fig. D8) (tightening torque 34 to 49 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through filler port 2 (fig. D8).
- The level is correct when the oil level is flush with the edge of the hole.
- Check for any possible leaks at the drain plug.
- Refit and tighten the level and filling plug 2 (fig. D8) (tightening torque 34 to 49 N.m).

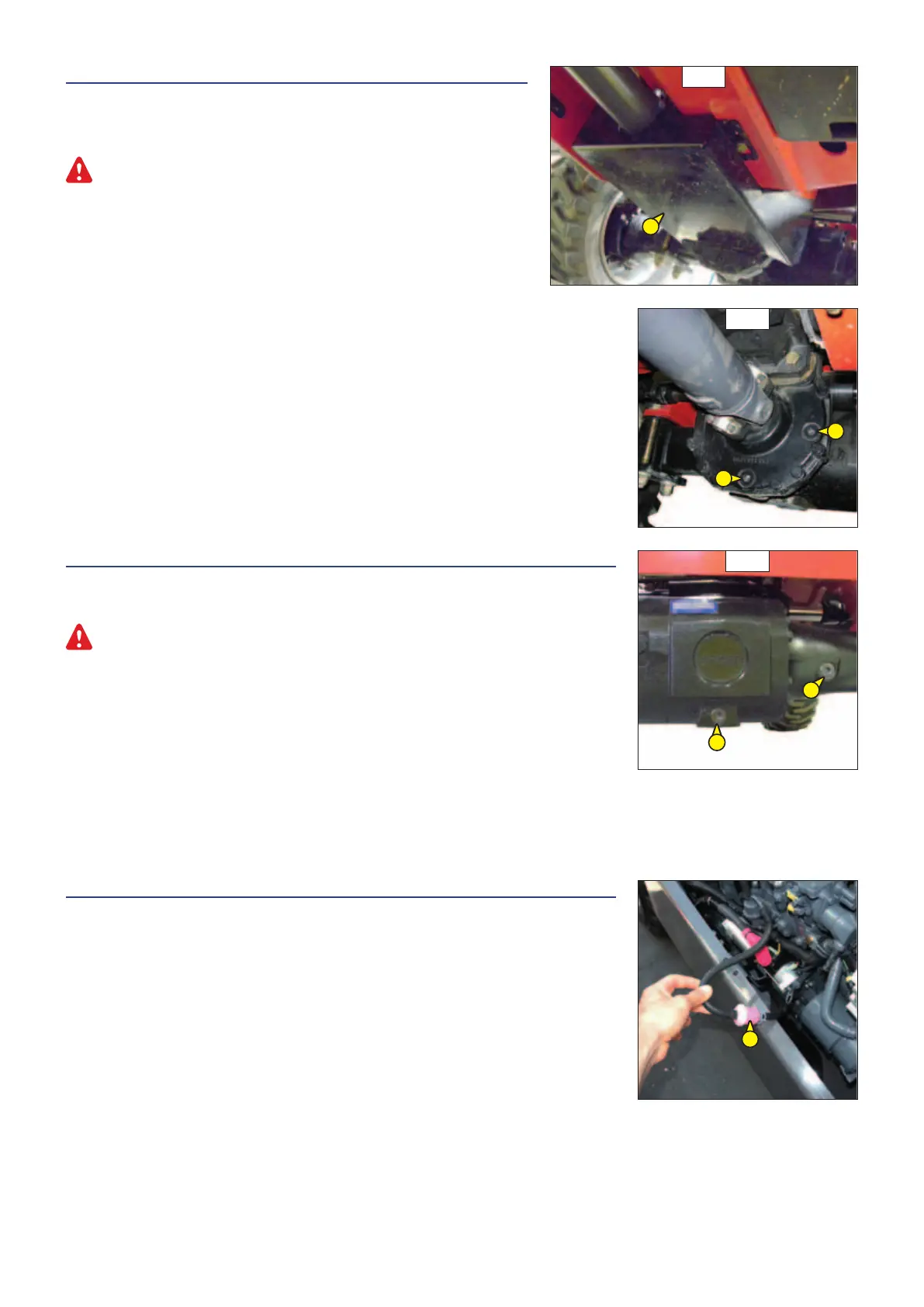

D8
2
1
D7/2
3
2
D7/1
1
D9 - FUEL PRE-FILTER
CHANGE
- To replace the prefilter 1 by a new (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
1
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
