1 - DRIVER’S SEAT
DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.

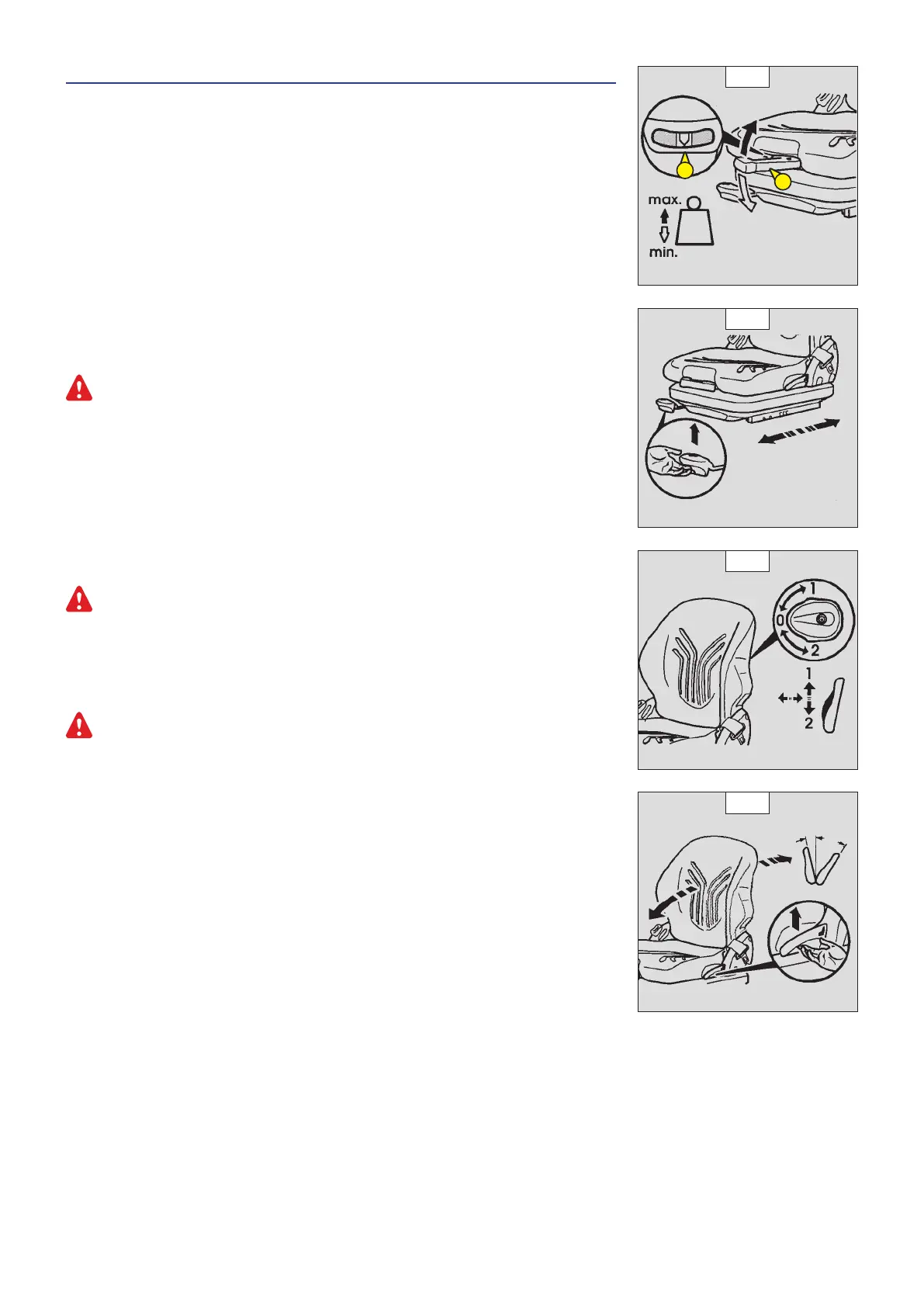

WEIGHT ADJUSTMENT (FIG. A)
Adjust the weight when the driver is sitting on the seat.
- Pull the weight adjustment lever 1 fully out.
- Move the weight adjustment lever 1 up to increase the weight or down to reduce it.
- There are ten possible positions between the min and max weights. Before each run, return the
lever to the central position. The max. or min. position is indicated by a freely travelling lever.
- The driver's weight is correctly adjusted when the jib is in the centre of indicator 2.
- After completing weight adjustment, fully lower the lever 1.
NOTE: To avoid any health problems, it is recommended that the weight should be checked and
adjusted before starting up the lift truck.
LONGITUDINAL ADJUSTMENT (FIG. B)
- Adjust the locking lever until you reach the position required. This then locks and the seat will
not shift into another position.
Only operate the lever by its recessed section and do not grasp from below, at the risk of crushing the hand.
LUMBAR ADJUSTMENT (FIG. C)
This increases the comfort of the seat and the driver’s freedom of movement.
- Turn the knob to 1 to adjust the height and depth of the lumbar support of the upper part of
the back-rest.
- Turn the knob to 2 to adjust the height and depth of the lumbar support of the lower part of
the back-rest.
ANGLE ADJUSTMENT OF THE BACK-REST (FIG. D)
- Support the back-rest, pull the lever and position the back-rest to find the desired position.
If you do not support the back-rest when making adjustments, it will swing forwards.
MAINTENANCE
Dirt may adversely affect the correct functioning of the seat. For this reason, make sure your seat
is always clean.
- The cushions do not require to be removed from the seat frame for cleaning.
A rocking head-rest increases the risk of an accident!
First check the resistance of the fabric on a small concealed area before using any fabric and
plastic cleaner.
D
B
C
A
1
2
647421 (22/08/2017)
MT-X 625 Série 2-E3 + COMFORT
