RED BATTERY CHARGE INDICATOR LIGHT
If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause (electric circuit,
alternator belt, alternator, etc.).
GREEN DIRECTION INDICATOR LAMP
BLUE MAIN BEAM LAMP

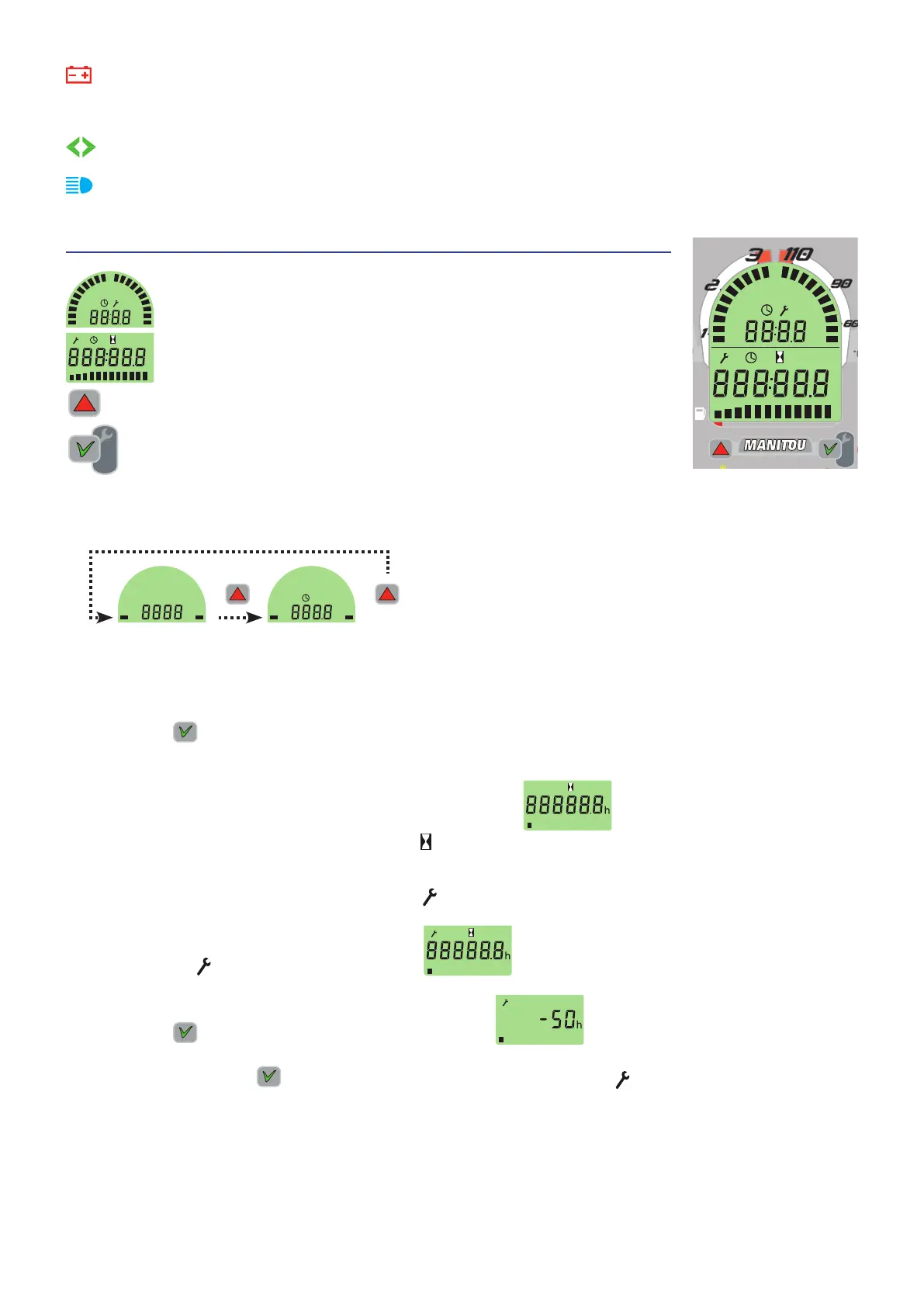

6B - SCREEN DISPLAY
km/h
pm
°C
°F
V
%
am
rpm
miles
mph
UPPER SCREEN DISPLAY
h
km/h
milesmph
rpm
LOWER SCREEN DISPLAY
SCROLL BUTTON
RAZ
VALIDATION, RESET AND ERROR CODE BUTTON
UPPER SCREEN DISPLAY
Switch on the lift truck ignition, by default, the screen will show the rev counter. Press the scroll button to switch from one screen to the
other in turn.
rpm
Rev counter. Partial hour meter
(see resetting).
RESETTING THE PARTIAL HOUR METER
- Display the partial hour meter screen.
- Press the button
for two seconds, resetting is confirmed by a beep.
LOWER SCREEN DISPLAY
Switch on the lift truck ignition, by default, the screen will show the hour meter
, i.e. the total number of hours the lift truck
has been used. As soon as the engine is running, the flashing
pictogram records the hours of operation.
MAINTENANCE INTERVAL
NOTE: When the new lift truck is started, the maintenance key
will logically be displayed to provide a reminder to replace the engine oil
and the oil filter after the first 50 hours of operation (see: 3 - MAINTENANCE: SERVICING SCHEDULE).
The maintenance key
appears on the hour meter screen 50 hours before the maintenance deadline and generates
an audible beep.
- Press the button
to display the remaining time before maintenance . In the event that the deadline is exceeded, the
hours are shown with a plus sign.
- Press once more on the button
to return to the hour meter screen. The maintenance key will be displayed for information.
- Contact your dealer to carry out the necessary maintenance operations and reset the maintenance interval.
NOTE: The frequency interval displayed by default is 500 hours, this interval can be modified. Please contract your dealer.
RAZ
h
km/h
km/h
miles
mph
pm
°C
°F
V
%
am
rpm
rpm
miles
mph
