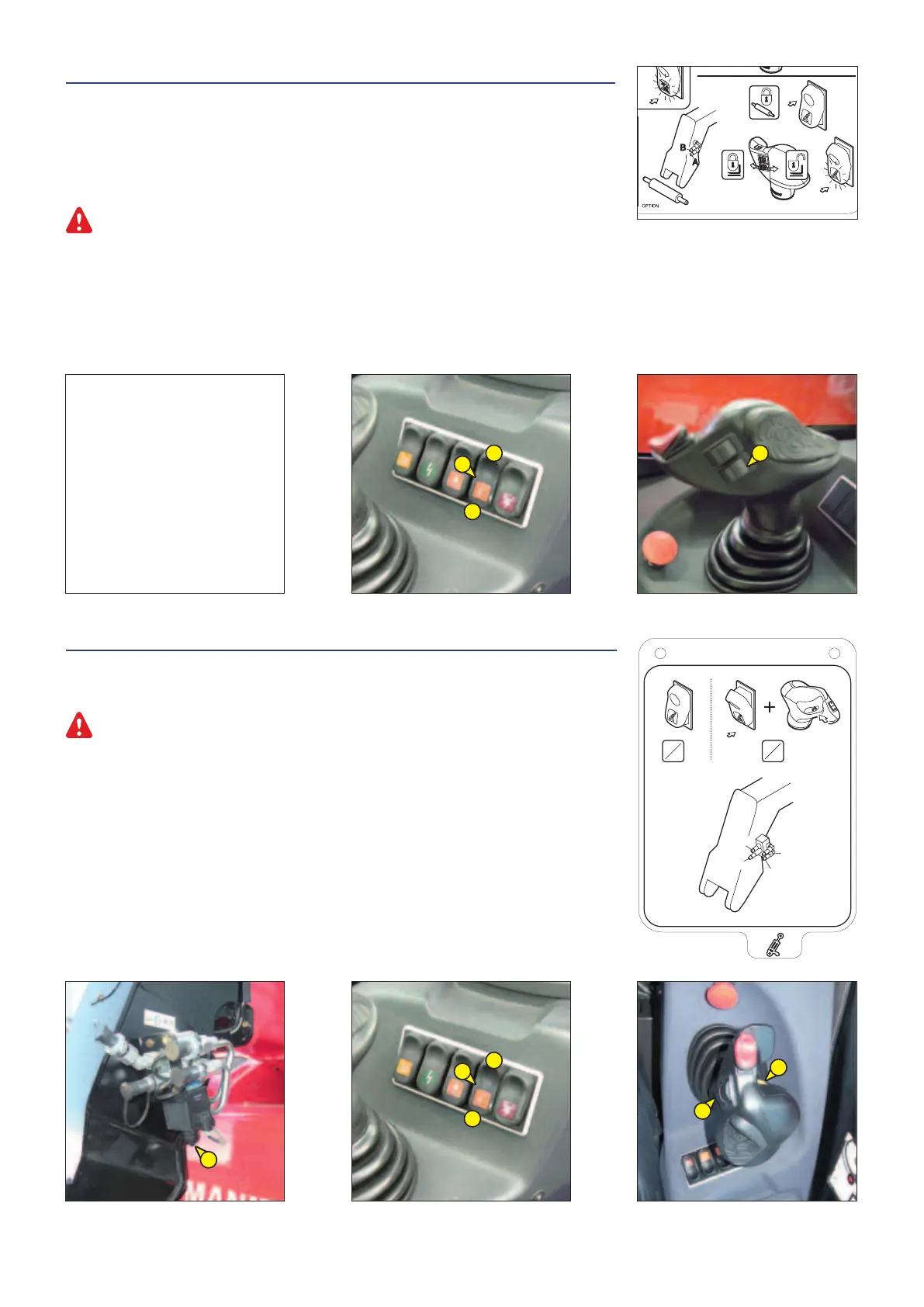

9 - HYDRAULIC ATTACHMENT LOCKING
Enables the attachment to be locked onto the carriage and a hydraulic attachment to be used by
the same hydraulic circuit.
ATTACHMENT LOCKING CONTROL
- Set valve 1 to position A and place switch 2 in position B (indicator light on).
- Push button 3 forward to lock the attachment and backward to release it.
Once the attachment is locked, return switch 2 to position A to prevent accidental release of the attachment.
ATTACHMENT OPERATION CONTROL
- Set the valve to position B.
- Push button 3 forward or backward.
10 - JIB HEAD SOLENOID VALVE
(MT-X 625 COMFORT)
Enables use of two hydraulic functions on the attachment circuit.
To make connection of the rapid connectors easier, decompress the hydraulic circuit by pressing button 1
on the solenoid valve.
ATTACHMENT LINE A1/B1 CONTROL
- Set switch 1 to position A (indicator light off).
- Push button 2 forward or backward.
ATTACHMENT LINE A2/B2 CONTROL
- Set switch 1 to position B (indicator light on) and hold down button 3.
- Push button 2 forward or backward.
2
B
A
3
N°286989
N°290439
A1
B1
A2
B2
A1
B1
A2
B2
1
3
2
2
B
A
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
