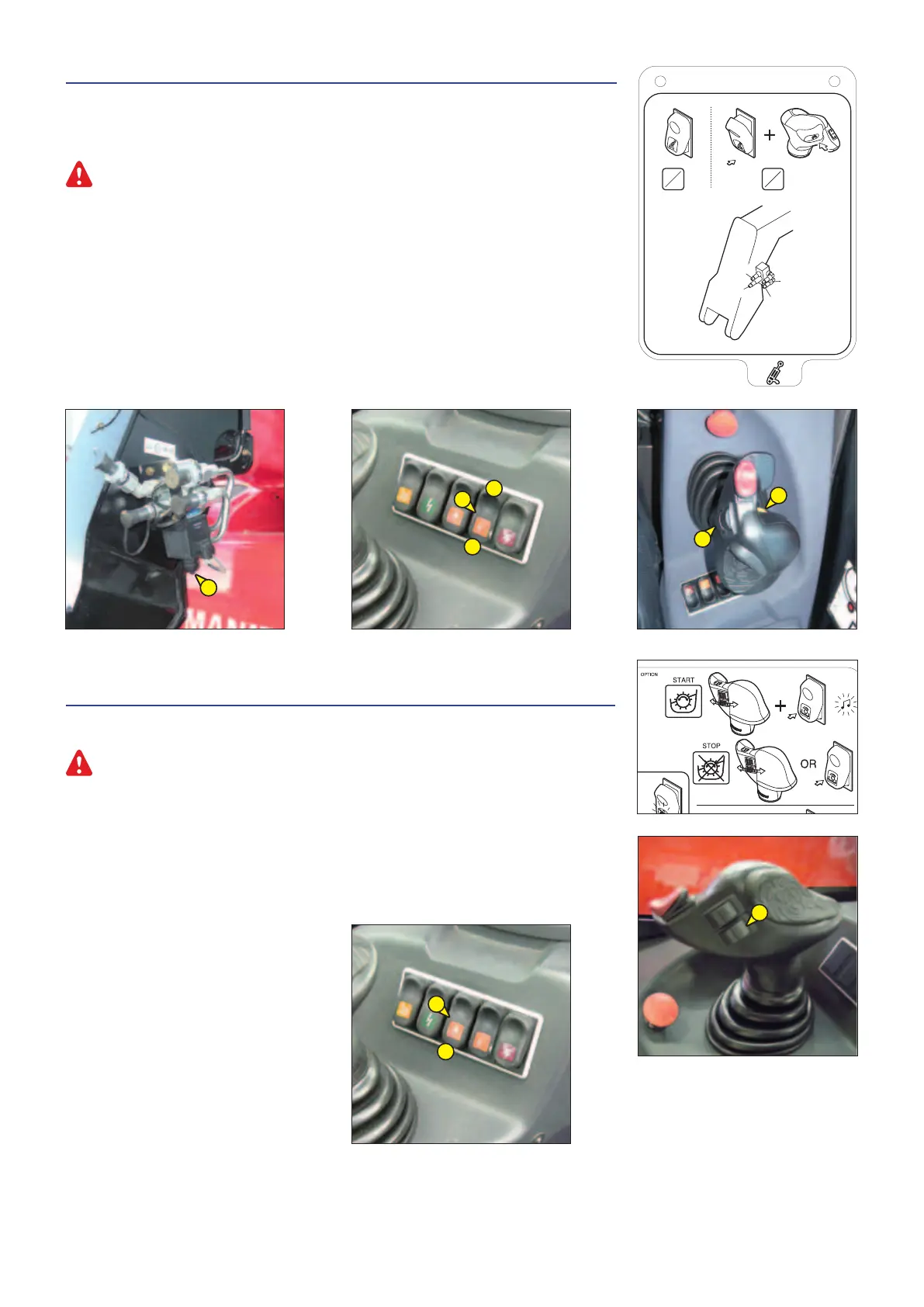

11 - JIB HEAD SOLENOID VALVE + HYDRAULIC ATTACHMENT LOCKING
(MT-X 625 COMFORT)
Enables the use of a hydraulic function and hydraulic locking of the attachment on the
attachment circuit.
To make connection of the rapid connectors easier, decompress the hydraulic circuit by pressing button 1 on
the solenoid valve.
ATTACHMENT LINE A1/B1 CONTROL
- Set switch 1 to position A (indicator light off).
- Push button 2 forward or backward.
ATTACHMENT A2/B2 LOCKING CONTROL
- Set switch 1 to position B (indicator light on) and hold down button 3.
- Push button 2 forward to lock the attachment and backward to release it.
12 - ATTACHMENT HYDRAULIC CONTROL FORCED OPERATION
(MT-X 625 COMFORT)
This OPTION must only be used with an attachment requiring continuous hydraulic movement of type: brush,
supply bucket, mixer, spray… It is strictly forbidden in handling operations and at all other events (winch,
crane jib, crane jib with winch, hook, etc.).
CONTINUOUS HYDRAULIC MOVEMENT OF THE ATTACHMENT
- Simultaneously hold button 1 in the forward or backward position (according to the type of
attachment) and switch 2 in position B (indicator light on). An audible beep will sound when
activated. Release button 1 and switch 2.
- To stop the movement, push again on the bottom of switch 1, or press pushbutton 2.
NOTE: If the operator leaves the driver's cab, the continuous hydraulic movement will
automatically stop and must b e
restarted.
