13 - HAND-OPERATED ACCELERATOR
The hand-operated accelerator adjusts the engine speed and controls the hydraulic flow rate in
the attachment circuit. The maximum speed using the hand-operated accelerator is sufficient to
obtain the full hydraulic flow rate in the attachment circuit.

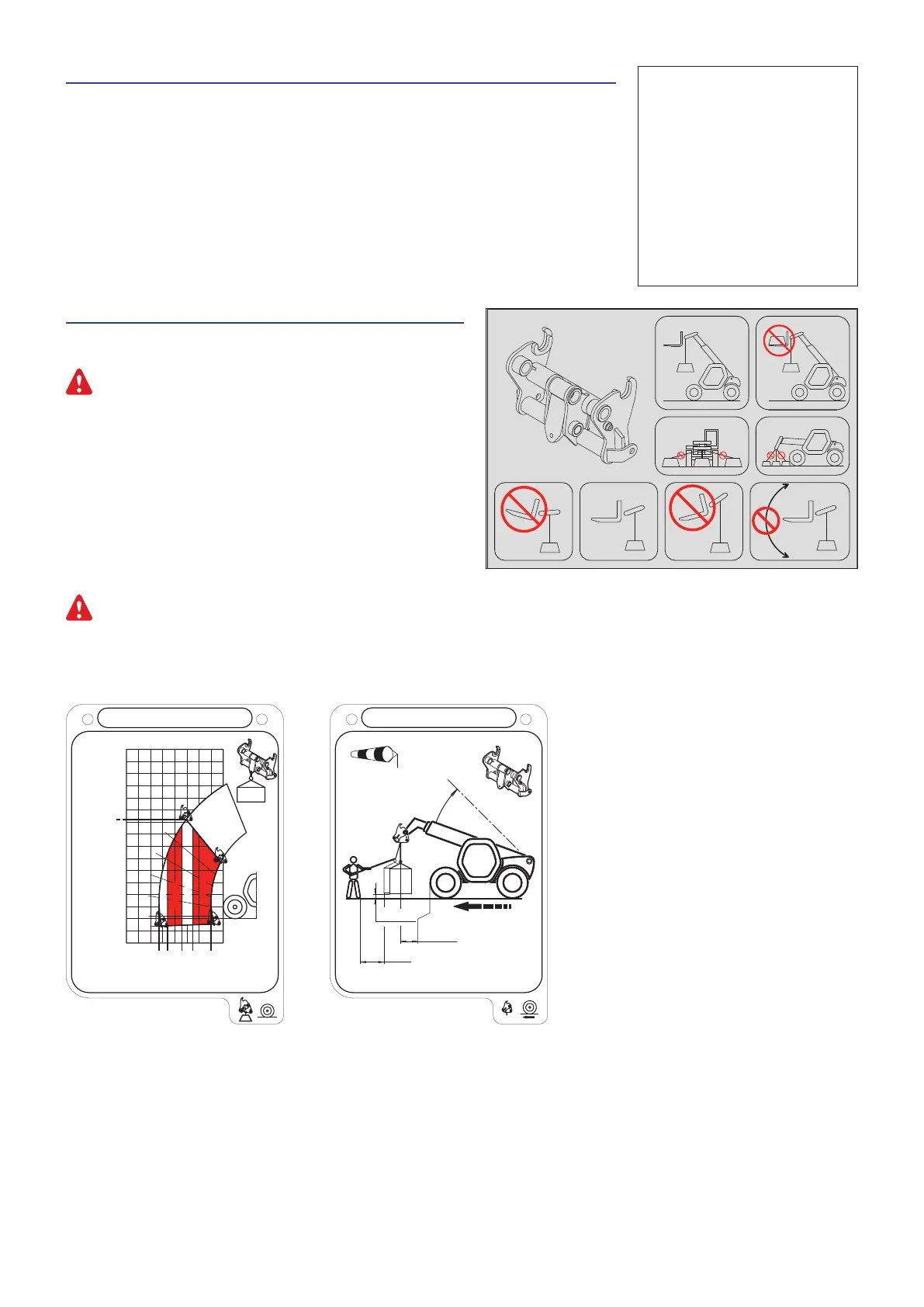

14 - LIFTING RING ON SINGLE CARRIAGE
CONDITIONS OF USE
Follow the instructions given in your lift truck's instruction manual (see: 1 -
OPERATING AND SAFETY INSTRUCTIONS ON HANDLING LOADS), in addition
to those given below.
- The lifting ring must be used WITHOUT FORKS AND ATTACHMENTS,
but the angle of inclination of the carriage must be same as when
the forks are used in the horizontal position.
- Check the maximum permitted angle, which is 45°.
- Do not change the angle of the carriage while using the lifting ring.
- The lifting hook, the chains and slings shall have a minimum capacity
of 3000 kg with a factor of safety against breakage of 4.
LOAD CHARTS AND FUNCTION SHEETS
The load charts are given for use without forks and without attachments.
N°319017
45°
10°
20°
30°
40°
0°
-2°
-1
0
1
2
3
4
5
6
7
0m1234
4.10
0.50
1.25 1.70
2.30 2.65
kg
kg
1200KG
1500KG
2000KG
2500KG
0KG
MT / MT-X 625 + TS AS 2.5T
36km/h Maxi
(10m/s)
N°319018
45°
Maxi
MT / MT-X 625 + TS AS 2.5T
2500kg
MAXI
0,3m Maxi
1,00m Maxi
3m Mini
1,44km/h (0,4m/s)
Maxi
