10.2.14Convotherm 4 20.20 injection gas appliance

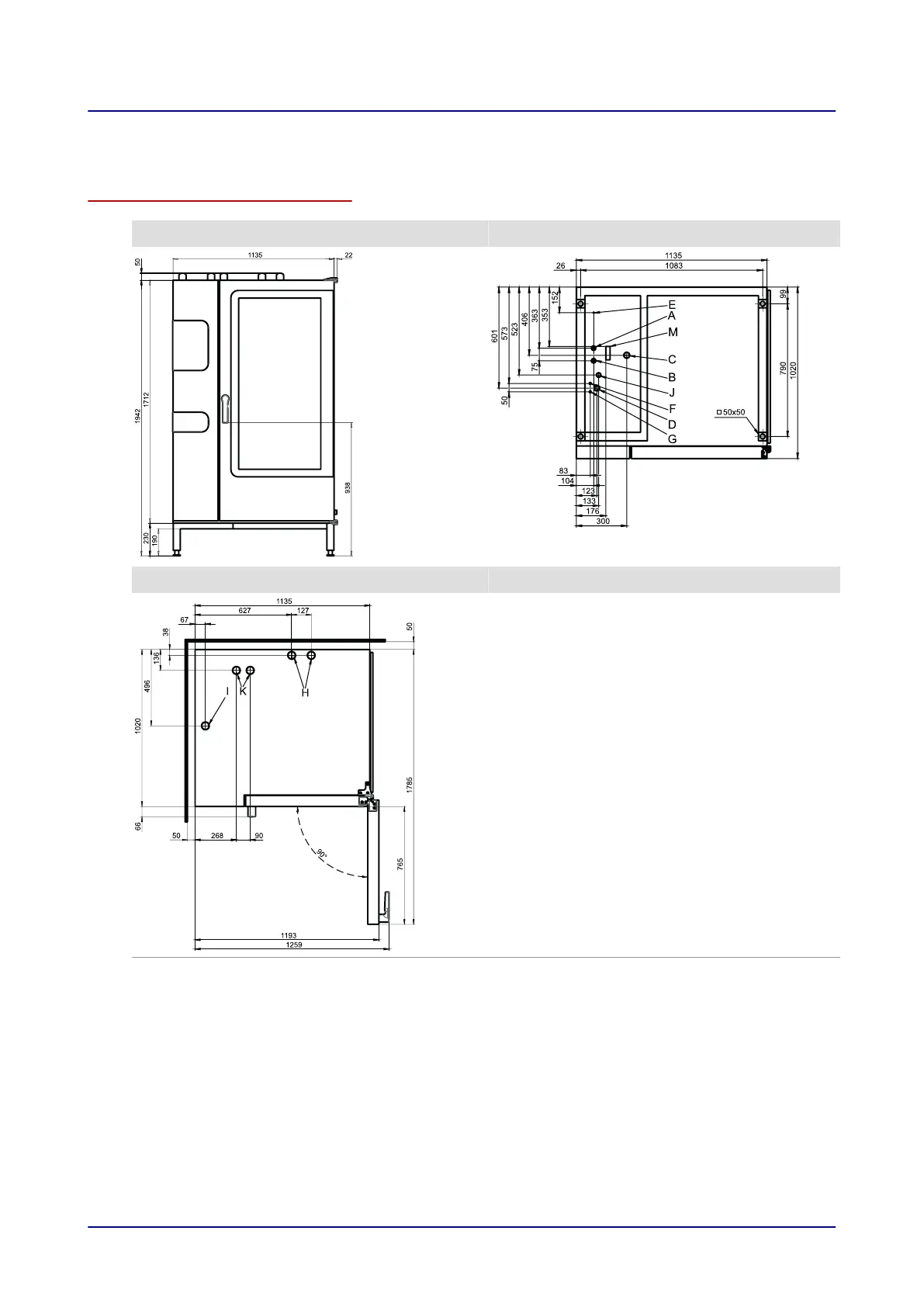

Dimensions and connection points for C4 20.20 GS (right-hinged appliance door)
Front view Connection positions in appliance floor
View from above with wall clearances Meaning of labelled elements
A Water connection Soft water G 3/4''
B Water connection Hard water G 3/4''
C Drain connection DN50
D Electrical connection
E Equipotential bonding
F Rinse-aid connection (optional)
G Cleaning-agent connection (optional)
H
Air vent Æ 50 [mm]
I
Ventilation port Æ 50 [mm]
J Gas supply
K Exhaust outlet (convection heater)
M Safety overflow 80 x 25 [mm]
10 Dimensional drawings and connection points
Installation manual 177
