6.4.2 Layout of the fully automatic oven cleaning system
Cleaning agent and rinse aid
Use only the cleaning fluids specified here to clean the combi steamer.
NOTICE Damage caused as a result of improper use of cleaning fluids will invalidate any warranty
claims.
The following table shows the approved cleaning agent and rinse aid:
Name Product Label color
Cleaning agents ConvoClean forte / new red
Rinse aid ConvoCare green

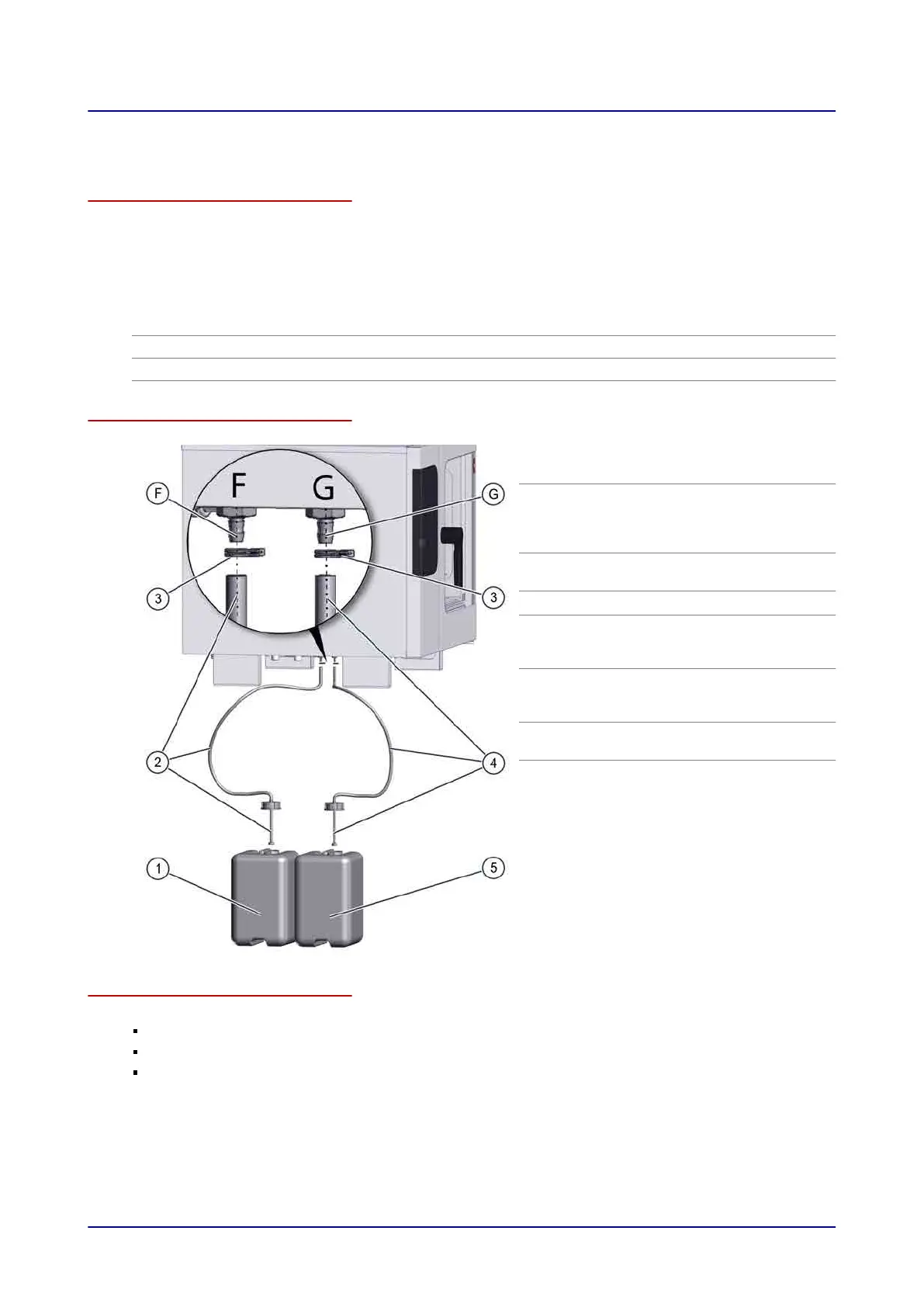

Layout of the fully automatic oven cleaning using connected cannisters
Item Name Color cod‐
ing
1
Canister containing
ConvoCare rinse aid
(ready-to-use solution
in defined mixing ratio)
green (la‐
bel)
2
Delivery tube for rinse-
aid suction nozzle
green (tube)
3
D10 wire clip -
4
Extractor tube for
cleaning-agent suction
nozzle
red (tube)
5
Canister containing
ConvoClean new or
ConvoClean forte
red (label)
F
Appliance connector for
rinse-aid supply
green (let‐
tering)
G
Appliance connector for
cleaning-agent supply
red (letter‐
ing)
Installation location for the cleaning-agent and rinse-aid canisters
Install the canisters as follows:
The canisters should be located for easy access beside the appliance on a flat surface.
The canisters must not sit above the level of the surface on which the appliance stands.
The level of the surface on which the canister sits must not lie more than 1 meter below the tube
connections on the appliance.
6 Installation
Installation manual 97
