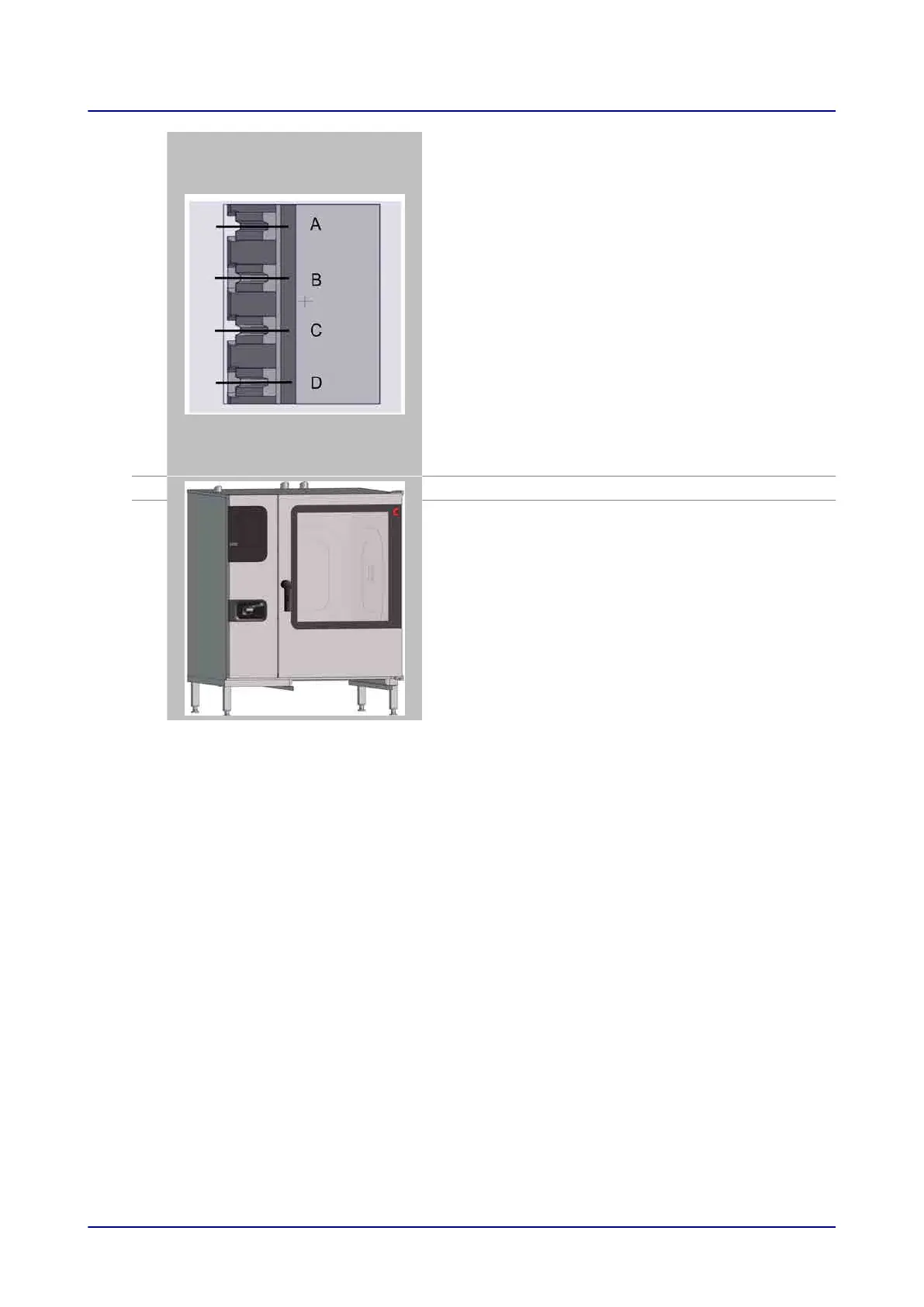

Connect the terminals (A), (B), (C) and (D) of terminal
block -X37 (2) to the energy optimization system.
Terminal Combi steamer
Energy optimiza‐
tion system
A
Phase, when combi
steamer is on
-
B
Phase, when combi
steamer heating ele‐
ment is on
Switching relay
C
Heater enable, B and
C must be connected
by switching relay in
the energy optimiza‐
tion system in order to
enable heating
Switching relay
D
Neutral -
5.
Refit the side panel on the combi steamer.
6.
Put the combi steamer and energy optimization system
into operation.
