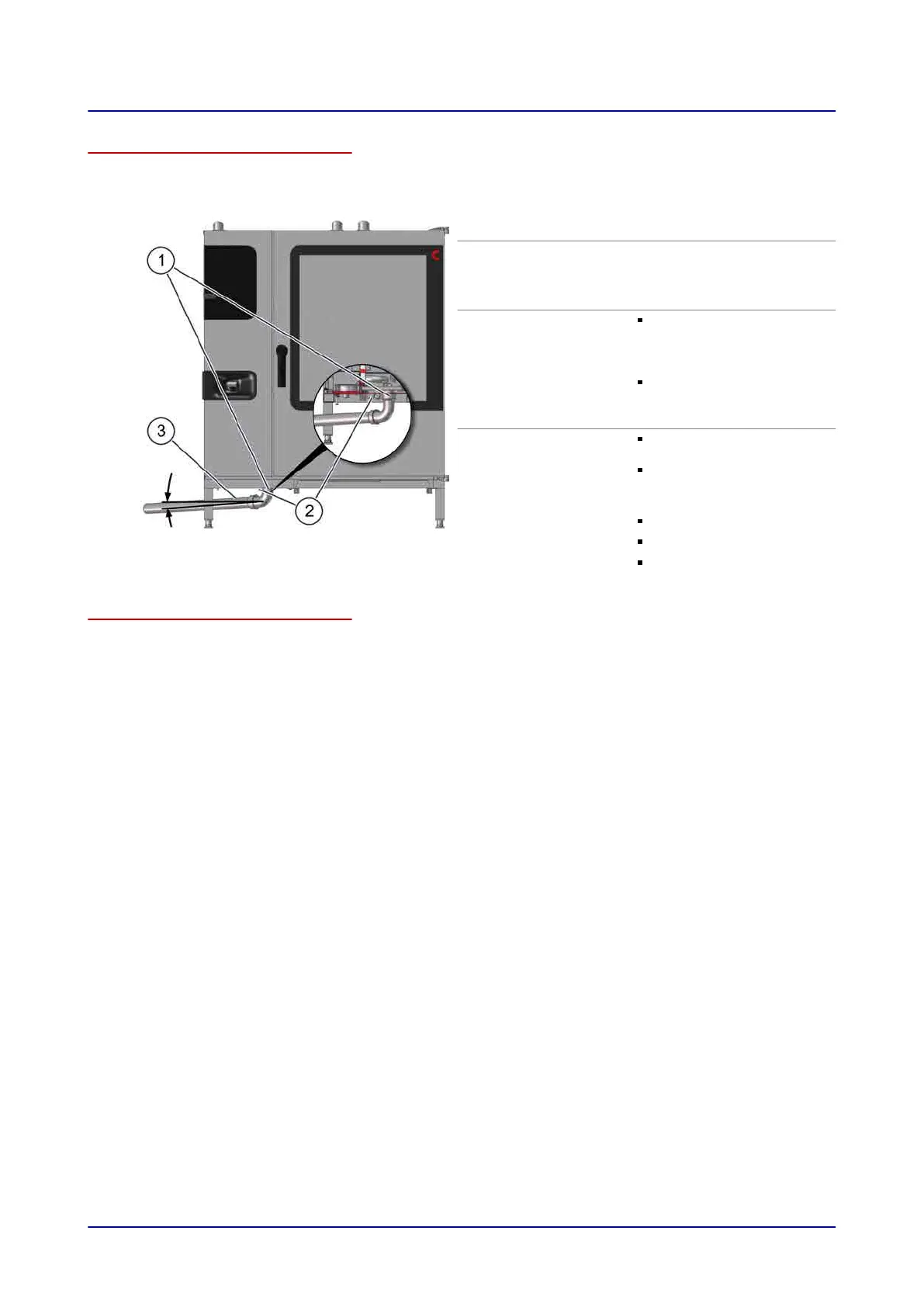

Connection diagram (floor-standing units)
The following illustration shows the wastewater connections to a size 12.20 combi steamer as an ex‐
ample of all floor-standing models:
Item Name Function
1
Appliance drain On the appliance floor, con‐
nection point C, see '
Con‐
nection diagrams
on page
134'
2
Safety overflow
On the appliance floor,
connection point M, see
'
Connection diagrams
on page 134'
Used to drain away wa‐
ter in the event of a fault
(blockage).
3
Drain pipe DN
50
Minimum internal diam‐
eter = 46 mm
Min. slope min. 3.5%
(2°)
Drain options:
Fixed connection
Open tank
Gully
Connecting the appliance to the drain
Connect the appliance as shown in the connection diagram. For table-top units, use the flat bend sup‐
plied.
6 Installation
Installation manual 94
