1/12 23
Main
menu
screen
Select
drink
Size and
option screen
2x size
Pitcher on pad
Verify weight
within max.
time period
Energize solenoid
valve & product
pump
Verify weight
within max.
time period
De-energize
solenoid valve &
product pump
Verify weight
within time
period
When selected
energize
yogurt
solenoid valve
and product
pump
Verify weight
within max.
time period
De-energize
solenoid valve &
product pump
Energize
shaver motor
Energize blender motor for
predetermined amount of
time based on selections

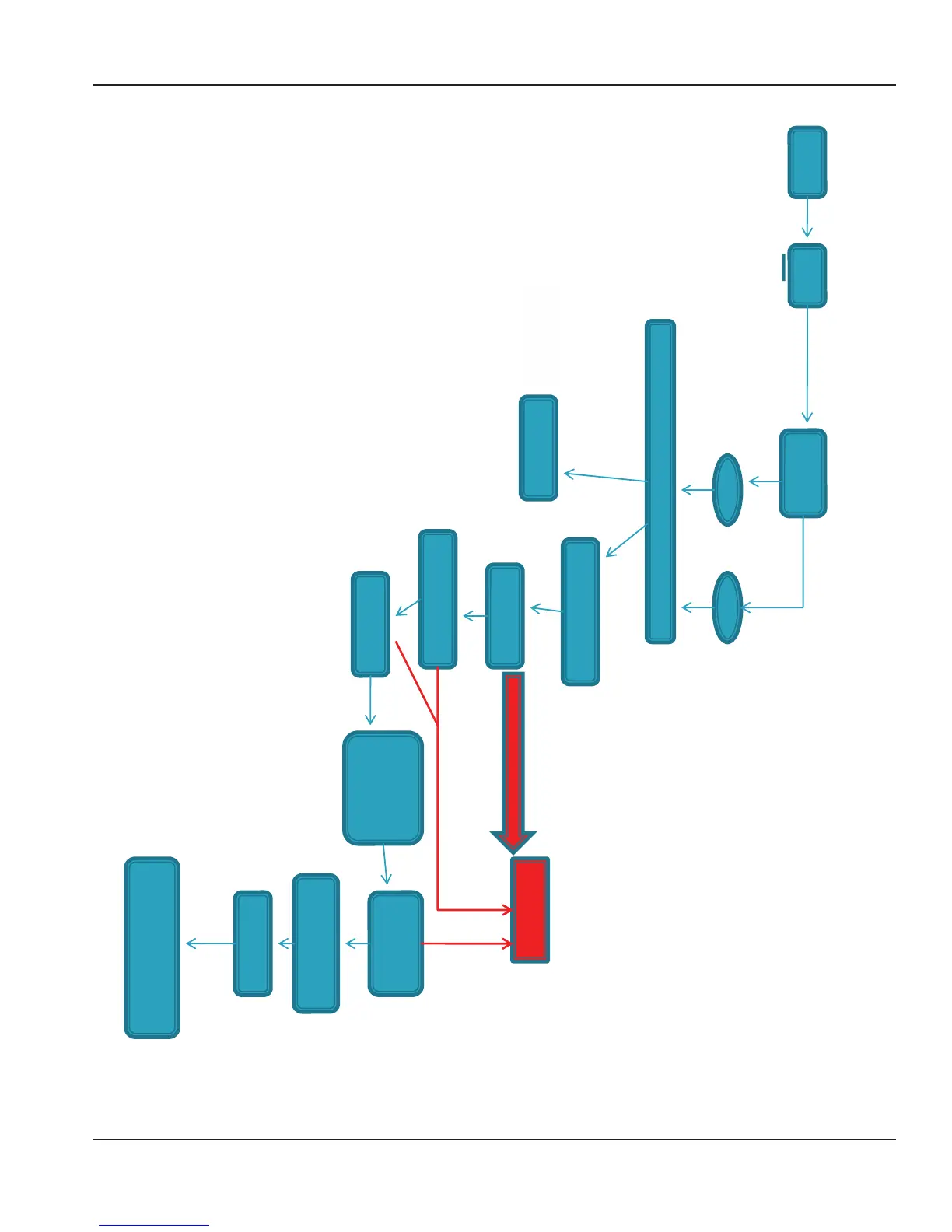

Making a Drink Energized Component Flow Chart
Errors and Corrections
Reselect
drink type
i n c o r r e c t
Adjust banana weight to 3 oz
incorrect
Incorrect
Error out of
product
4
