Manitowoc Multiplex Ms-8 User Manual

1/12 53
1
2
3
4
5
6
7
8
9
10
11

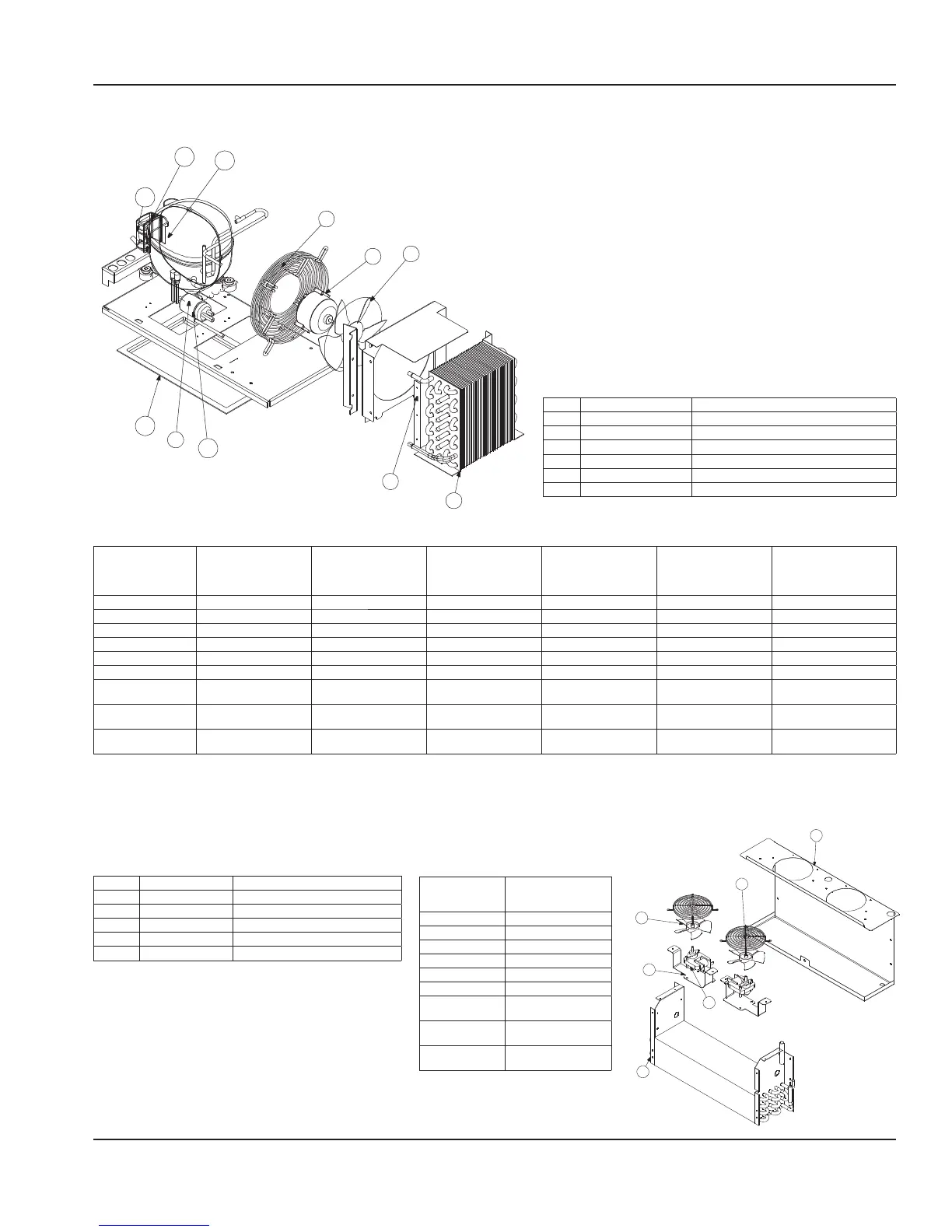

Condensing Unit Assembly
1
2
3
4
5
6
Evaporator Coil Assembly
Parts Common To All Models
Key
Part Number
Description
4 2160020 Guard, Fan, 7.25
6 3516457 Blade, Fan, 7.25”
7 3517381 Coil, Cond, Smoothie
8 026-C58-0001 Shroud 1/5 HP Cond. Coil
9 3516322 Filter Dryer, (2) Inlet .25”
11 039-231-0032 Pan, Condensate, Sm
Model Speci c Parts
Model
Key 2
Motor, Fan
MS-8-1H
2162691
MS-8-AH
2162692
MS-8-BH
2162692
MS-8-CH
2162692
MS-8-EH
2162692
MS-8-FH
2162691
MS000A01 &
MS000A02
2162692
MS000A03 &
MS000A04
2162692
MS000A05 &
MS000A06
2162691
Parts Common To All Models
Key
Part Number
Description
1 3517382 Coil, Evap, Smoothie
3 372-A9Y-0002 Bracket, Fan, Evap
4 3517383 Blade, Fan, 4.5”, CW
5 2160022 Guard, Fan, 4.7”
6 019-CD1-0000 Body, Evap. Coil
Model Speci c Parts
Model
Key 1
Comp, Cover, Small
Danfoss
Key 2
Comp, Relay, Ovld,
TF4CLX
Key 3
Capacitor, Start,
280MFD
Key 5
Motor, Fan
Key 10
Compressor
-
Tubing, Cap, 0.044ID
x 144”
MS-8-1H
3516443 3516446 2194787 2162717 3526997 0074057
MS-8-AH
3516460 3516452 3516451 2162720 3526994 0074057
MS-8-BH
- - - 2162720 3527071 0074057
MS-8-CH
- - - 2162720 3526988 3547588 (.036”ID)
MS-8-EH
3516460 3516452 3516451 2162720 3526994 0074057
MS-8-FH
3516443 3516446 2194787 2162717 3526997 0074057
MS000A01 &
MS000A02
3516460 3516452 3516451 2162720 3526994 0074057
MS000A03 &
MS000A04
3516460 3516452 3516451 2162720 3526994 0074057
MS000A05 &
MS000A06
3516443 3516446 2194787 2162717 3526997 0074057
