Component Identifi cation
General System Overview
The Blended Ice Machine is a self-contained dispensing
unit that allows the operator to make fl avor combinations
of blended ice drinks. It contains product fl avoring in a
reach-in enclosure, a refrigeration system and an ice
shaving machine.
The operator controls and accesses the unit using
a lighted touch screen. Icons on the Drink Selection
screen represent the primary fl avor combinations for
the blended ice drinks. A second screen provides drink
size options (S, M, L) and ingredient options, such as
“no yogurt.” Menu changes and additions are uploaded
using a USB mass storage device.
On-screen instructions also include operator procedures
for cleaning/sanitizing, checking inventory, replacing
product bags, selecting drink sizes and manually
preparing drinks. Managers and technicians have
access to menu/software updates, diagnostics and
other service screens.
Part Description Number
Cleaning Kit 000-BIC-0008
Cleaning Pitcher 3239631
Cup Dispenser 1706175
Gasket, Door 1706208
Gasket, Whipped Cream Door 1706209
Hinge Kit RF000066
Ice Hopper Lid VMP00133
Lid Dispenser 1706142
Product Bin 1706268
Pull Out Tray 076-CDZ-0000
Syrup Rail 1706194
Syrup Rail Divider 1706195
Whipped Cream Door 000-187-0016

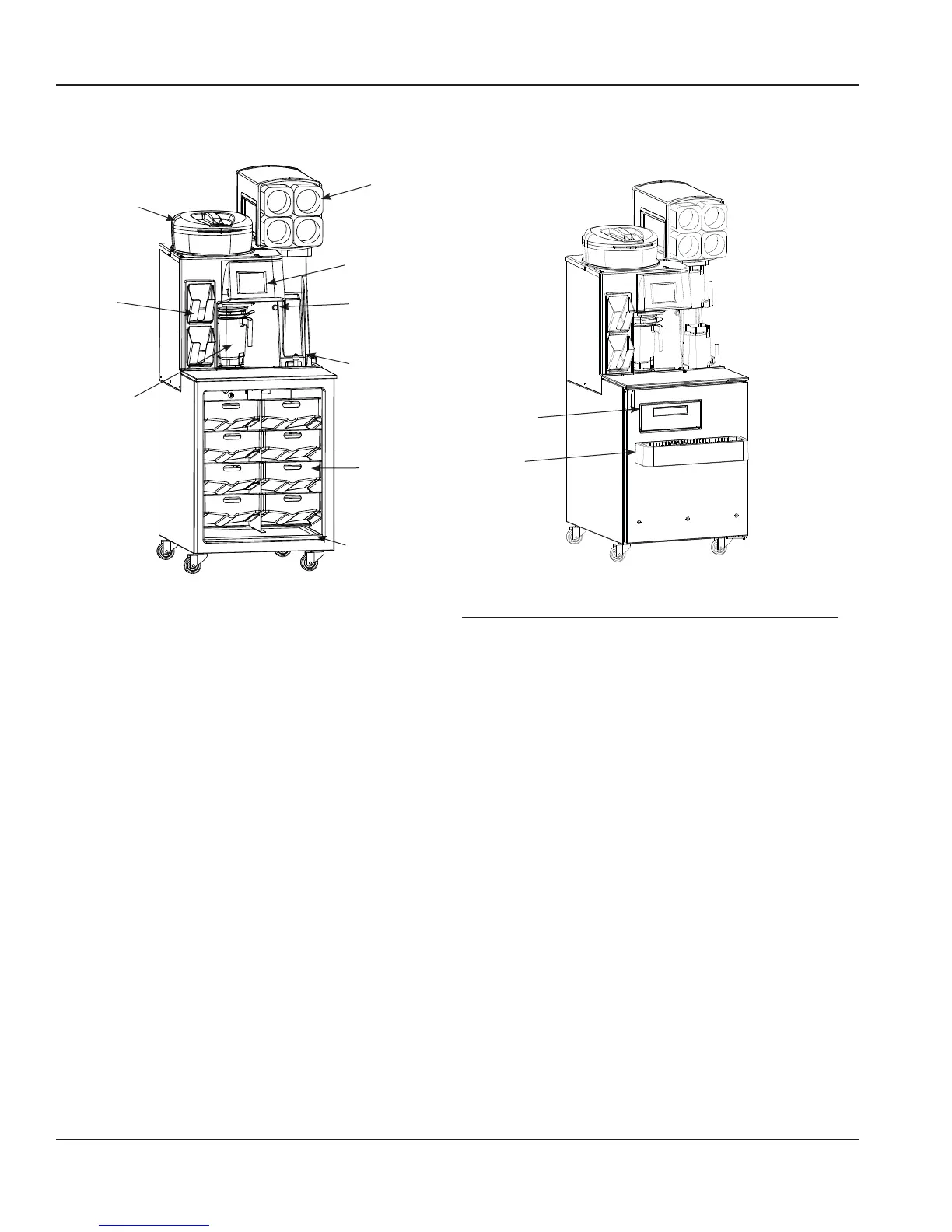

Cup
Dispenser
(1706175)
Touch
Screen
Manual Rinse
Button
Blender Rinse
Location
Product
Bins
(1706268)
Pull Out Tray
(076-CDZ-0000)
Blender Fill
Pitcher
Lid
Dispenser
(1706142)
Ice Hopper Lid
(VMP00133)
Whipped
Cream Door
(000-187-0016)
Syrup Rail
(1706194)
Syrup Rail Divider
(1706195)
