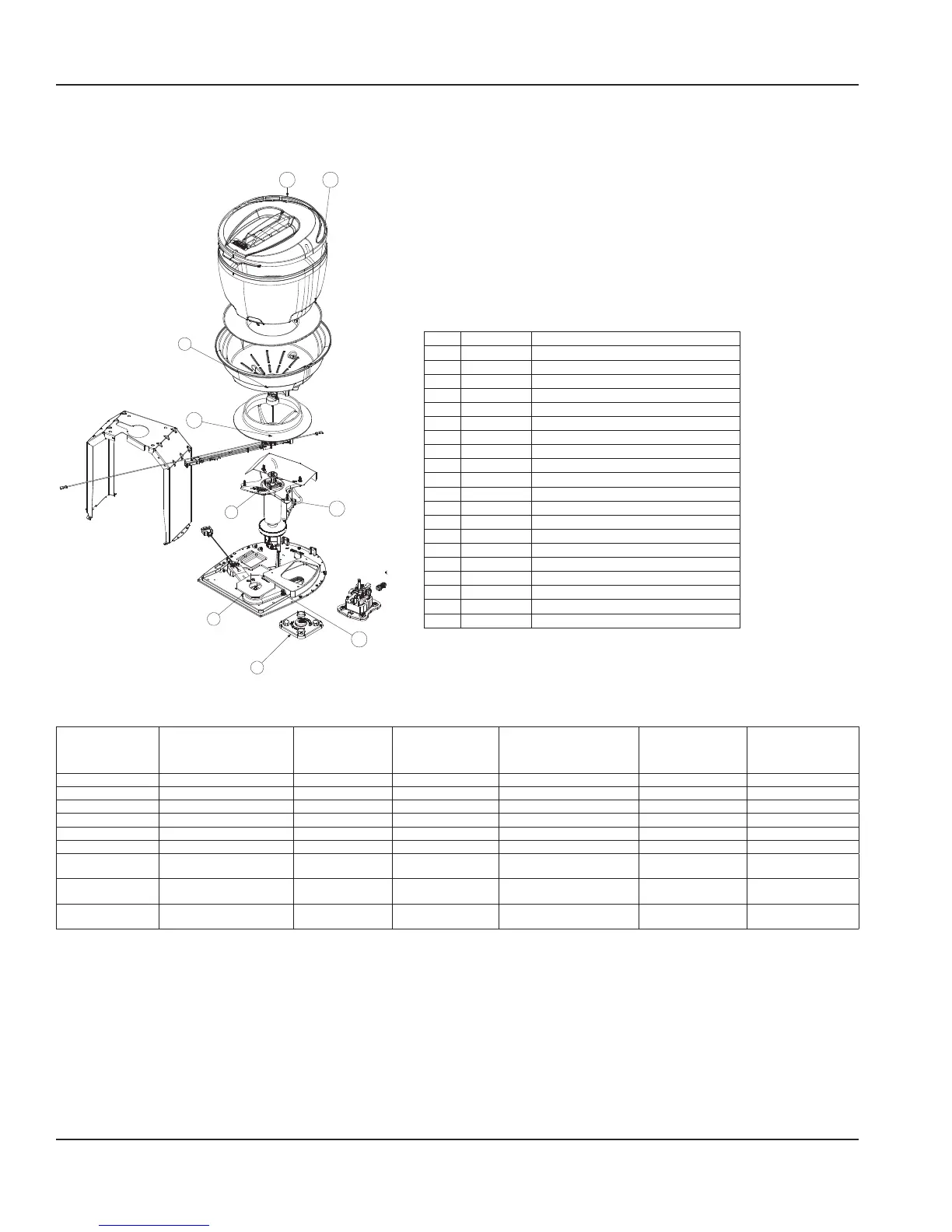

VitaMix Assembly
1
2
3
5
7
6
10
8
9
Model Speci c Parts
Model
Key 8
Shaver Blade Kit (with
shims)
-
Shim, 0.007”
-
Assembly, Blade,
Double
-
Blending Container (W/
blades)
-
Blending Container
Only
-
Circuit Breaker
MS-8-1H
VMP00125
--
3239676 VMP00139 VMP00112
MS-8-AH
VMP00125
--
3237674 VMP00151 VMP00145
MS-8-BH -
VMP00149 VMP00150 3239670 VMP00151 VMP00145
MS-8-CH -
VMP00149 VMP00150 3239670 VMP00151 VMP00145
MS-8-EH -
VMP00149 VMP00150 3239670 VMP00151 VMP00145
MS-8-FH
VMP00125
--
3239676 VMP00139 VMP00112
MS000A01 &
MS000A02
---
3239681
-
VMP00145
MS000A03 &
MS000A04
---
3239681
-
VMP00145
MS000A05 &
MS000A06
VMP00125
--
3239681
-
VMP00112
Parts Common To All Models
Key
Part Number
Description
1 VMP00133 Ice Bin Lid
2 VMP00106 PBS Ice Shelf
3 VMP00121 Power Cord
4 VMP00122 Control Board
5 VMP00124 Drive Belt, Blender
6 VMP00130 PBS Container Pad
7 VMP00153 Container Base Plate
9 VMP00134 Safety Interlock Push Rod
10 VMP00107 Paddle Nut
- VMP00114 Beam
- VMP00138 Cable, Beam to VM
- VMP00135 Chain Acct Repair Kit
- VMP00131 Container Wrench (included in VMP00135)
- VMP00123 Drive Belt, Shaver
- VMP00129 Drive Socket
- VMP00158 Ice Bin Gasket
- VMP00109 Ice Bin Grommet 3 Pack
- 3437393 Insulation, Bowl, VM, BIM
- VMP00136 PBS Centering Tool
- VMP00113 Safety Switch/Recti er Assembly
