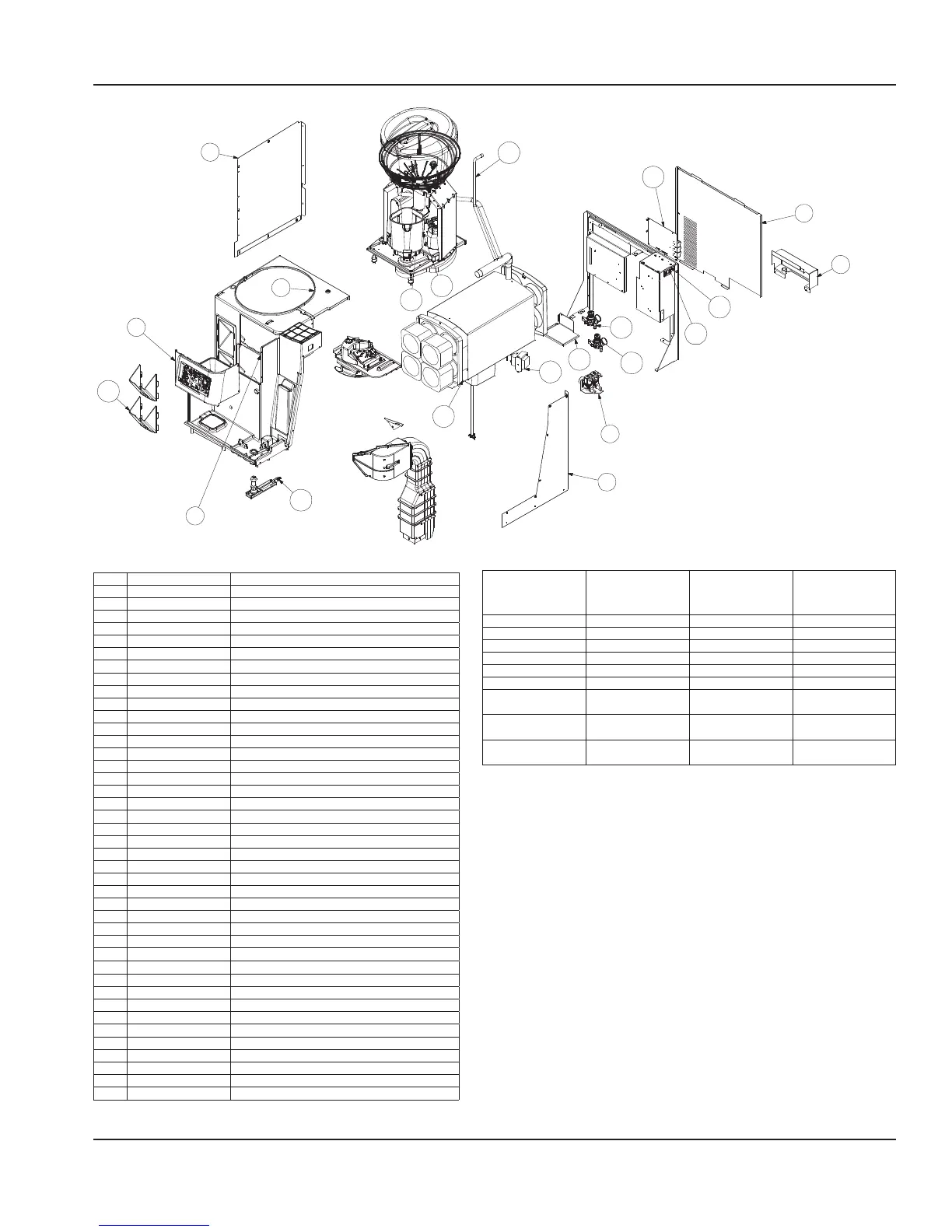

Top Assembly
Parts Common To All Models
Key Part Number Description
1 2195110 Board, Control, Smoothie
2 359-CCZ-0001 Panel, Upper, Back
3 265-BZZ-0001 Cover, Back, Inlet
4 1706262 Gasket, Switch, BIDM
5 2194400 Switch, Rocker, 20A, 6000
6 3547784 Regulator, Pressure, Water
7 3547785 Regulator, Water, CO2
8 3547828 Valve, Solenoid, Water, Double
9 359-CCJ-0003 Panel, Right, Upper
10 027-CCZ-0002 Cover, Electric Box, Upper
12 1706126 Bracket, Pitcher, Rinse
13 3547773 Fitting, 1/8” MPT to 1/4” PTC
14 1706159 Panel, Front, Top
15 1706142 Bracket, Lid Dispenser
16 2195107 Assembly, Display, UIB
17 1706145 Cover, Ice Bin, Top
18 359-CCJ-0002 Panel, Side, Outer, Side
19 1706221 Gasket, Blender, Outlet
20 9324078 Mount, Sandwich, 1/4-20
21 1706218 Tube, Drain, Dipped
- 9324095 Clamp, Oeticker, 3/8”
- 9324097 Clamp, Oetiker, 1/2”
- 9324098 Clamp, Oetiker, Hose, Drain
- 9324099 Clamp, Oetiker, Hose, Rinse
- 9324100 Clamp, Oetiker, Hose, Vitamix
- 3547832 Coupling, 1/4 Stem x 1/4 Barb
- 3547779 Coupling, 1/4 Stem x 5/16 Barb
- 1706175 Cup Dispenser
- 3237378 Fitting, 1/4” PTC, WYE
- 3547788 Fitting, 3/4”Hose to 3/8”PTC
- 2195313
Fuse, 5A, HT, Ceramic, I/O Board
- 1706183 Gasket, Nozzle Block
- 3547765 Nozzle, Spray, Rinse Area
- 9321035 Nut, 0 25-20
- 9324084 Nut, J-Style, Clip-On
- 2195125 Probe, ermistor, Cab, BIDM
- 2195126 Probe, ermistor, Prod, BIDM
- 2162731 Switch, Manual Rinse
- 3547769 Tube, 1/4 Polyethylene
- 1702022 Tubing, 3/8OD x 1/4ID, Clr Blue
- 1702023 Tubing, 1/2OD, clear
Model Speci c Parts
Model
Key 11
Transformer
-
Splash Guard, Side
-
Bracket, Holder, Straw,
BIM
MS-8-1H 2195105 000-BIC-001G -
MS-8-AH 2195102 000-BIC-001G -
MS-8-BH 2195102 272-BZZ-0002 -
MS-8-CH 2195102 272-BZZ-0002 -
MS-8-EH 2195102 272-BZZ-0002 -
MS-8-
FH
2195105 000-BIC-001G -
MS000A01 &
MS000A02
2195102 272-BZZ-0002 -
MS000A03 &
MS000A04
2195102 272-BZZ-0002
312-CCQ-000Q
MS000A05 &
MS000A06
2195105 000-BIC-001G -
To Next Page
