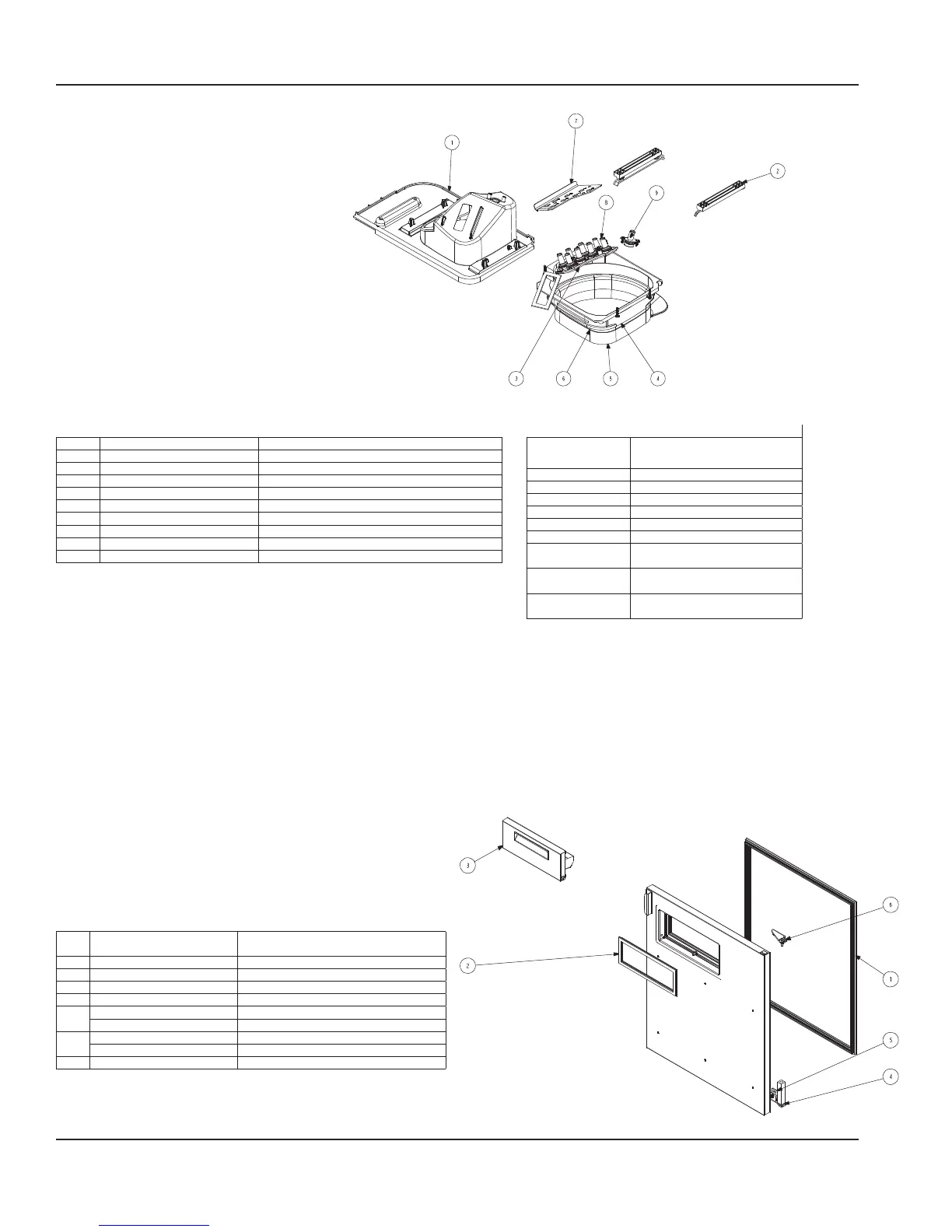

Duct Outlet Assembly
Door Assembly
Parts Common To All Models
Key Part Number Description
1 1706148 Cover, Dispense Manifold
2 1706202 Rail, Retainer, Splash
3 1706166 Block, Tube
4 1706281 Bracket, Splash, Pitcher Outer
5 1706284 Bracket, Splash, Inner, Lower
6 1706200 Bracket, Splash, Inner, Upper
7 270-CCQ-0006 Bracket, Dispenser Head
9 372-CCQ-0009 Plate, Ambient H20
- 000-BIC-0010-S Splash Shield Assembly
Key Part Number
Common To All Models
Description
1 1706208 Gasket, Dr, Smoothie
2 1706209 Gasket Door Access
3 000-187-0016 Door, Whip Cream
4 3237516 Hinge, Concealed Cart., 65INLBS
5 3234226 Bracket, Hinge Bottom RH
3234227 Bracket, Hinge Bottom LH
6 3234228 Bracket, Pivot, Top RH
3234229 Bracket, Pivot, Top LH
- RF000066 Hinge Kit
Model Speci c Parts
Model
Key 8
Valve, Dispense Oulet, LMS
MS-8-1H 1706172
MS-8-AH 1706172
MS-8-BH 1706172
MS-8-CH 1706172
MS-8-EH 1706172
MS-8-
FH
1706370
MS000A01 &
MS000A02
1706172
MS000A03 &
MS000A04
1706172
MS000A05 &
MS000A06
1706172
