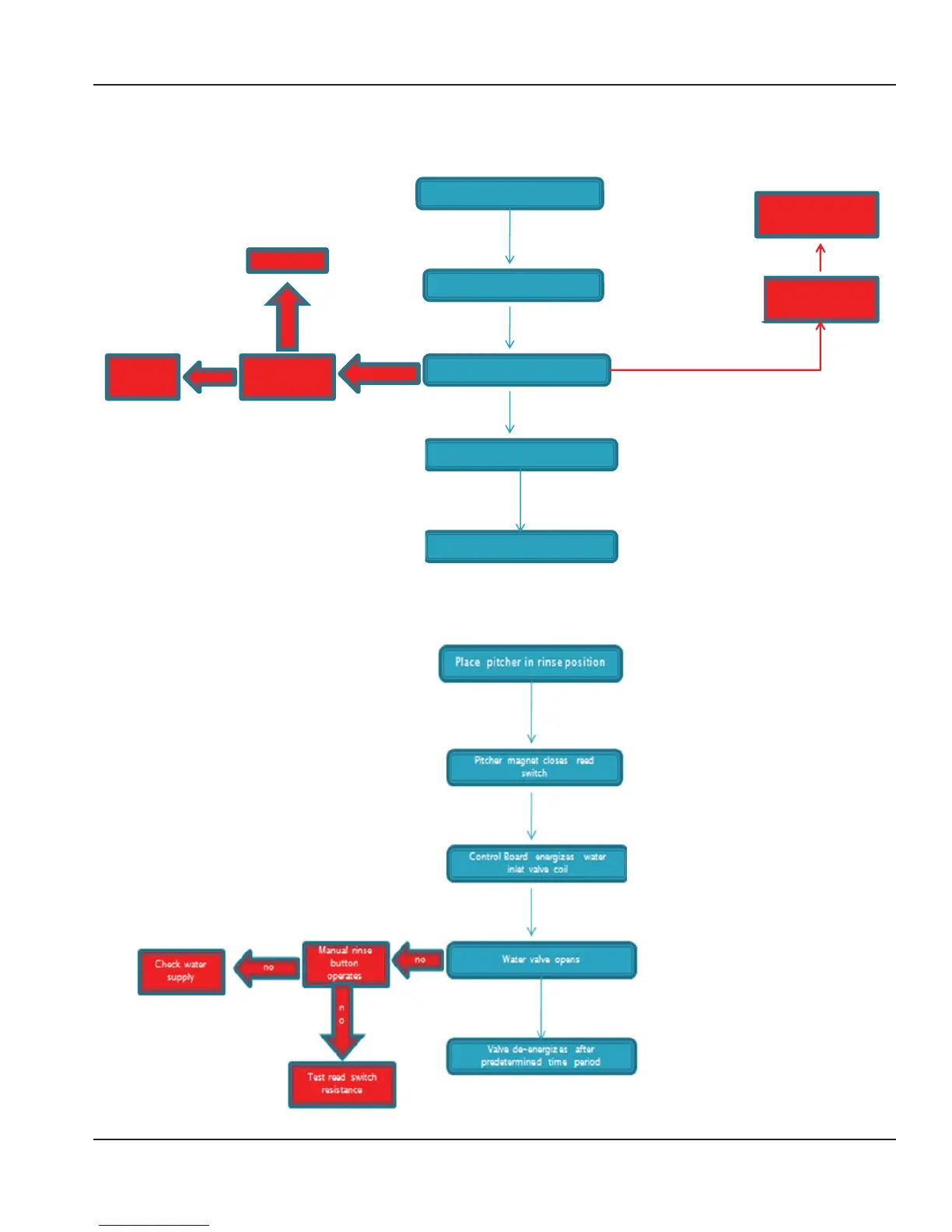

Rinsing Energized Flow Chart
and errors / corrections
Place pitcher in rinse position
Pitcher magnet closes reed
switch
Control Board energizes water
inlet valve coil
Water valve opens
Valve de-energizes after
predetermined time period
Switch doesn’t close
Try a different
pitcher
Replace magnet or
pitcher
Check for
power at relay
board
Replace
relay brd
no
no
no
Manual rinse
button
operates
n
o
Test reed switch
resistance
y
e
s
Replace wire
no
Check water
supply
