LUBRICATION PROCEDURE AND CHARTS NBT30H-2 OPERATOR MANUAL
5-8
Published 03-18-2019 Control # 582-04
Outrigger Beam Lubrication
Recommended lubricant is EP-3MG grease.
1. Fully extend and set the outriggers. Refer to
(Figure 5-3.)
2. Apply grease to all wear pads and contact surfaces at
the side and bottom of all beam sections and lower
surface of the stabilizer/jacks with a suitable brush or
putty knife.
3. Extend and retract the outriggers several times until the
grease is evenly spread.
4. Repeat as necessary.

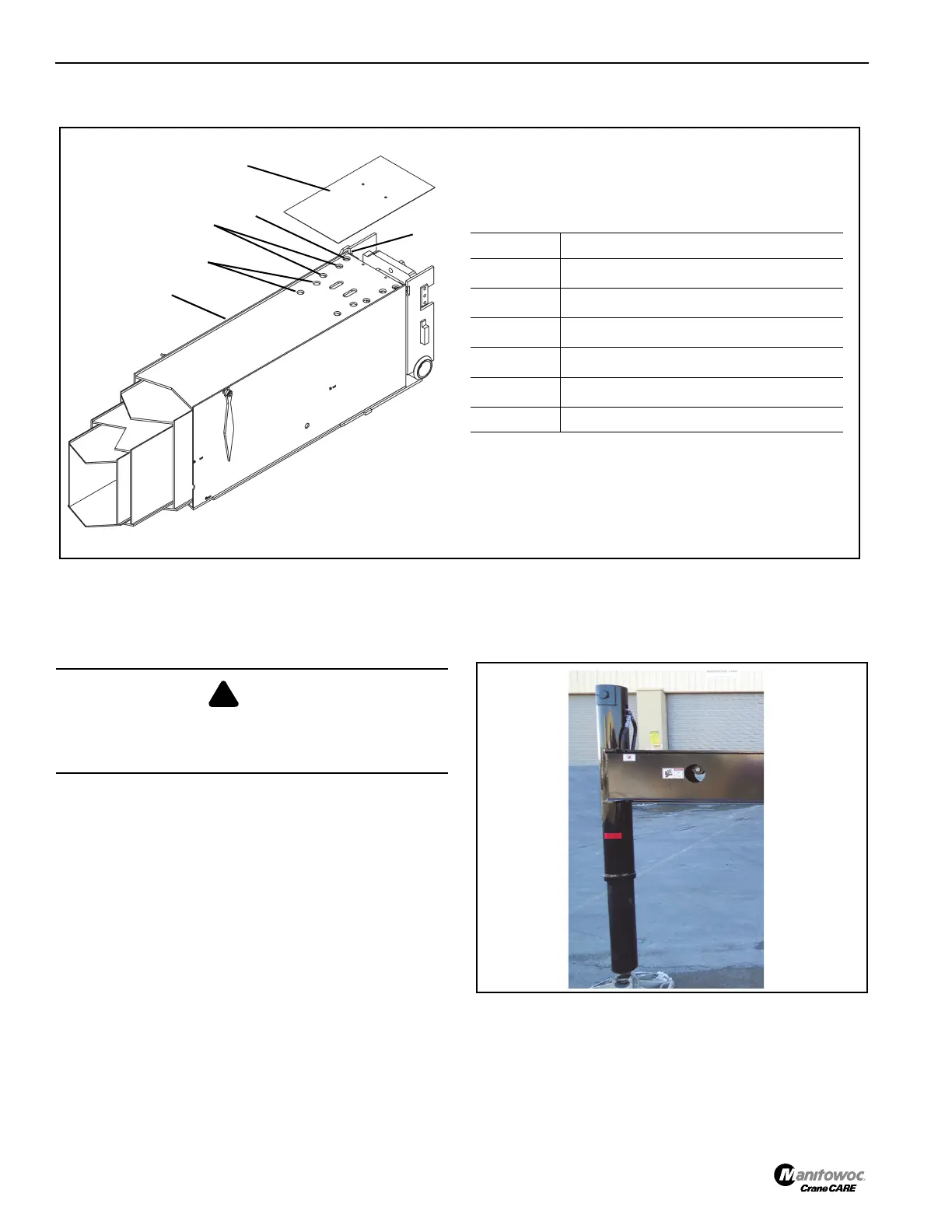

1
3
FIGURE 5-2
2
4
5
6
Item Description
1
1
st
Boom Section
2
Access Holes for 4
th
Section Wear Pad
3
Access Holes for 3
rd
Section Wear Pad
4
Access Holes for 2
nd
Section Wear Pad
5
2
nd
Section Wear Pad
6 Access Plate
DANGER
Do not, under any circumstances, work at an elevated
height without using proper fall protection as required by
local, state or federal regulations.
